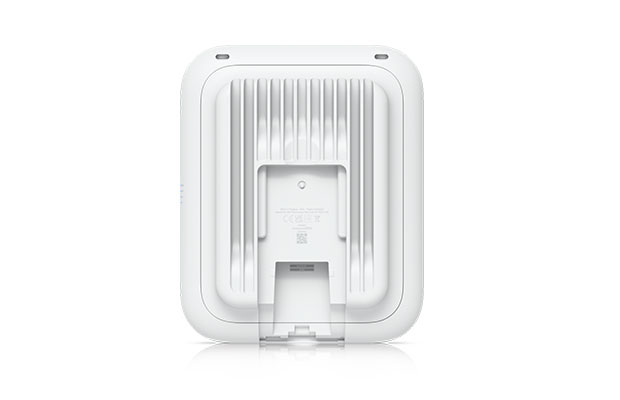

UniFi U7-Outdoor All-weather WiFi 7 Access Point

~~$ 300.00~~ $ 289.00

Part Number: U7-Outdoor
All-weather WiFi 7 AP with 4 spatial streams, an integrated directional super antenna, and versatile mounting options.
Warranty: 1-year on part.

Order Now

Specification

Part Number: U7-Outdoor
Overview
Dimensions: 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
WiFi Standard: WiFi 7
Spatial Streams: 4
Coverage Area: 465 m² (5,000 ft²)
Max. Client Count: 250+
Uplink: 2.5 GbE
Mounting: Wall, Pole (Mounts Included)
Weatherproofing: IPX6
Power Method: PoE+
Performance
MIMO
5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
5 GHz: Directional internal: 12.5 dBi, 45° x 45°; External omni: 4 dBi, 360° x 30°
2.4 GHz: Directional internal: 8 dBi, 90° x 90°; External omni: 3 dBi, 360° x 30°
Max. TX Power
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Hardware
Max. Power Consumption: 19W
Supported Voltage Range: 42.5—57V DC
Networking Interface: (1) 1/2.5 GbE RJ45 port
Weight: 1.2 kg (2.6 lb)
Wind Loading: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Pole Mount Diameter: 1–2.36" (25–60 mm)
Antennas
(1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna
Antenna beamwidth
5 GHz: 45°
2.4 GHz: 90°
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Polycarbonate, SGCC steel
LEDs
System
(1) Power: White/Blue
(1) System: White/Blue
(4) Mesh Signal: Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
NDAA Compliant: ✓
Certifications: CE, FCC, IC, Anatel
Operating Frequency
US/CA:
2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
Worldwide:
2400 - 2483.5 MHz
5150 - 5725 MHz
Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Software
Application Requirements
UniFi Network
Version 8.2.93 and later
Weight: 1.2 kg (2.6 lb).
