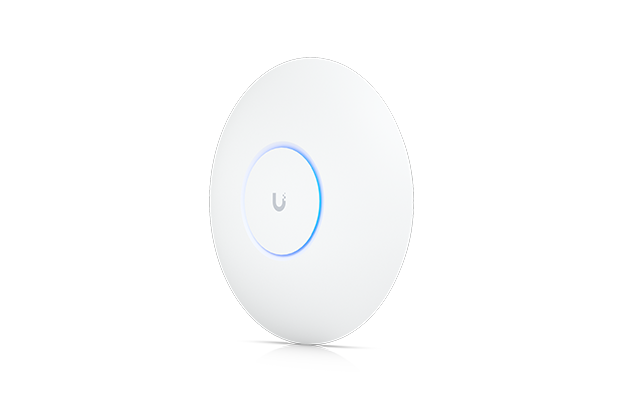

UBIQUITI Unifi U6-Pro WiFi 6 Access Point

~~$ 210.00~~ $ 199.00

Part Number: U6-Pro
350+ connected devices
WiFi6 (4x4 MIMO)
Powered using PoE
2.4 GHz: 22 dBm, 5 GHz: 26 dBm
Warranty: 1 Year on part.

Order Now

Specification

Part Number: U6-Pro
Mechanical
Dimensions: Ø197 x 35 mm (Ø7.76 x 1.38")
Weight Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb)
Enclosure material: Polycarbonate
Mount material: Stainless steel (SUS304)
Weatherproofing: IP54
Hardware
Networking interface: (1) GbE RJ45 port
Management interface: Ethernet
Bluetooth
Power method: PoE
Power supply: UniFi PoE switch
48V, 0.5A PoE adapter (not included)
Supported voltage range 44—57V DC
Max. power consumption: 13W
Max. TX power
2.4 GHz: 22 dBm
5 GHz: 26 dBm
MIMO
2.4 GHz: 2 x 2 (UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
Throughput rate
2.4 GHz: 573.5 Mbps
5 GHz: 4.8 Gbps
Antenna gain
2.4 GHz : 4 dBi
5 GHz: 6 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall/ceiling (Included)
Operating temperature: -30 to 60° C (-22 to 140° F)
Operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11a/b/g
WiFi: 4/WiFi 5/WiFi 6
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 350+
Zero wait DFS: Yes*
*Supported with upcoming firmware versions
Supported Data Rates:
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network: Version 6.1.56 and later
Warranty: 1 Year on part.
