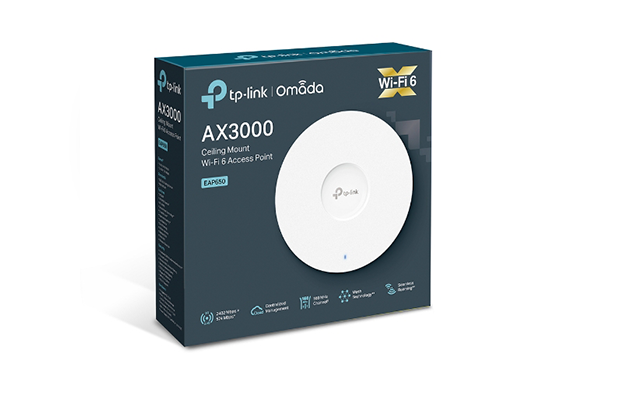

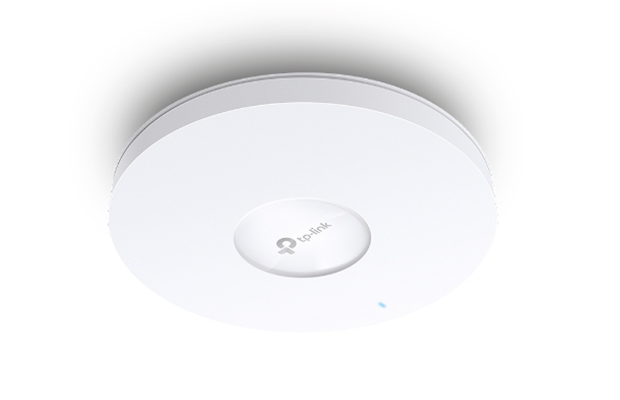

TP-LINK EAP650 AX3000 Ceiling Mount WiFi 6 Access Point

~~$ 120.00~~ $ 115.00

Part Number: EAP650
HARDWARE FEATURES
Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button: Reset
Power Supply: 802.3at PoE, 12V DC (Power Adapter included) (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC), 48V Passive PoE
Power Consumption: EU: 13.5 W, US: 14.7 W
Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type: Internal Omni, 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included), Junction Box Mounting
Warranty 2 years on part

Order Now

Specification

Part Number: EAP650
HARDWARE FEATURES
Interface: 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button: Reset
Power Supply: 802.3at PoE, 12V DC (Power Adapter included) (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC), 48V Passive PoE
Power Consumption: EU: 13.5 W, US: 14.7 W
Dimensions ( W x D x H ): 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type: Internal Omni, 2.4 GHz: 2× 4 dBi, 5 GHz: 2× 5 dBi
Mounting: Ceiling /Wall Mounting (Kits included), Junction Box Mounting
WIRELESS FEATURES
Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
Frequency: 2.4 GHz and 5 GHz
Signal Rate: 5 GHz: Up to 2402 Mbps, 2.4 GHz: Up to 574 Mbps
Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, HE160 (160 MHz Bandwidth)‡, Seamless Roaming §,Omada Mesh§, Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication§, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power: CE: <20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, Band1 & Band2, EIRP), <30 dBm(5 GHz, Band3, EIRP), FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz)
MANAGEMENT
Omada App: Yes
Centralized Management: Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller, Omada Cloud-Based Controller
Cloud Access: Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Local/Remote Syslog
SSH: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification: CE, FCC, RoHS
Package Contents: EAP650: Power Adapter, Ceiling/Wall Mounting Kits, Installation Guide
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment: Operating Temperature: 0–40 ℃ (32–104 ℉), Storage Temperature: -40–70 ℃ (-40–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing
Warranty 2 years on part
