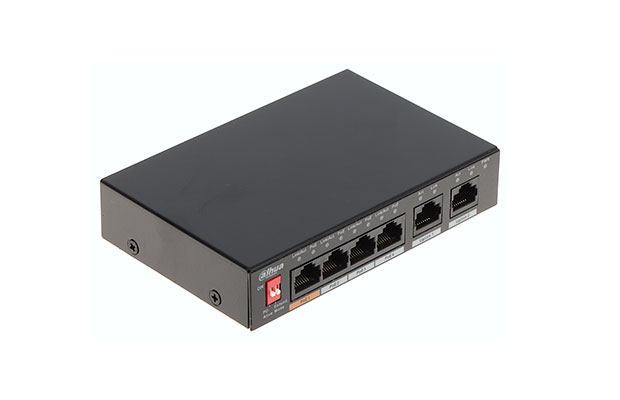

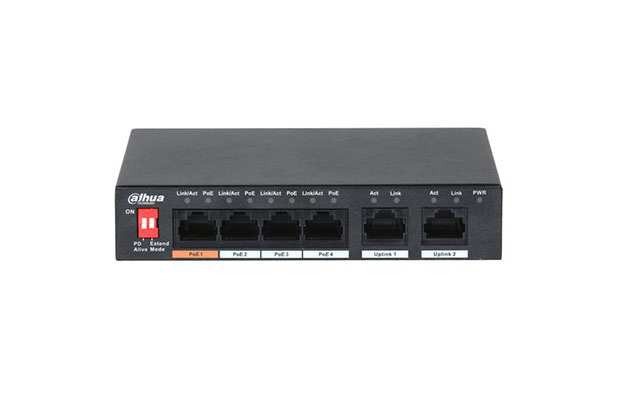

Dahua PFS3006-4ET-60 6-Port 10/100Mbps Unmanaged Desktop Switch with 4 PoE Ports

$ 45.00 $ 43.00
  • Part Number: DH-PFS3006-4ET-60
  • Layer two commercial switch
  • Supports IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x standards
  • MDI/MDIX self-adaptation
  • RJ-45 port supports 10/100 Mbps self-adaptation, and confirms to 802.3at, and 802.3af power supply standards
  • Port 1 supports Hi-PoE 60W power supply
  • 250 m PoE power supply
  • Wall mounting and mechanical anti-theft
  • 53V DC power supply
  • Supports PoE watchdog
  • Warranty: 2-years on part.

Specification

  • Part Number: DH-PFS3006-4ET-60
  • Hardware
  • Ethernet Port: 4
  • Ethernet Port Rate: 100 Mbps
  • Number of Business Card Slots
  • Port 1–4: 4 × RJ-45 10/100 M (PoE)
  • Port 5–6: 2 × RJ-45 10/100 M (uplink)
  • Power Supply: 53V DC
  • Operating Temperature: –10°C to +55°C (+14°F to +131°F)
  • Operating Humidity: 5%–95%
  • Storage Temperature: –20°C to +70°C (–4°F to +158°F)
  • Storage Humidity: 5%–95%
  • Power Consumption: Idling: 1.5W, Full load: 60W
  • Performance
  • Switching Capacity: 1.80 Gbps
  • Packet Forwarding Rate: 0.89 Mpps
  • Packet Buffer Size: 1 Mbit
  • MAC Table Size: 2K
  • Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3x
  • PoE
  • PoE Standard: IEEE802.3af/IEEE802.3at/Hi-PoE
  • PoE Power: 60W
  • PoE Power Consumption Management: Yes
  • PoE Pin Assignment: PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
  • Far Distance Mode: 250 m @10 Mbps
  • General
  • ESD: Air discharge: 8kV, Contact discharge: 6kV
  • Thunderproof: Common mode: 2kV
  • Differential mode: 1kV
  • Net Weight: 0.3 kg (0.66 lb)
  • Gross Weight: 0.9 kg (1.98 lb)
  • Product Dimensions: 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")
  • Packaging Dimensions: 267 mm × 239 mm × 77 mm (10.51" × 9.41" × 3.03")
