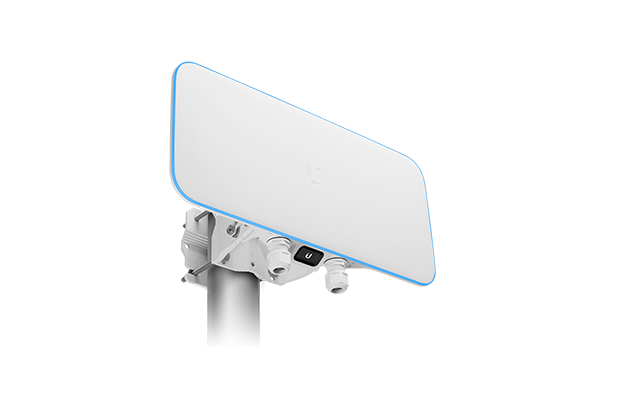

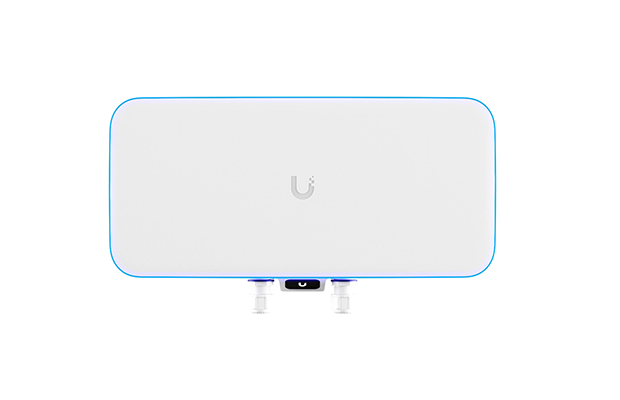

UniFi WiFi BaseStation XG Access Point (UWB-XG)

~~$ 1,850.00~~ $ 1,839.00

Part Number: UWB-XG
WiFi 5 (5 GHz only)
12 spatial streams
465+ m² (5,000+ ft²) open space coverage
1,500+ connected devices
Powered using PoE++
(1) GbE and (1) 10 GbE uplink
Versatile wall and pole mounting
Phased array antenna system with software-adjustable coverage (50° or 90°)
Weatherproof (outdoor exposed)
Warranty: 1 Year on part.

Order Now

Specification

Part Number: UWB-XG
Mechanical
Dimensions: 471.1 x 257.5 x 94.3 mm (18.6 x 10.1 x 3.7")
Weight: 3.2 kg (7.1 lb)
Weatherproofing: IP67
Hardware
Networking interface: (1) GbE RJ45 port
Networking interface: (1) 1/10 GbE ICM Ethernet port
Management interface: Ethernet, Bluetooth
Power method: PoE++
Power supply: Gigabit PoE++ adapter 50V DC, 1.2A (Included)
Max. power consumption: 31W
Supported voltage range: 44—57V DC
Max. TX power
2.4 GHz : –
5 GHz : 25 dBm
6 GHz : –
MIMO
2.4 GHz : –
5 GHz : Low/Mid/High-band: 4 x 4 (DL MU-MIMO)
6 GHz : –
Max. data rate
2.4 GHz : –
5 GHz : Low/Mid/High-band: 1.7 Gbps (BW80)
6 GHz : –
Antenna gain
2.4 GHz : –
5 GHz : Small cell: 15 dBi / Large cell: 10 dBi
6 GHz : –
Antenna: Integrated dual-mode antenna array
Operating frequency
5 GHz low-band radio : Ch 36-64
5 GHz mid-band radio : Ch 100-132
5 GHz high-band radio : Ch 149-165
Antenna beamwidth
Small cell : 50°
Large cell : 90°
LEDs: R/G/B
Button: Factory reset
Mounting: VESA-compatible mount, pole/wall (Brackets included)
Ambient operating temperature: -40 to 70° C (-40 to 158° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11 a/b/g/n/ac
Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Power save: Supported
Beamforming: Supported
WMM: Voice, video, best effort, and background
Concurrent clients: 1500+
Supported Data Rates (Mbps)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
Warranty: 1 Year on part.
