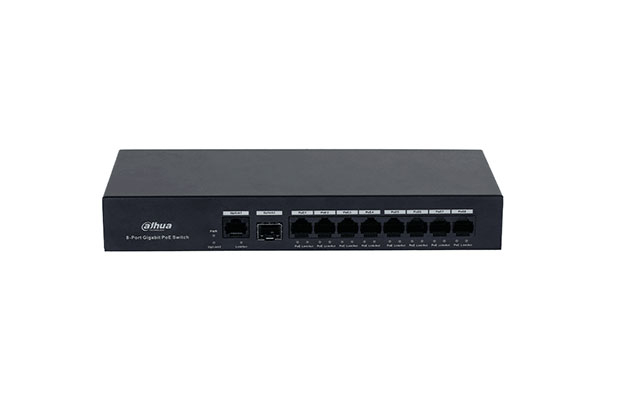

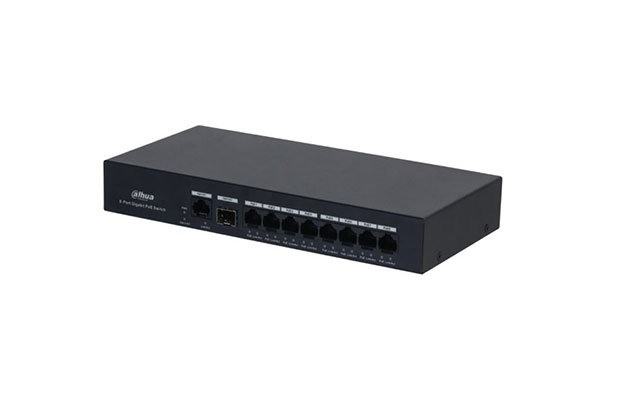

Dahua PFS3110-8GT-65 10-Port Economical Gigabit Switch with 8-Port PoE

~~$ 64.00~~ $ 60.00

Part Number: DH-PFS3110-8GT-65
Unmanaged gigabit PoE switch.
Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x standards.
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Easy to install, and plug and play.
Meets the IEEE 802.3af and IEEE802.3at power supply standards.
Warranty: 2-years on part.

Order Now

Specification

Part Number: PFS3110-8GT-65
Hardware Feature
Included Power Adapter: Yes
PoE: Yes
Ethernet Port: 8
Ethernet Port Speed: 10/100/1000 Mbps
Optical Port Speed: 1000 Mbps
Ethernet Port Uplink Speed: 10/100/1000 Mbps
Optical Port Uplink Speed: 1 Gbps
Description of Function Slots:
- Port 1-8: 8 × RJ–45 10/100/1000 Mbps;
- Port 9: 1 × RJ–45 10/100/1000 Mbps;
- Port 10: 1 × SFP 1000 Mbps
Power Supply: Built-in power supply: 100–240 VAC; 50/60 Hz; 1.5 A (maximum)
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 5%–95% (RH), non-condensing
Power Consumption: Idling: 1.8 W
Full load: 65 W
Performance
Layer: Layer 2
Management Type: No
Smart Managed Switch: No
Switching Capacity: 20 Gbps
Packet Forwarding Rate: 14.88Mpps
Packet Buffer Size: 1.5 Mbit
Jumbo Frame: 9,216 Byte
MAC Table Size: 2K Byte
Communication Standard: IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab,IEEE802.3z.
Features
PoE Protocol: IEEE 802.3af; IEEE 802.3at
PoE Power: Port 1–8 ≤30 W; Total ≤65 W
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
ePoE: No
Long Distance PoE Transmission: No
General
Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
Lighting Protection: Common mode: 2 kV; Differential mode: 0.5 kV
Net Weight: 0.8 kg (1.76 lb)
Gross Weight: 1.8 kg (3.97 lb)
Product Dimensions: 243 mm × 118 mm × 35 mm (9.57" × 4.65" × 1.36") (L × W × H)
Packaging Dimensions: 300 mm × 260 mm × 70 mm (11.81" × 10.24" × 2.76") (L × W × H)
Casing Material: Iron
Installation: Desktop mount
Certifications: CE; FCC.
