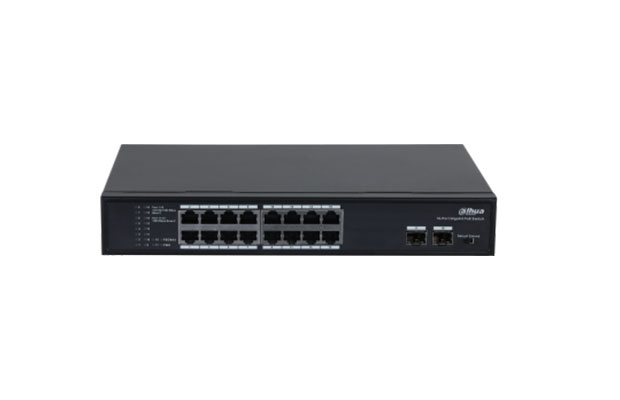

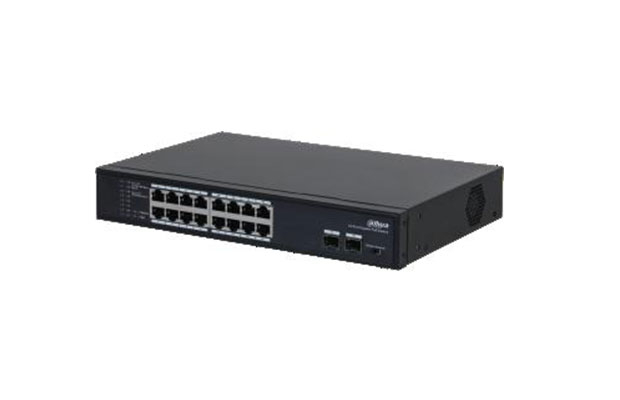

Dahua PFS3218-16GT-135 18-Port Economical Gigabit Switch with 16-Port PoE

~~$ 138.00~~ $ 133.00

Part Number: PFS3218-16GT-135
Unmanaged gigabit PoE switch.
Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, and IEEE802.3x,IEEE802.3z standards.
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Easy to install, and plug and play.
Meets the IEEE 802.3af and IEEE802.3at power supply standards.
Supports 250 m long-distance transmission mode.
Manages PoE power consumption and PoE power on/off. Automatically turns off PoE if an overload is detected.
Warranty: 2-years on part.

Specification

Part Number: DH-PFS3218-16GT-135
Hardware
Included Power Adapter: Yes
PoE: Yes
Ethernet Port: 16
Ethernet Port Speed: 10/100/1000 Mbps
Optical Port Uplink Speed: 1 Gbps
Description of Function Slots
- Port 1-16:16 × RJ-45 10/100/1000 Mbps;
- Port 17-18:2 × SFP 1000 Mbps
Power Supply: Built-in power supply: 100–240 VAC; 50/60 Hz; 2.5 A (maximum)
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 5%–95% (RH), non-condensing
Power Consumption: Idling: 9 W; Full load: 135 W
Performance
Layer: Layer 2
Management Type: No
Smart Managed Switch: No
Switching Capacity: 36 Gbps
Packet Forwarding Rate: 26.784 Mpps
Packet Buffer Size: 4.1 Mbit
Jumbo Frame: 9600 Byte
MAC Table Size: 8K Byte
Communication Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
Feature
PoE Protocol: IEEE 802.3af; IEEE 802.3at
PoE Power: Port 1–16 ≤30 W; Total ≤135 W
PoE Pin Assignment: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
ePoE: No
Long Distance PoE Transmission: Yes.
General
Statics Protection: Air discharge: 8 kV
Contact discharge: 6 kV
Lighting Protection: Common mode: 2 kV
Differential mode: 0.5 kV
Net Weight: 1.62 kg (3.57 lb)
Gross Weight: 2.34 kg (5.15 lb)
Product Dimensions: 285.0 mm × 189.5 mm × 43.7 mm (11.22" × 7.46" × 1.72")(L × W × H)
Packaging Dimensions: 369 mm × 299 mm × 81 mm (14.53" × 11.77" × 3.19")(L × W × H)
Casing Material: Iron
Installation: Desktop mount; rack mount; wall mount
Certifications: CE; FCC.
