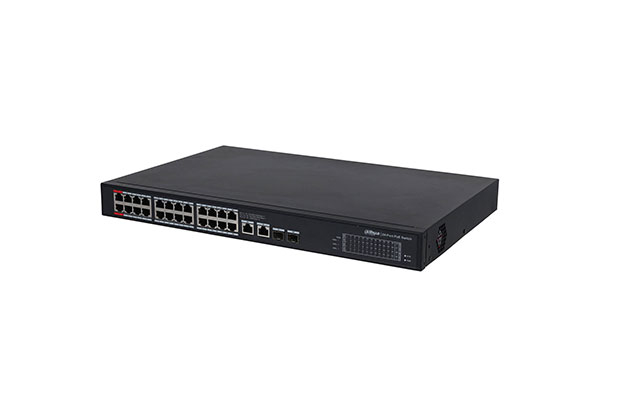

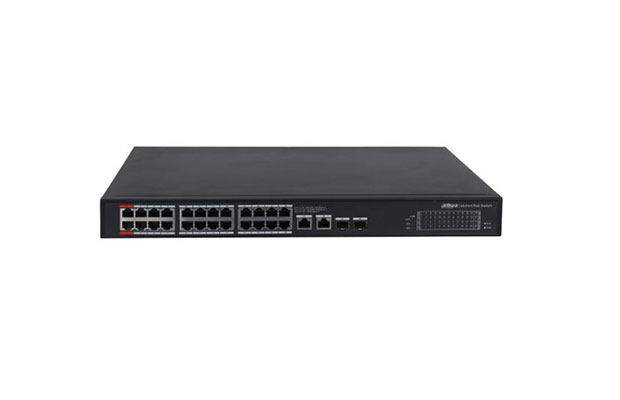

Dahua PFS3228-24GT-240 28-Port Unmanaged Gigabit Switch with 24-Port PoE

$ 250.00 $ 239.00
  • Part Number: PFS3228-24GT-240
  • Intelligent PoE
  • Red Port Supports BT 90W
  • All-giga Ports
  • Smooth Transmission
  • Wide Working Temperature: –10 to 55°C (14°F to 131°F)
  • Plug and Play
  • Warranty: 2-years on part.
Order Now

Specification

  • Part Number: DH-PFS3228-24GT-240
  • Certification
  • Layer: Layer 2
  • Managed: No
  • Switching Capacity: 52 Gbps
  • Packet Forwarding Rate: 38.688 Mpps
  • Packet Buffer Memory: 4 Mbit
  • MAC Table Size: 8K
  • Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
  • Hardware Feature
  • Standard Power Supply: Yes
  • PoE: Yes
  • Ethernet Port: 24
  • Optical Port: 2
  • Ethernet Port Rate: 1 Gbps
  • Optical Port Rate: 1 Gbps
  • - Port 1–24: 24 × RJ45 10/100/1000 M (PoE)
  • - Port 25–26: 2 × RJ45 10/100/1000 (uplink)
  • - Port 27–28: 2 × SFP 1000 M (uplink)
  • Power Supply: 100V AC–240V AC
  • Operating Temperature: –10°C to 55°C (14°F to 131°F)
  • Operating Humidity: 10%–90%
  • Storage Humidity: 5%–95%
  • Power Consumption: Idling: 8W; Full load: 240W
  • PoE
  • PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
  • PoE Budget: Port 1–2≤90W, Port 3–16≤30W, total≤240W
  • PoE Pin Assignment: PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
  • General
  • ESD: Air discharge: 8kV
  • ESD: Contact discharge: 6kV
  • Thunderproof: Common mode: 4kV
  • Differential mode: 2kV
  • Dimensions: 440 mm × 300 mm × 44 mm (17.32" × 11.81" × 1.73")
  • Packaging Dimensions: 527 mm × 412 mm × 110 mm (20.75" × 16.22" × 4.33").
