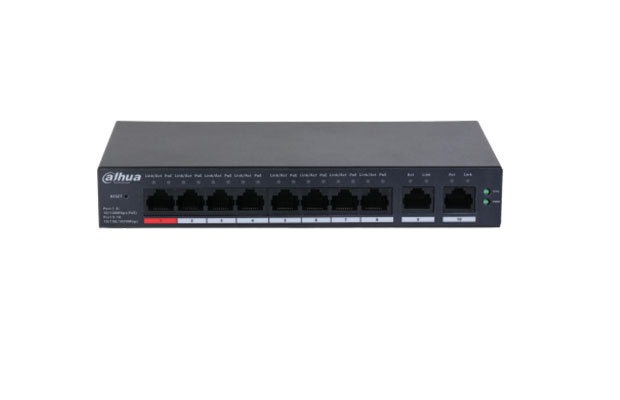

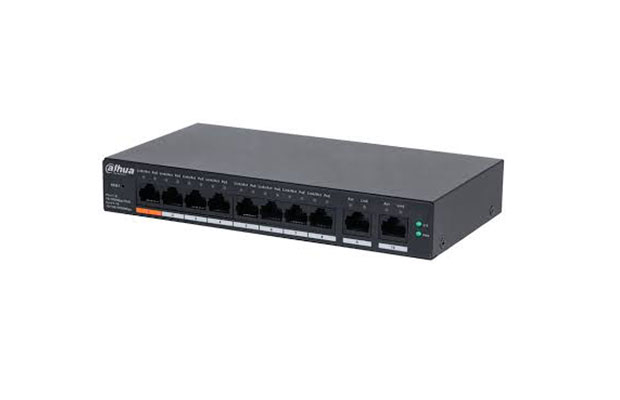

Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE

~~$ 48.00~~ $ 43.00

Part Number: DH-CS4010-8ET-60
Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards.
Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards.
Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
Warranty: 2-years on part.

Order Now

Specification

Part Number: DH-CS4010-8ET-60
Basic
Layer: Layer 2
Switching Capacity: 4.8 Gbps
Packet Forwarding Rate: 3.57 Mpps
Description of Function Slots: Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE Power: Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W
Operating Temperature: –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity: 5% –95% (RH), non-condensing
Power Consumption: Idling: ≤3 W; Full load: 65 W
Power Supply: External power supply: 53 VDC, 1.226 A
Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
Lightning Protection: Common mode: 4 kV; Differential mode: 2 kV
Net Weight: 0.28 kg (0.64 lb)
Product Dimensions: 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)
Hardware
PoE: Yes
Reset Button: 1
Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity: 5%–95% (RH), non-condensing
Performance
MTBF: 232.62 years
Packet Buffer Size: 4 Mbit
Jumbo Frame: 9216 Byte
MAC Table Size: 8K
VLAN Number: 32
Communication Standard: IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
Feature
PoE Protocol: IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Power Consumption Management: Yes
PoE Pin Assignment: 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission: Yes
VLAN Function: Port-based VLAN
IEEE 802.3x Flow Control: Yes
DHCP Function: DHCP Client
Equipment Management: Web management; App management
General
Gross Weight: 0.80 kg (1.76 lb)
Packaging Dimensions: 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)
Casing Material: Sheet metal
Installation: Desktop mount; wall mount
Certifications: CE
Packing List: Quick Start Guide × 1; Legal and Regulatory Information × 1;Power adapter × 1; Power cord × 1
