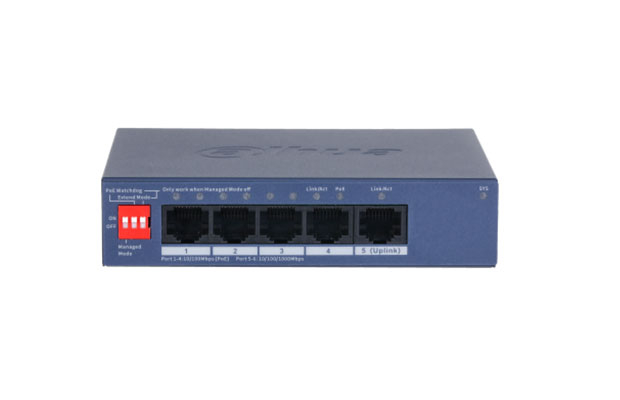

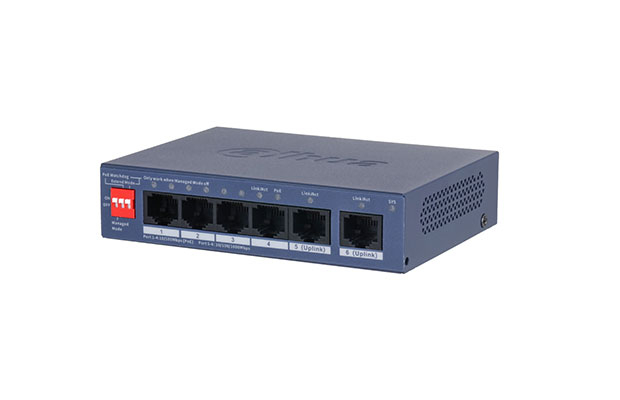

Dahua CS4006-4ET2GT-36 6-Port Cloud Managed Desktop Switch with 4-Port PoE

$ 36.00 $ 32.00
  • Part Number: CS4228-24GT-240
  • 4 RJ-45 10/100 Mbps PoE ports
  • 2 x RJ-45 Gigabit ports
  • 36 W total PoE budget
  • 802.3af/at on all PoE ports
  • Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
  • A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
  • Warranty: 2-years on part.
Order Now

Specification

  • Part Number: DH-CS4228-24GT-240
  • Basic
  • Layer: Layer 2
  • Switching Capacity: 4.8 Gbps
  • Packet Forwarding Rate: 3.57 Mpps
  • Description of Function Slots: Port 1-4: 4 RJ-45 10/100 Mbps (PoE); Port 5-6: 2 RJ-45 10/100/1000 Mbps (uplink)
  • Operating Temperature: 10 C to +55 C (+14 F to +131 F)
  • Operating Humidity: 10%90% (RH), non-condensing
  • Storage Temperature: 40 C to +70 C (40 F to +158 F)
  • Storage Humidity: 5%95% (RH), non-condensing
  • Power Supply: External power supply: 53 VDC, 0.8 A
  • Power Consumption: Idling: 3 W; Full load: 42.4 W
  • Statics Protection: Air discharge: 8 kV; Contact discharge: 6 kV
  • Lightning Protection: Common mode: 6 kV; Differential mode: 0 kV
  • Net Weight: 0.2 kg (0.44 lb)
  • Gross Weight: 0.72 kg (1.59 lb)
  • Product Dimensions: 115 mm 84 mm 27 mm (4.53" 3.33" 1.06") (L W H)
  • Packaging Dimensions: 195 mm 114 mm 83 mm (7.68" 4.49" 3.27") (L W H)
  • Casing Material: Sheet metal
  • Installation: Desktop mount; wall mount
  • Certifications: CE
  • PoE
  • PoE: Yes
  • PoE Power: Port 1-4 30 W, total 36 W
  • PoE Protocol: IEEE802.3af; IEEE802.3at
  • PoE Power Consumption Management: PoE power consumption management; PoE power on/off; turns off PoE if overload is detected
  • PoE Pin Assignment: 1, 2, 4, 5V+, 3, 6, 7, 8V-
  • Long Distance PoE Transmission: Yes.
  • Hardware
  • DIP Switch: Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
  • PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
  • Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
  • Reset Button: 1
  • Performance
  • MTBF: 232.62 years
  • Packet Buffer Size: 4 Mbit
  • Jumbo Frame: 9216 Byte
  • MAC Table Size: 2K
  • Communication Standard: IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az
  • VLAN Number: 32
  • Feature
  • VLAN Function: IEEE 802.1Q VLAN
  • Port Feature: IEEE 802.3x Flow Control; Unknown Unicast Suppression; Multicast Storm Control; Broadcast Storm Control; MAC+Port Binding Loop; Prevention
  • Mirror: N:1 Mirroring; Local Port Mirroring
  • Reliability: LLDP
  • DHCP Function: DHCP Client
  • Security: Port Isolation
  • Equipment Management: Web Management; Cloud Management; Logs; Fault Alarm
  • General
  • Packing List: Quick Start Guide 1; Legal and Regulatory Information 1; Power adapter 1; Power cord 1
