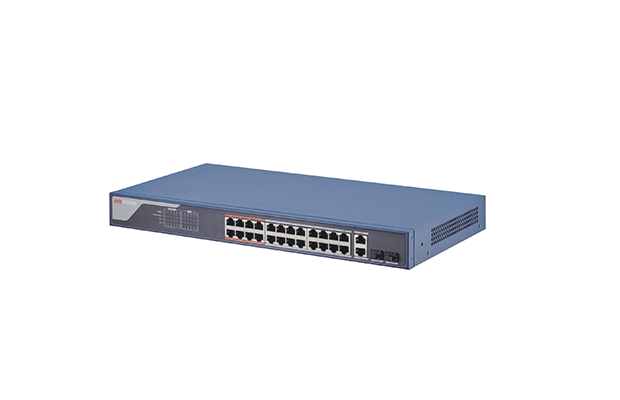

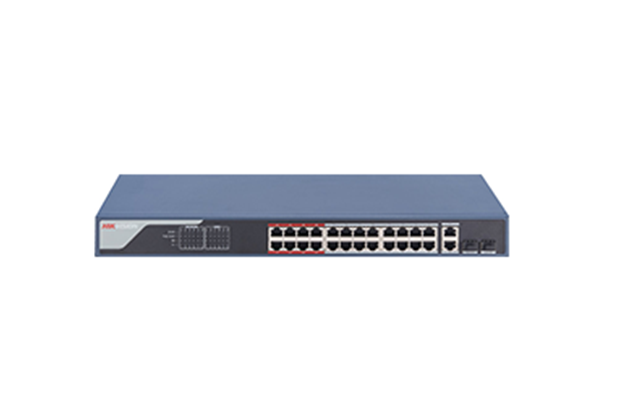

Hikvision DS-3E1326P-EI 24Port Fast Ethernet Smart POE Switch

~~$ 178.00~~ $ 169.00

Part Number: DS-3E1326P-EI
24 Port Fast Ethernet Smart POE Switch
L2, Unmanaged, 16 10/100M RJ45 PoE ports, 2 Gigabit combo ports
Network topology management, alarm push, network health monitor.
IEEE 802.3af/at, PoE power budget 230W, ports 9-16 support up to 300meter
6KV surge protection
Warranty: 1 Year on part

Order Now

Specification

Part Number: DS-3E1326P-EI
Network Parameters
Port Type: RJ45 port,full duplex,MDIMDI-X adaptive
Ports: 24 × 10/100 Mbps PoE port,2 × 1 Gigabit combo
Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab,IEEE 802.3z
High Priority Ports: Ports 1 to 8
Forwarding Mode: Store-and-forward switching
Working Mode: Standard mode (default),Extend mode
MAC Address Table: 16 K
Switching Capacity: 8.8 Gbps
Packet Forwarding Rate: 6.5472 Mpps
Internal Cache: 4 Mbits
PoE Power Supply
PoE Standard: IEEE 802.3af,IEEE 802.3at
PoE Power Pin:
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: PoE: Ports 1 to 24
Max. Port Power: 30 W
PoE Power Budget: 370 W
Software Function
Device Maintenance
Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
PoE Configuration
Support port rate configuration, flow control, and ports enabling.
General
Shell: Metal material
Net Weight: 2.83 kg (6.24 lb)
Gross Weight: 3.800 kg (8.38 lb)
Dimensions (W × H × D): 440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 100-240 VAC, 50/60 Hz, Max. 6.5 A
Max. Power Consumption: 400 W
Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
Warranty: 1 Year on part
