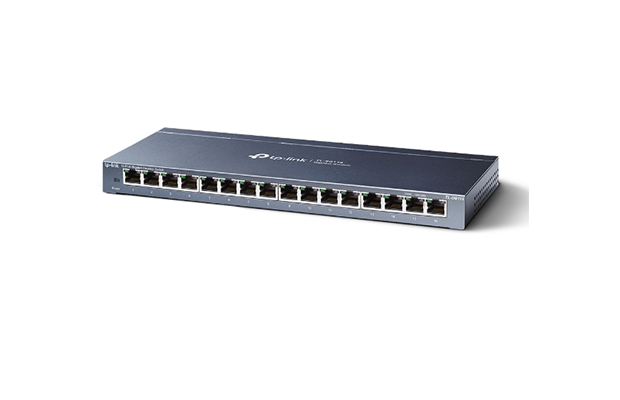

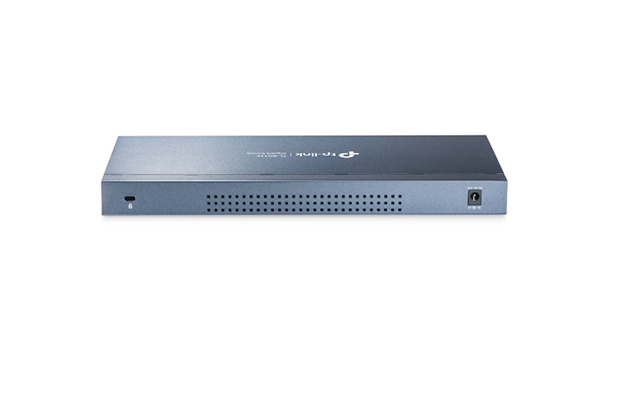

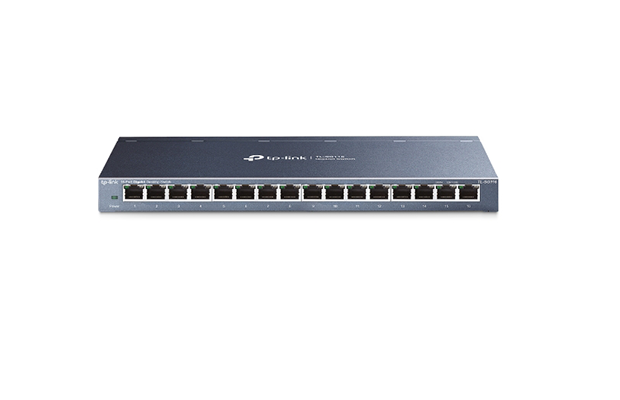

TP-Link TL-SG116 16-Port Gigabit Desktop Switch

$ 64.00 $ 59.00
  • Part Number: TL-SG116
  • 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS and IGMP Snooping function
  • Plug and play, with no configuration needed
  • Warranty: 2 Years on part.
Order Now

Specification

  • Part Number: TL-SG116
  • HARDWARE FEATURES
  • Standards and Protocols: IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p
  • Interface: 16 × 10/100/1000Mbps Ports
  • Auto-Negotiation, Auto-MDI/MDIX
  • Fan Quantity: Fanless
  • Physical Security Lock: Yes
  • External Power Supply: External Power Adapter 100VAC ~ 240VAC (Output: 12VDC / 1.0A)
  • LED Indicator: System Power
  • Link/Act indicators per port built into each RJ-45 port
  • Dimensions ( W x D x H ): 11.3 × 4.4 × 1.0 in. (286 × 112 × 25 mm)
  • Max Power Consumption: 10W
  • Max Heat Dissipation: 34.1 BTU/h
  • PERFORMANCE
  • Packet Forwarding Rate: 23.8Mpps
  • MAC Address Table: 8K
  • Packet Buffer Memory: 4.1Mb
  • Jumbo Frame: 10KB
  • SOFTWARE FEATURES
  • Advanced Features:
  • - Green Technology
  • - 802.3x Flow Control
  • - 802.1p/DSCP QoS
  • - IGMP Snooping
  • Transfer Method: Store and Forward
  • OTHERS
  • Certification: FCC ,RoHS

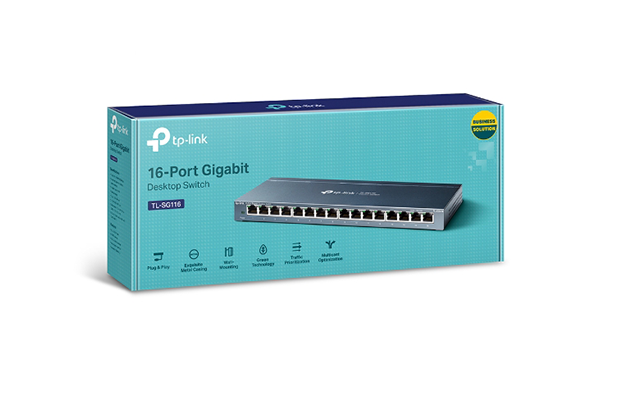

  • Package Contents:
  • - 16-Port 10/100/1000Mbps Desktop Switch
  • - Power Adapter
  • - Installation Guide
  • - Rubber Feet
  • Environment:
  • Operating Temperature: 0°C~40°C (32°F~104°F)
  • Storage Temperature: -40°C~70°C (-40°F~158°F)
  • Operating Humidity: 10% ~ 90%, non-condensing
  • Storage Humidity: 5%~90% non-condensing
  • Warranty: 2 Years on part.
