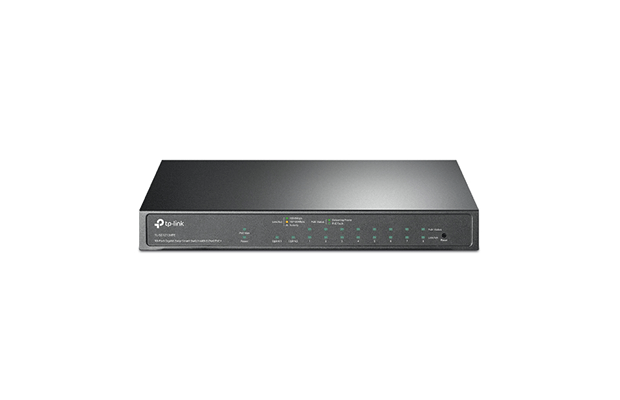

TP-Link TL-SG1210MPE 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

$ 95.00 $ 89.00
  • Part Number: TL-SG1210MPE
  • 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port

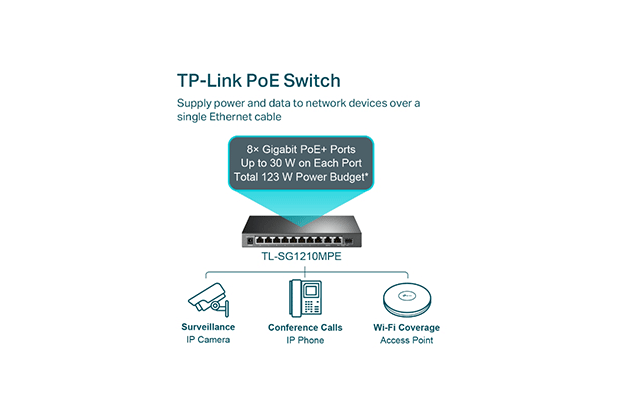

  • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
  • Supports PoE power up to 123 W for all PoE ports*

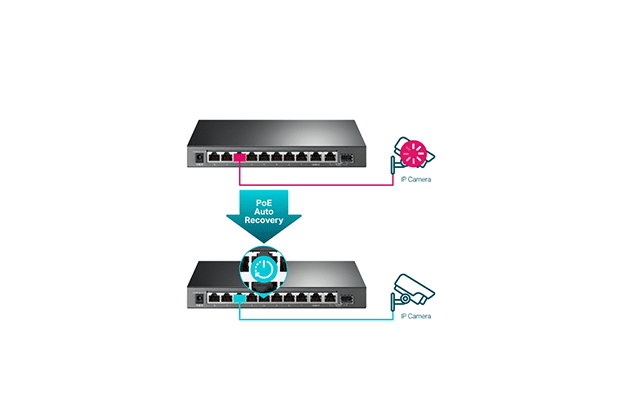

  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise
  • Warranty: 3 Years on part
Order Now

Specification

  • Part Number: TL-SG1210MPE
  • HARDWARE FEATURES
  • Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
  • IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
  • Interface:
  • 9× 10/100/1000 Mbps RJ45 Ports
  • 1× 1000 Mbps Combo SFP/RJ45 Port
  • AUTO Negotiation/AUTO MDI/MDIX
  • Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • Fan Quantity: Fanless
  • Power Supply: External Power Adapter (Output: 53.5 VDC/2.43 A)
  • PoE Ports (RJ45):
  • Standard: 802.3 af/at compliant
  • PoE Ports: Port 1- Port 8
  • PoE Power Budget: 123 W

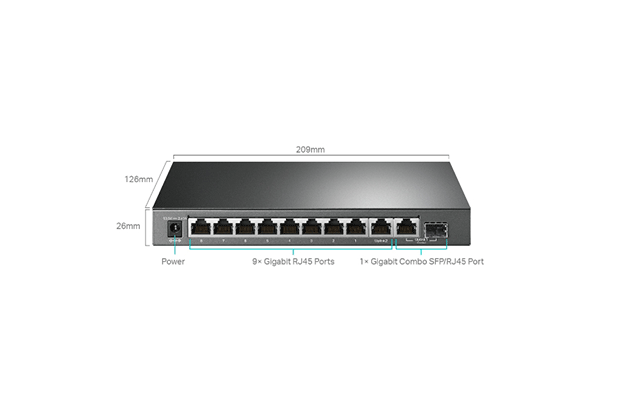

  • Dimensions ( W x D x H ): 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
  • Max Power Consumption:
  • 7.66 W (220V / 50Hz with no PD connected)
  • 141.54 W (220V / 50Hz with 123 W PD connected)
  • Max Heat Dissipation:
  • 26.12 BTU/h (220V / 50Hz with no PD connected)
  • 482.65 BTU/h (220V / 50Hz with 123 W PD connected)
  • PERFORMANCE
  • Switching Capacity: 20 Gbps
  • Packet Forwarding Rate: 14.88 Mpps
  • MAC Address Table: 4 K
  • Jumbo Frame: 16 KB
  • SOFTWARE FEATURES
  • Quality of Service:
  • Support Port-Based/802.1p/DSCP priority
  • Support: 4 priority queues
  • Rate Limit
  • Storm Control
  • L2 Features:
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
  • PoE: Extend Mode**, PoE Auto Recovery
  • Management: Web-based GUI, Easy Smart Configuration Utility
  • Transmission Method: Store-And-Forward
  • OTHERS
  • Certification: FCC, CE, RoHS

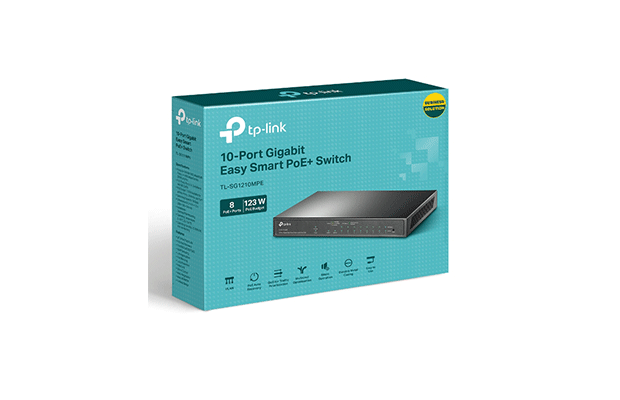

  • Package Contents:
  • TL-SG1210MPE
  • Power Adapter
  • Installation Guide
  • Rubber Feet
  • System Requirements: Microsoft® Windows® for running Utility
  • Environment:
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90%RH non-condensing
  • Storage Humidity: 5%~95%RH non-condensing
  • Warranty: 3 Years on part
