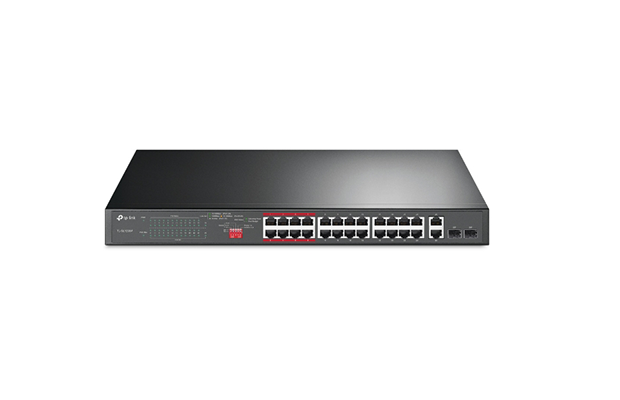

TP-Link TL-SL1226P 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

$ 156.00 $ 150.00
  • Part Number: TL-SL1226P

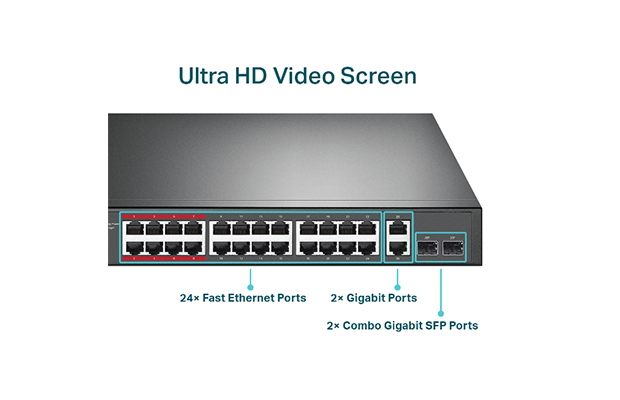

  • 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

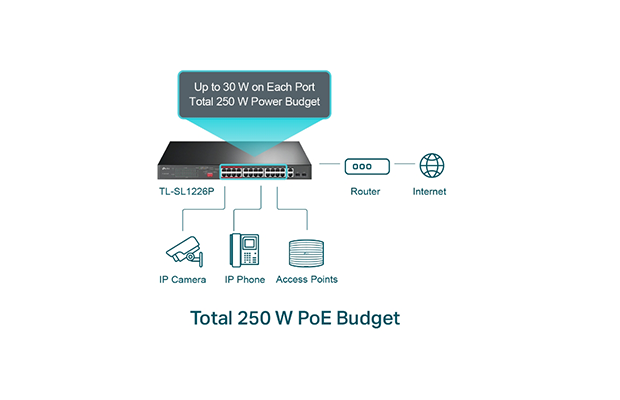

  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
  • Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system
  • Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
  • Isolation Mode allows one-click client traffic separation for higher security and performance

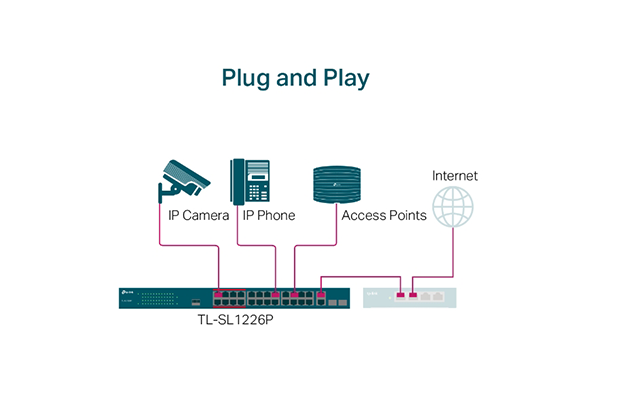

  • Plug and play, with no configuration and installation needed
  • Warranty: 2 years on part.

Specification

  • Part Number: TL-SL1226P
  • HARDWARE FEATURES
  • Interface:
  • 24× PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
  • Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
  • Fan Quantity: 2 Fans
  • Physical Security Lock: Yes
  • Power Supply: 100-240 VAC, 50/60 Hz
  • Packet Forwarding Rate: 6.5472 Mpps
  • PoE+ Ports(RJ45):
  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port 1 – Port 24
  • PoE Power Budget: 250 W
  • Mac Address Table: 8 K
  • Jumbo Frame: 10 KB
  • Switching Capacity: 8.8 Gbps
  • Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
  • Max Power Consumption:
  • 18.32 W (220/50 Hz. no PD connected)
  • 294 W (220/50 Hz. with 250 W PD connected)
  • Max Heat Dissipation:
  • 62.47 BTU/h (no PD connected)
  • 1002.54 BTU/h (with 250 W PD connected)
  • SOFTWARE FEATURES
  • Advanced Features:
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode
  • Isolation Mode
  • PD Detection
  • Intelligent Power Supply
  • Mac Address Auto-Learning and Auto-Aging
  • IEEE802.3x Flow Control
  • Transmission Method: Store-And-Forward
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Contents:
  • TL-SL1226P
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
  • Environment:
  • Operating Temperature: 0–50 °C (32–122 °F)
  • Storage Temperature: -40–70 °C (-40–158 °F)
  • Operating Humidity: 10–90% non-condensing
  • Storage Humidity: 5–90% non-condensing
  • Warranty: 2 years on part.
