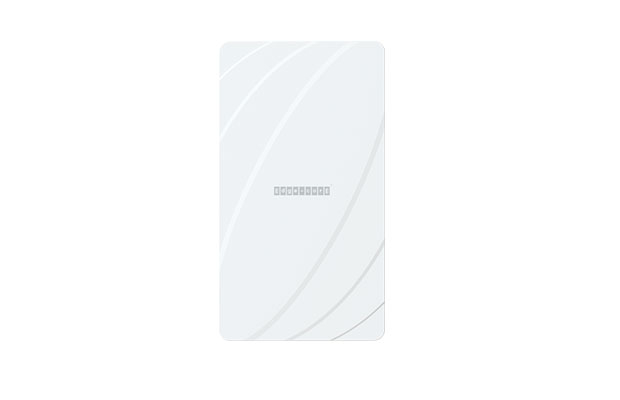

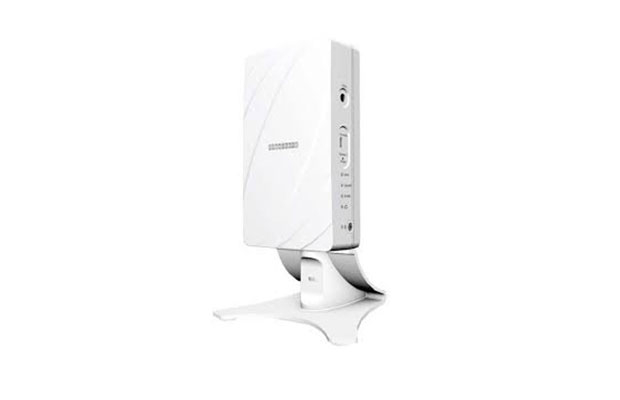

Edgecore EAP104-Lite Indoor Wi-Fi 6 Wall-Plate Access Point

~~$ 244.00~~ $ 235.00

Specification

Part Number: EAP104-Lite
Standard: 802.11a/b/g/n/ac/ax (Wi-Fi 6), Concurrent dual-band 2.4 GHz & 5 GHz
Radio Chains: 2×2
Spatial Streams: 2; Uplink and downlink MU-MIMO support
Aggregate Conducted Transmit Power: 2.4 GHz: 22 dBm & 5 GHz: 22 dBm
Channelization: 2.4 GHz: 20, 40 MHz & 5 GHz: 20, 40, 80, 160Mhz
Frequency Range: 2.401 –2.483 GHz, 5.170 –5.835 GHz
Operating Channels: 2.4GHz: 1 –11 (US), 1 –13 (Europe, Japan)
Operating Channels: 5 GHz: 36 –165 (US), 36 –140 (Europe), 36 –144 (Japan)
ESSIDs: Up to 16 per radio (32 total)
Type: 5 x Built-in antenna (2 x 2.4 GHz, 2 x 5 GHz, 1 x BLE)
Gain: 3.9 dBi (2.4 GHz), 5.2 dBi (5 GHz), 4 dBi (BLE)

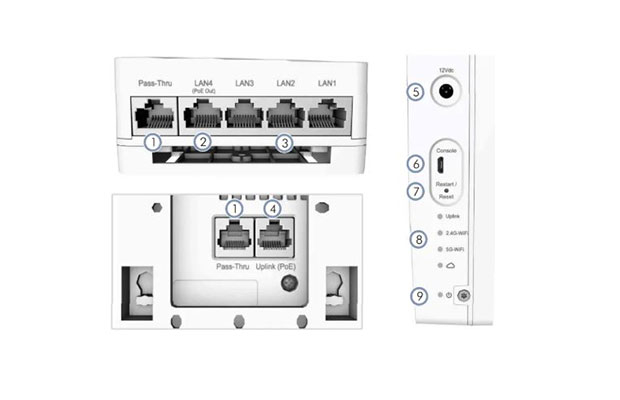

Uplink: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with standard PoEinput
LAN: 4 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 (LAN4 supports 802.3af PoE out up to 10W while the system is powered by 802.3at)
Pass-Thru: 1 x pass-through port from rear to bottom
Console: 1 x Micro-USB port
Power: DC Input: 12V / 2.0A (power adapter optional)
Power: PoE: 802.3at/af compliant (PoE injector optional)
Buttons: Restart / Reset
LED Indicator: Power, Cloud Status, 5G-WiFi, 2.4G-WiFi,Uplink
Environmental Conditions: Operating Temperature: 0°C (32°F) to 45°C (113°F)
Environmental Conditions: Operating Humidity: 5% to 95% non-condensing
Power Consumption: 12.9W max.
Physical Data Rate: Up to 574 Mbps (2.4 GHz), Up to 2402 Mbps (5 GHz)
Dimensions: 160.5 mm (L) x 89.5 mm (W) x 34 mm (H)
Weight: 0.45 kg.
