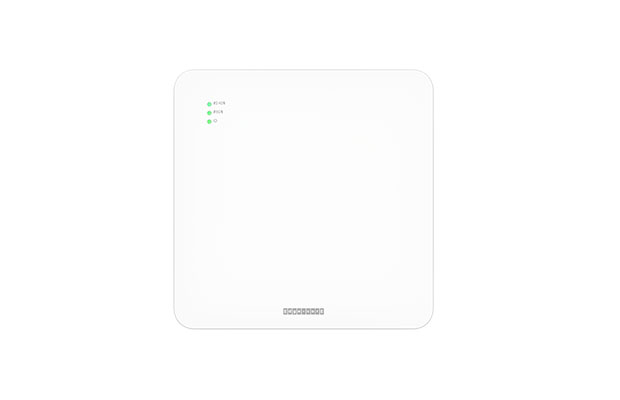

Edgecore EAP101-WW Dual-band Wi-Fi 6 Indoor Access Point

~~$ 305.00~~ $ 295.00

Part Number: EAP101-WW
Concurrent Dual-Band 2.4GHz & 5GHz
2×2:2 UL MU-MIMO
Support BLE/ Zigbee
1 x 2.5GbE PoE WAN
2 x GbE LAN
Support ecCLOUD
Warranty: 1-Year on part.

Order Now

Specification

Part Number: EAP101-WW
Standards: 802.11ax (Wi-Fi 6), Concurrent dual-band 2.4 GHz & 5 GHz
Radio Chains: 2 x2
Spatial Streams: 2; MU-MIMO support
Aggregate Conducted Transmit Power: 2.4 GHz: Up to 26 dBm, 5 GHz: Up to 26 dBm
Channelization: 2.4 GHz: 20 / 40 MHz, 5 GHz: 20 / 40 / 80Mhz
Frequency Range: 2.400 –2.483 GHz, 5.150 –5.850 GHz
Operating Channels: 2.4 GHz: 1-11 (US), 1-13 (Europe), 1-13 (Japan)
Operating Channels: 5 GHz : 36-165 (US), 36-140 (Europe), 36-144 (Japan)
ESSIDs: Up to 16 per radio (32 total)
Type: 3 x Built-in antenna (2 x 2.4 GHz & 5 GHz, 1 x Bluetooth Low Energy)
Gain: 4.8 dBi(2.4 GHz), 6 dBi(5 GHz), 4.6 dBi(BLE)

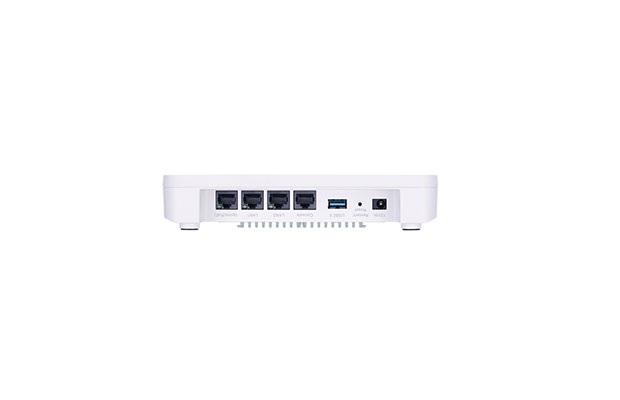

Uplink: 1 x 10/100/1000/2.5GBase-T Ethernet, Auto MDIX, RJ-45 with802.3at PoE
LAN: 2 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45
Console: 1 x RJ-45 Port
USB: 1 x USB 2.0 Port
Wireless Features
802.11 k/r
Orthogonal Frequency Division Multiple Access (OFDMA)
Client Isolation
Open Mesh
BSS Coloring
Band steering
Wi-Fi Enhanced Open (OWE)
Network Features
Spanning Tree Protocol (STP)
Dynamic Host Configuration Protocol (DHCP)
DHCP Relay
802.1q
Access Control List (ACL)
Network Address Translation (NAT)
Dynamic VLAN
Link Layer Discovery Protocol (LLDP)
Power: DC Input: 12V / 2.0A (Power adapter included)
Power: PoE: 802.3at compliant (PoE injector not included)
LED Indicator: 2.4G-WiFi / 5G-WiFi / Power
Buttons: Restart/ Reset
Environmental Conditions: Operating Temperature: 0°C (32°F) to 50°C (122°F)
Environmental Conditions: Operating Humidity: 5% to 95% non-condensing
Power Consumption: 22.4W max.
Physical Data Rate: Up to 574 Mbps (2.4 GHz), Up to 1200 Mbps (5 GHz)
Dimensions (L x W x H): 19.5 cm x 19.5 cm x 3.9 cm (7.68 x 7.68x 1.54in)
Weight: 0.65 kg (1.44 lbs).
