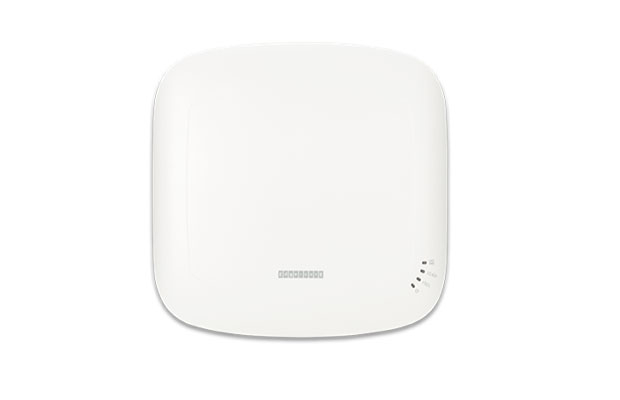

Edgecore EAP102 Dual-band Wi-Fi 6 Indoor Access Point

$ 455.00 $ 445.00
  • Part Number: EAP102
  • Wi-Fi 6 Indoor Access Point
  • Concurrent Dual-Band 2.4GHz & 5GHz
  • 4×4:4 UL MU-MIMO
  • Support BLE
  • 1 x 2.5GbE PoE WAN
  • 1 x 2.5GbE LAN
  • Support ecCLOUD
  • Warranty: 1-Year on part.
Order Now

Specification

  • Part Number: EAP102
  • Standards: 802.11ax (Wi-Fi 6), Concurrent dual-band 2.4 GHz & 5 GHz
  • Radio Chains: 2.4 GHz: 2 x 2, 5 GHz: 4 x 4
  • Spatial Streams: 2.4 GHz: 2; MU-MIMO suppor & 5 GHz: 4; MU-MIMO support
  • Aggregate Conducted Transmit Power: 2.4 GHz: Up to 23 dBm
  • Aggregate Conducted Transmit Power: 5 GHz: Up to 26 dBm
  • Channelization: 2.4 GHz: 20 / 40 MHz & 5 GHz: 20 / 40 / 80Mhz
  • Frequency Range: 2.400 – 2.483 GHz, 5.150 – 5.850 GHz
  • Operating Channels: 2.4 GHz: 1 –11 (US), 1 –13 (Europe), 1 –13 (Japan)
  • Operating Channels: 5 GHz: 36 –165 (US), 36 –140 (Europe), 36 –144 (Japan)
  • ESSIDs: Up to 16 per radio (32 total)

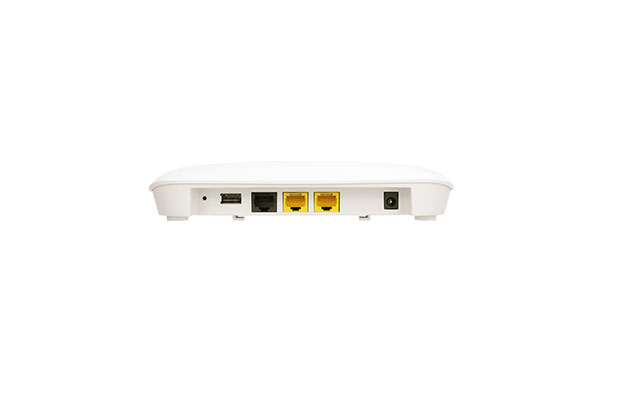

  • Uplink: 1 x 10/100/1000/2.5GBase-T Ethernet, Auto MDIX, RJ-45 with 802.3at PoE
  • LAN: 1 x 10/100/1000/2.5GBase-T Ethernet, Auto MDIX, RJ-45
  • Console: 1 x RJ-45 Port
  • USB: 2 x USB 2.0 Port (One USB port work at a time)
  • Power: DC Input: 12V / 2.0A (Power adapter included)
  • Power: PoE: 802.3at compliant (PoE injector optional)
  • LED Indicator: Uplink / 2.4G-WiFi / 5G-WiFi / Power
  • Buttons: Restart/ Reset
  • Environmental Conditions: Operating Temperature: 0°C (32°F) to 45°C (113°F)
  • Environmental Conditions: Operating Humidity: 5% to 95% non-condensing
  • Power Consumption: 25W max (22W when powered by DC)
  • Mounting: Wall/Ceiling/T-bar mount (Mounting kit included)
  • Physical Data Rate: Up to 574 Mbps (2.4 GHz), Up to 2400 Mbps (5 GHz)
  • Dimensions (L x W x H): 19.5 cm x 20.1 cm x 3.98 cm
  • Weight: 0.7 kg
  • Warranty: 1-Year on part.
