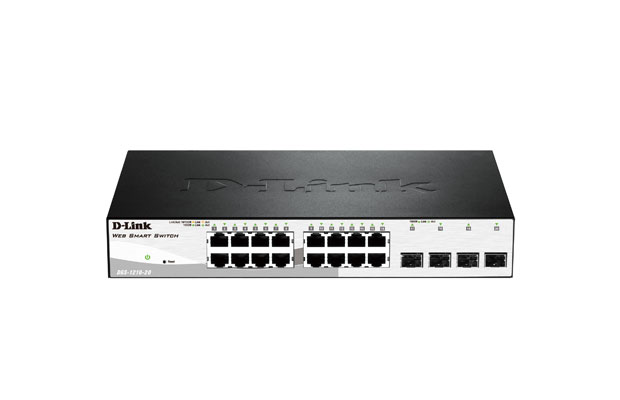

Model:
- DGS-1210-28
- DGS-1210-52
- DGS-1210-10
- DGS-1210-20
Interfaces:
- 24 Ports 10/100/1000 Mbps
- 4 SFP
- 48 Ports 10/100/1000 Mbps
- 4 SFP
- 8 Ports 10/100/1000 Mbps
- 2 SFP
- 16 Ports 10/100/1000 Mbps
- 4 SFP
Port Standards & Functions:
- IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
- IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
- IEEE 802.3az compliance
- Auto-negotiation
- IEEE 802.3x Flow Control
Network Cables:
- UTP Cat. 5, Cat. 5e (100 m max.)
Full/Half Duplex:
- Full/half duplex for 10/100 Mbps speeds
- Full duplex for Gigabit speed
Media Interface Exchange:
- Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity:
- 56 Gbps
- 104 Gbps
- 20 Gbps
- 40 Gbps
Transmission Method:
MAC Address Table:
- 16 ,000 entries per device
Maximum 64 bytes packet forwarding rate:
- 41.7 Mpps
- 77.4 Mpps
- 14.88 Mpps
- 29.8 Mpps
Packet Buffer Memory:
DDRIII for CPU:
Flash Memory:
- 16 Mbytes
- Warranty: 1 Year on part.
