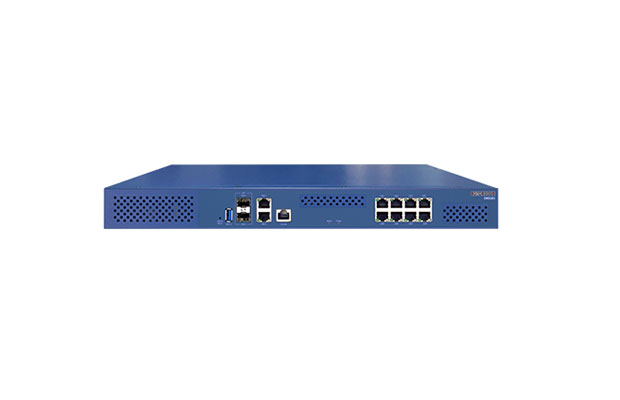

Edgecore EWS5203 Wireless Access Controller

$ 2,630.00 $ 2,619.00
  • Part Number: EWS5203
  • Managed up to 300 APs
  • Up to 10,000 local accounts
  • 2 x GbE or 2 x 1GbE SFP WAN port
  • 8 x GbE LAN port
  • 1 x USB 3.0 port
  • Rack Mount
  • Warranty: 1-Year on part.
Order Now

Specification

  • Part Number: EWS5203
  • Access Points: Up to 300 Managed Edgecore APs
  • Local Accounts: Up to 80 Managed Switches
  • On-Demand Accounts: Up to 10,000 Local Accounts
  • Max. Number of Online Users: 3,000; Switchable
  • Input: 100-240 VAC, 50/60 Hz
  • Operating Humidity: 10% to 90% non-condensing
  • WAN: 2x 10/100/1000Base-T Ethernet, Auto-MDIX, RJ-45; or 2x SFP
  • LAN: 8 x 10/100/1000Base-T Ethernet, Auto-MDIX, RJ-45
  • Billing Quota Types: By duration; By Traffic Volume
  • Authentication: 802.1X, UAM (browser-based), IP or MAC-based
  • Authentication Servers: Local, On-demand, Guest, RADIUS, LDAP, NT Domain, SIP, POP3
  • Tunneling Protocols: IPSec, IKEv2
  • High Availability: N+1 Redundancy with automatic synchronization
  • Internet Protocols Supported: IPv4, IPv6
  • Console: 1x RJ-45
  • USB: 1x USB3.0
  • Operating Temperature: 0°C (32°F) to 40°C (104°F)
  • Weight: 2.6kg (5.73 lbs).
