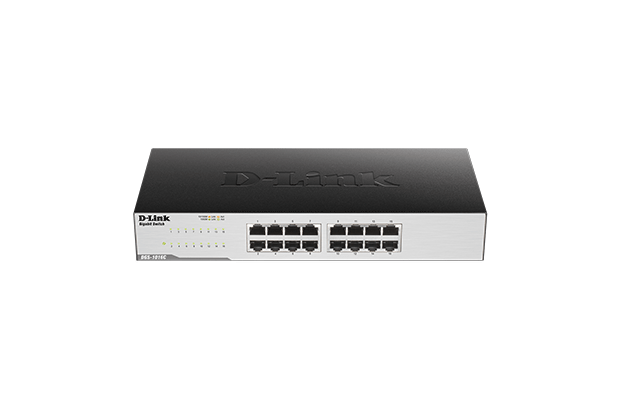

D-Link DGS-1016C 16-Port Gigabit Ethernet Unmanaged Switch

~~$ 80.00~~ $ 75.00

Part Number: DGS-1016C
16 Gigabit LAN ports for high-speed wired connections
Plug-and-play installation for convenience
Auto-negotation on all ports
Half/full-duplex, auto MDI/MDIX, and store-and-forward switching
Full wire-speed data transmission
Energy-efficient design
Warranty: 1 year on Part

Order Now

Specification

Part Number: DGS-1016C
Device Interfaces
16 x 10/100/1000 Mbps LAN ports
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity: 32 Gbps
Advanced Features
Auto-MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
Supports 9,216 bytes jumbo frames
Back pressure at half-duplex operation
Wire-speed reception and transmission
Auto-negotiation for each port
Quality of Service (8 queues, strict mode)
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet:
2000 Mbps (full duplex)
Transmission Method
Store-and-forward
MAC Address Table Size: 8,000 entries
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer: 512 KB per device
LED Indicators
Per port: Link/Activity/Speed
Per device: Power
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Dimensions: 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in)
Weight: 0.87 kg (1.92 lbs)
Power Inputs: 12 V / 1 A
Power Consumption
Standby: 4.1 W
Maximum: 11.7 W
Temperature
Operating: 0 to 40 °C (32 to 104 °F)
Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
MTBF: 218,743 hours
Maximum Heat Dissipation: 39.92 BTU/h
Emissions (EMI)
CE Class A
FCC Class A
VCCI Class A
BSMI
CCC
Safety
UL
CB
LVD
BSMI
CCC
Warranty: 1 year on Part
