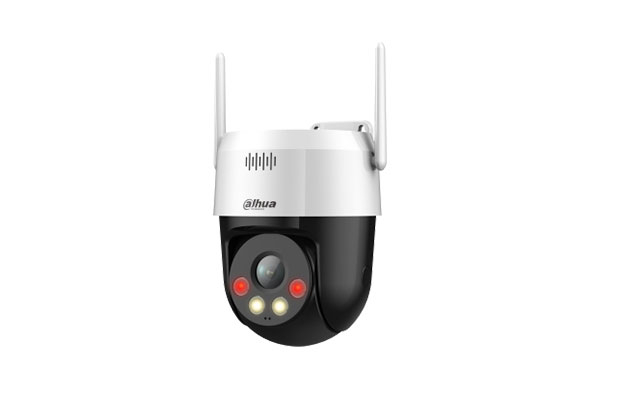

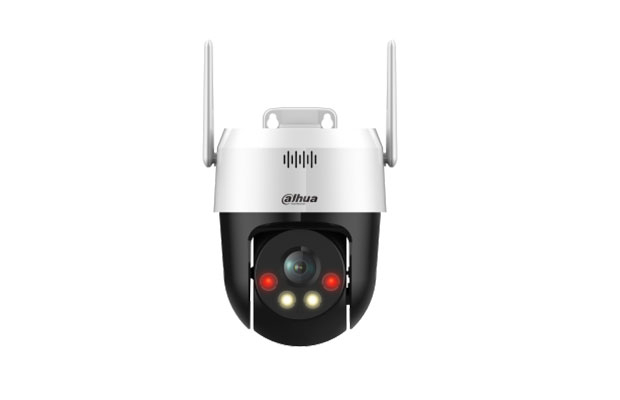

Dahua SD2A500HB-GN-AW-PV-S2 5MP Full-color Network WIFI PT Camera

~~$ 94.00~~ $ 89.00

Part Number: SD2A500HB-GN-AW-PV-S2
2MP Full-color Network PT Camera
1/2.8" 2Megapixel CMOS.
Max. 20 fps@5MP.
Human detection.
Tripwire, intrusion.H.265 encoding.
Wi-Fi, Two-way talk.
Sound and light alarm.
IR and white light, three night view modes.
IP66.
Warranty: 1-year on part.

Order Now

Specification

Part Number: SD2A200HB-GN-AW-PV-S2
Camera
Image Sensor: 1/2.8" CMOS
Pixel: 5 MP
Max. Resolution: 2560 (H) × 1920 (V)
ROM: 128 MB
RAM: 128 MB
Electronic Shutter Speed: 1/3 s–1/100,000 s
Scanning System: Progressive
Min. Illumination: Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (illuminator on)
Illumination Distance: 30 m (98.42 ft) (IR) 30 m (98.42 ft) (white light)
Illuminator On/Off Control: Manual; auto; off
Illuminator Number: 2 (IR light); 2 (White light)
Lens
Focal Length: 4.0 mm
Max. Aperture: F1.6
Field of View: H: 80.4°, V: 58.1°, D: 104.8°
Close Focus Distance: 0.3 m (0.98 ft)
Iris Control: Fixed
DORI Distance
Detect.: 77.4 m (253.94 ft)
Observe: 31.0 m (101.71 ft)
Recognize: 15.5 m (50.85 ft)
Identify: 7.74 m (25.39 ft)
PTZ
Pan/Tilt Range: Pan: 0° to 345°, Tilt: 0° to +80°
Manual Control Speed: Pan: 0.1°–74°/s, Tilt: 0.1°–36.4°/s
Preset Speed: Pan: 62°/s, Tilt: 36.3°/s
Preset: 300.0
Power-off Memory: Yes
Idle Motion: Preset
Smart Event
IVS: Tripwire; intrusion
Human Detection: Yes
Active Deterrence
Light Warning: White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low
Sound Warning: Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s
Video
Video Compression: H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability: 2 streams
Resolution: 5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate
Main stream: 5M(1–20 fps),4M/1080p/1.3M/720p (1–25/30 fps)
Sub stream: D1/CIF (1–25/30 fps)
Bit Rate Control: CBR/VBR
Video Bit Rate: H264: 512–8192 kbps; H265: 233–7680 kbps
Day/Night: Auto (ICR)/Color/B/W
BLC: Yes
WDR: DWDR
HLC: Yes
White Balance: Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light
Gain Control: Auto; manual
Noise Reduction: 2D NR; 3D NR
Motion Detection: Yes
Image Rotation: 180°
S/N Ratio: ≥ 55 dB
Audio
Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1
Network
Network Port: RJ-45 (10/100 Base-T)
Wi-Fi: Yes
Wi-Fi–Wireless Standard: 802.11n;IEEE802.11b;802.11g
Wi-Fi–Wireless Frequency Range: 2.4GHz
Wi-Fi–Wireless Transmission Rate: 150Mbps
Network Protocol: UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP
Interoperability: RTMP;CGI;SDK;ONVIF (Profile S&T);P2P
Streaming Method: Unicast/Multicast
User/Host: 20
Storage: Micro SD card (support max. 512 GB); FTP
Browser IE: IE 7 and later versions; Chrome; Firefox; Safari
Management Software: Player;Smart Player ;Imou;DMSS;ConfigTool;NVR;Smart PSS
Mobile Client: iOS; Android
Certification
Certification CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1
FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
Port
Audio Input: 1 channel (built-in mic)
Audio Output: 1 channel (built-in speaker)
Two-way Audio: Yes
Alarm Linkage: Capture; preset; recording; audio; sending email
Alarm Event: Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Audio I/O: 1/1
Power
Power Supply: 12 VDC/1.5 A±10%
Power Consumption: Basic: 3.5 W, Max.: 11 W (illuminator)
Environment
Operating Temperature: –30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity: ≤ 95%
Protection: IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions: 140.5 mm × Φ111.0 mm (5.53" × Φ4.45")
Net Weight: 0.5 kg (1.10 lb)
Gross Weight: 1 kg (2.20 lb).
