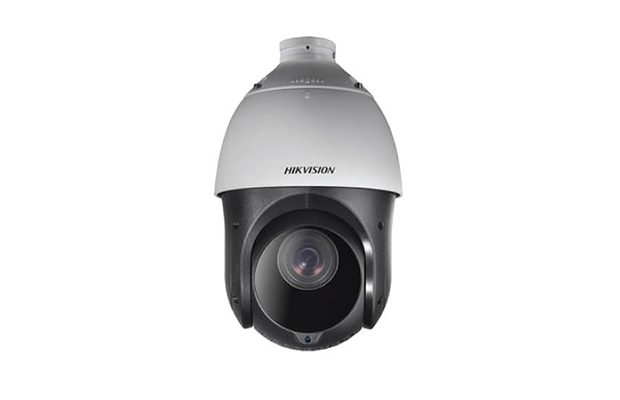

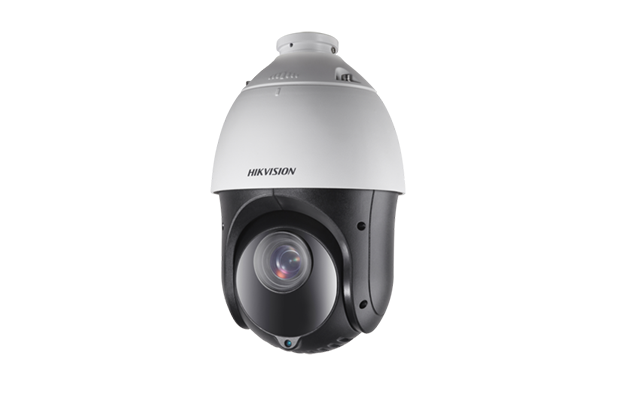

Hikvision DS-2AE4225TI-D Dome Camera

~~$ 270.00~~ $ 255.00

Part Number: DS-2AE4225TI-D
4-inch 2 MP 25X Powered by DarkFighter IR Analog Speed Dome
High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Clear imaging against strong back lighting due to 120 dB WDR technology
Pan and tilt ability enables camera to monitor zones of interest
25 × optical zoom allows for closer viewing of subjects in expansive areas
Up to 100 m IR range ensures safety at night
Water and dust resistant (IP66)
Warranty: 1 Year on part

Order Now

Specification

Part Number: DS-2AE4225TI-D
Brand: Hikvision
Image Sensor: 1/2.8" Progressive Scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.05Lux@( F1.4,AGC ON); B/W: 0.005Lux@( F1.4,AGC ON), 0 Lux with IR
White Balance: Auto / Manual / ATW / Indoor / Outdoor
AGC: Auto/Manual
BLC: ON/OFF
WDR: Support
Shutter Time: 1-1/10,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 8 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manua
Focal Length: 4-92.0mm, 23x
Zoom Speed: Approx.3s(Optical Wide~Tele)
Angle of View: 49-2.2 degree(Wide-Tele)
Minimum Working Distance: 10~1,000mm(Wide~Tele)
Aperture Range: F1.4-F3.5
Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
Tilt Range: -15°-90° (Auto Flip )
Tilt Speed: Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 256
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the total recording time not less than 10 minutes
Power loss recovery: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Freeze Frame: Support
IR irradiation distance: 100m
IR irradiation angle: Adjustable by zoom
RS-485 Protocols: HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language: English
Power Supply: 12V DC
Power Consumption: Max.18W
Working Temperature/Humidity: -30 °C-65°C(-22°F-149°F) 90% or less
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional
Dimensions: Φ164.5(mm)×295(mm)
Weight (approx.): 2Kg (4.41Ibs)
Mount Option: Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
Warranty: 1 Year on part
