Dahua IPC-HDW2441T-S 4MP IR Fixed-focal Eyeball WizSense Network Camera

~~$ 78.00~~ $ 73.00

Part Number: IPC-HDW2441T-S
4-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
Outputs max. 5 MP (2592 × 1944) @20 fps, and supports 4 MP (2688 × 1520) @25/30 fps.
H.265 codec, high compression rate, ultra-low bit rate.
Built-in IR LED, and the max. illumination distance is 30 m.
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
Intelligent monitoring: Intrusion and tripwire(the two functions support the classification and accurate detection of vehicle and human).
Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Supports max. 256 G Micro SD card;built in MIC.
12 VDC/PoE power supply, easy for installation.
IP67 protection.
SMD Plus.;Premiter Protection(human and vehicle)
Warranty: 1-year on part.

Order Now

Specification

Part Number: IPC-HDW2441T-S
Camera
Image Sensor: 1/2.9" CMOS
Max. Resolution: 2688 (H) × 1520 (V)
ROM: 128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.006 lux@F1.6 (Color, 30IRE)
0.0006 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on)
S/N Ratio: >56 dB
Illumination Distance: 30 m (98.43 ft) (IR LED)
Illuminator On/Off Control: Auto; manual
Illuminator Number: 1 (IR LED)
Pan/Tilt/Rotation Range
- Pan: 0°–360°
- Tilt: 0°–78°
- Rotation: 0°–360°
LENS
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: F1.6
Field of View: 2.8 mm: H: 95°; V: 52°; D: 114° & 3.6 mm: H: 78°; V: 41°; D: 94°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 0.9 m (2.95 ft) & 3.6 mm: 1.6 m (5.25 ft)
DORI Distance
Lens: 2.8 mm & 3.6 mm
Detect: 63.6 m (208.66 ft) & 85.4 m (280.18 ft)
Observe: 25.4 m (83.33 ft) & 34.2 m (112.20 ft)
Recognize: 12.7m (41.67 ft) & 17.1 m (56.10 ft)
Identify: 6.4 m (20.99 ft) & 8.5 m (27.89 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Intelligence
IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
VIDEO
Video Compression: H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate
Main stream: 2688 × 1520@ (1–20 fps)/2560 × 1440@(1–25/30 fps)
Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability: 2 streams
Resolution: 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night: Auto (ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto; manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror: Yes
Privacy Masking: 4 areas
Audio
Built-in MIC: Yes
Audio Compression: G.711a; G.711Mu; PCM; G.726
Alarm: Alarm Event
No SD card; SD card full; SD card error; network
disconnecton; IP conflict; illegal access; moton
detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton
Network
Network Port: RJ-45 (10/100 Base-T)
SDK and API: Yes
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI
User/Host: 6 (Total bandwidth: 36 M)
Storage: FTP; SFTP; Micro SD card (support max. 256 GB)
Browser: IE; Chrome; Firefox
Management Software: DSS; DMSS
Mobile Client: iOS; Android
Cyber Security: Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply: 12 VDC/PoE (802.3af)
Power Consumption: Basic: 2.5 W (12 VDC); 3.3 W (PoE);
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE)
Environment
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity: ≤95%
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Protection: IP67
Structure
Casing Material: Inner core: Metal & Cover: Plastic
Product Dimensions: 100.9 mm × Φ109.9 mm (3.97" × Φ4.33")
Net Weight: 0.37 kg (0.82 lb)
Gross Weight: 0.56 kg (1.23 lb).

Dahua IPC-HDW2441T-S 4MP IR Fixed-focal Eyeball WizSense Network Camera

Specification

Related Products

Dahua HAC-HDW1239TLQ-A-LED 2MP Full-color Starlight HDCVI Quick-to-install Eyeball Camera

Ubiquiti UVC-G4-BULLET G4 Bullet (4MP) indoor/outdoor bullet camera

Uniview IPC2324EBR5-DPZ28 4MP VF Network IR Bullet Camera

Hikvision DS-2CE78H0T-IT3FS 5MP Audio Fixed Turret Camera

Dahua HAC-HFW1200THP-I4-A 2MP HDCVI IR Bullet Camera

Uniview UAC-T115-F28-W 5MP ColorHunter Fixed Warm Light Turret Analog Camera

Dahua IPC-HDBW2541E-S 5MP IR Fixed-focal Dome WizSense Network Camera

Hikvision IP Camera DS-2CD2163G2-IU

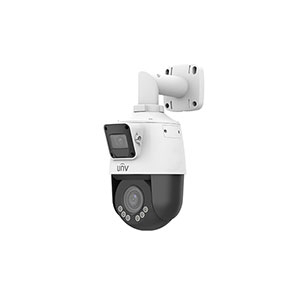

Uniview IPC9312LFW-AF28-2X4 2MP Lighthunter Dual-lens Network PTZ camera
