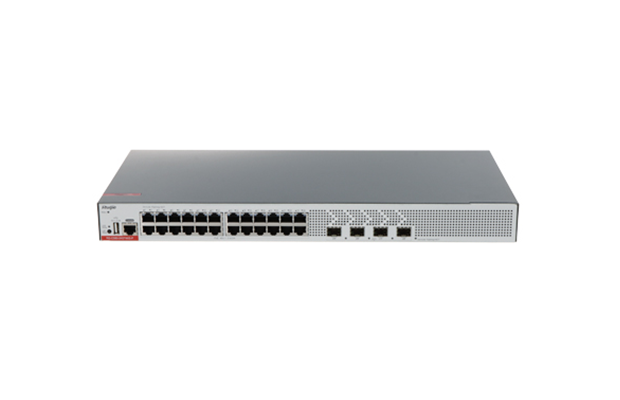

Ruijie RG-CS83-24GT4XS-P L3-Managed POE Switch 24-Port, 4Port 10G SFP+

~~$ 460.00~~ $ 449.00

Part Number: RG-CS83-24GT4XS-P
Layer 3 Managed POE Switch 24-Port Gigabit, 4 Port SFP+ speed 10Gbps
24 x 100M/1000M BASE-T ports
Supports Dynamic Routing OSPF, RIP
Surge protection 6kV
POE standard af/at up to 370W.
Supports Managed via Ruijie Cloud.
Warranty: 2years on part

Order Now

Specification

Part Number: RG-CS83-24GT4XS-P
Hardware Specifications
Fixed ports:
-24 x 100M/1000M BASE-T ports
-4 x 1GE/10GE SFP+ ports support POE+
Fan module: 1 x fixed fan module
Power module: 1 x fixed power module
Fixed management port: 1 x console, and 1 x USB 2.0 port
Packet forwarding rate: 132 Mpps
Switching capacity: 176 Gbps
System Switching capacity: 432 Gbps
MAC address table size: 16000
ARP table size: 4,000
Number of IPv4 multicast routes: 6,000
Number of IPv4 unicast routes: 4,000
Number of IPv6 multicast routes: 750
Number of IPv6 unicast routes: 2,000
Number of ACEs: Ingress: 1,750, Egress: 800
Number of VSU members: 4
Dimensions and Weight
Dimensions (W x D x H): 442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)
Weight: 3 kg (6.61 lbs)
CPU and Storage
CPU: 1.0 GHz dual-core CPU
Flash memory: 512 MB
BootROM: 16 MB
SDRAM: 1 GB
Data packet buffer: 4 MB
Power and Consumption
Maximum power consumption: < 35 W (non-PoE), < 405 W (PoE full load)
Maximum output power: 409 W Maximum PoE output :370W
Rated input voltage: 100 V AC to 240 V AC
Maximum input voltage: 90 V AC to 264 V AC, 50 Hz to 60 Hz
Environment and Reliability
MTBF: 23.94 years
Primary airflow: Front-to-right and left-to-right airflow Natural heat dissipation for fanless design
Operating temperature: 0°C to 45°C (32°F to 113°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
Operating humidity: 10% to 90% RH (non-condensing)
Storage humidity: 5% to 95% RH (non-condensing)
Operating noise: 27℃: < 35 dB
Interface surge protection: Power port: 6 kV(common mode)/8 kV (differential mode) Communication port: 10 kV
Software Specifications
Feature Description
*Ethernet switching:
-Jumbo frame (maximum length: 9,216 bytes)
-IEEE 802.1Q (4K VLANs)
-Voice VLAN
-Super-VLAN and private VLAN
-MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN
-GVRP
-Basic QinQ
-Selective QinQ
-STP, RSTP, and MSTP
-ERPS (G.8032)
-LLDP/LLDP-MED
*IP service:
-ARP
-DHCP client, DHCP relay, and DHCP server
-DHCP snooping
-DNS
-DHCPv6 client, DHCPv6 relay, and DHCPv6 server
-DHCPv6 snooping
-Neighbor Discovery (ND) and ND snooping
*IP routing:
-Static routing
-RIP and RIPng
-OSPFv2 and OSPFv3
-IPv4 and IPv6 VRF
-IPv4 and IPv6 PBR
-Multicast
-IGMP v1/v2/v3, and IGMP proxy
-IGMP v1/v2 snooping
-PIM-DM, PIM-SM, and PIM-SSM
-MSDP
-MLD v1/v2
-MLD snooping v1/v2
-PIM-SMv6 and PIM-SSM v6
*ACL and QoS:
-Standard IP ACLs
Extended IP ACLs
Extended MAC ACLs
Time-based ACLs
Expert-level ACLs
ACL80
IPv6 ACLs
-ACL redirection
-Traffic rate limiting on an interface
-Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ
-Congestion avoidance: tail drop
-802.1p/DSCP/ToS traffic classification Eight priority queues per interface
*Security:
-Multiple AAA modes
-RADIUS and TACAS+
-Interface-based and MAC address-based 802.1x authentication
-Web authentication
-HTTPS
-SSHv1 and SSHv2
-Global IP-MAC binding
-Port isolation and port security
-IP source guard
-SAVI
-CPP and NFPP
*Reliability:
-REUP, RLDP, DLDP
-IPv4 VRRP v2/v3 and IPv6 VRRP
-BFD
-Link tracing, fault notification, and remote loopback based on 802.3ah (EFM)
-Hot swapping of power modules and cables
-Fan speed adjustment
*Device virtualization:
-Virtual Switching Unit (VSU)
*NMS and maintenance:
-SPAN, RSPAN
-sFlow
-NTP and SNTP
-FTP and TFTP
-SNMP v1/v2/v3
-RMON (1, 2, 3, 9)
-NETCONF
-CWMP (TR-069)
-gRPC
-Cloud and SON
*PoE: RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P: IEEE 802.3af and 802.3at
Warm start Interface priority
Warranty: 2years on part
