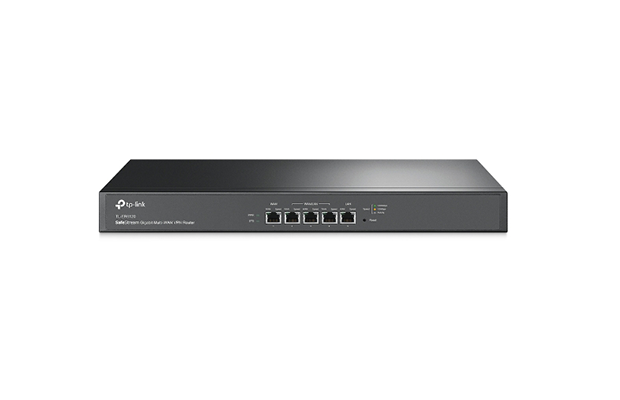

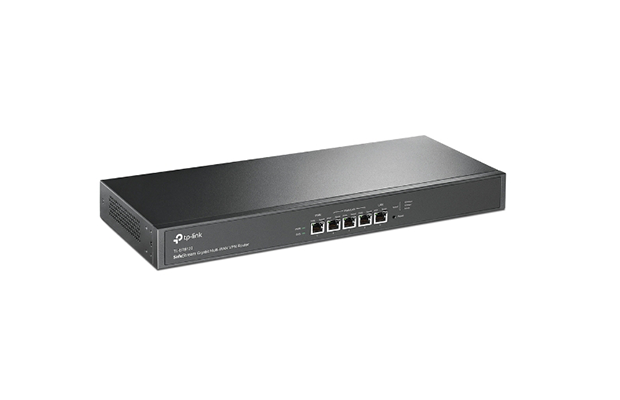

TP-Link TL-ER6120 SafeStream Gigabit Multi-WAN VPN Router

$ 236.00 $ 225.00
  • Part Number: TL-ER6120
  • 64-bit network dedicated processor, 512MB DDRIII high-speed memory, for higher business network performance
  • Equipped with 1 Gigabit WAN port, 3 Gigabit WAN/LAN ports and 1 Gigabit LAN port
  • Supports multiple VPN protocols including IPsec/PPTP/L2TP, helping users to establish VPN connections more flexibly
  • Supports up to 100 IPsec VPN tunnels with a hardware-based VPN engine
  • Captive portal provides a convenient method for guest authentication
  • Abundant features including load balance, bandwidth control and access control
  • Professional 4KV lightning protection keeps your investments as safe as possible
  • Warranty: 3 Year on part.
Order Now

Specification

  • Part Number: TL-ER6120
  • SECURITY
  • Access Control: Source/Destination IP Based Access Control
  • Filtering: MAC Filtering
  • URL/Keywords: Filtering
  • ARP Inspection:
  • -Sending GARP Packets
  • -ARP Scanning by WAN/LAN
  • -IP-MAC Binding
  • Attack Defense:
  • -TCP/UDP/ICMP Flood Defense
  • -Block TCP Scan (Stealth FIN/Xmas/Null)
  • -Block Ping from WAN
  • HARDWARE FEATURES
  • Standards and Protocols:
  • IEEE 802.3, IEEE802.3u, IEEE802.3ab
  • TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
  • Interface:
  • 1 Gigabit WAN port
  • 3 Gigabit WAN/LAN ports
  • 1 Gigabit LAN port
  • Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100m)
  • EIA/TIA-568 100Ω STP (Max 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
  • Button: Reset Button
  • Power Supply: Internal Universal Power Supply, AC100-240V~ 50/60Hz Input
  • Flash: 32MB
  • DRAM: DDRIII 512MB
  • LED: PWR, SYS, Link/Act, Speed
  • Dimensions ( W x D x H ): 17.3x7.1x1.7 in.(440x180x44 mm)
  • PERFORMANCE
  • Concurrent Session: 150000
  • NAT(iMIX): 936Mbps
  • NAT(DHCP): 878Mbps
  • NAT(PPPoE): 665Mbps
  • IPsec VPN Throughput (AES256): 373Mbps
  • BASIC FUNCTIONS
  • WAN Connection Type:
  • Static/Dynamic IP,
  • PPPoE/Russian PPPoE,
  • PPTP/Russian PPTP,
  • L2TP/Russian L2TP,
  • Bigpond Cable
  • MAC Clone: Modify WAN MAC Address
  • DHCP: DHCP Server/Client
  • DHCP: DHCP Reservation
  • IPv6: IPv6 Support
  • VLAN: 802.1Q VLAN, Port VLAN
  • IPTV: Bridge, Custom
  • ADVANCED FUNCTIONS
  • Load Balance:
  • Intelligent Load Balance
  • Link Backup (Timing, Failover)
  • Online Detection
  • NAT:
  • -One-to-One NAT
  • -Multi-nets NAT
  • -Virtual Server, Port Triggering, UPnP
  • -FTP/H.323/SIP/IPsec/PPTP ALG
  • Routing:
  • -Static Routing
  • -Policy Routing
  • Traffic Control:
  • -IP-based Bandwidth Control
  • -IP-based Session Limit
  • VPN
  • IPsec VPN:
  • 100 IPsec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
  • MD5, SHA1 Authentication Algorithm
  • IPsec NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
  • PPTP VPN:
  • 50 PPTP VPN Tunnels
  • PPTP VPN Server/Client
  • PPTP with MPPE Encryption
  • L2TP VPN:
  • 50 L2TP VPN Tunnels
  • L2TP VPN Server/Client
  • L2TP over IPsec
  • VPN Pass-through: IPsec (ESP), PPTP, L2TP
  • MANAGEMENT
  • Service: Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
  • Maintenance:
  • Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP
  • Diagnostics(Ping & Traceroute)
  • NTP Synchronize
  • Syslog Support
  • Web-based Management:
  • Local User Authentication,
  • Radius Sever Authentication,
  • Onekey Online
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Contents: TL-ER6120
  • Power Cord
  • Rack-mount Kit
  • Installation Guide
  • System Requirements:
  • -Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
  • -MAC OS, NetWare, UNIX or Linux
  • Environment:
  • -Operating Temperature: 0℃~40℃ (32℉~104℉)
  • -Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • -Operating Humidity: 10%~90% non-condensing
  • -Storage Humidity: 5%~90% non-condensing
  • Warranty: 3 Year on part.
