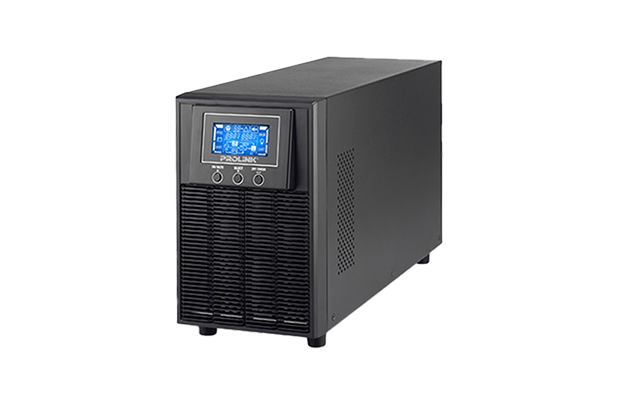

PROLINK 2KVA PRO802-ES UPS Online

~~$ 410.00~~ $ 400.00

Part Number: PRO802-ES
Capacity: 2KVA: 2000VA / 1800W
Battery: 7Ahx6
UPS type: Tower
Input phase: Single phase with ground
Front panel: Status LED, function keys, LCD display
Communication: Smart RS232, USB port and Emergency Power Off (EPO)
LCD indicators: Load level, battery level, AC mode, battery mode, bypass mode, and fault
Warranty: 2Year on part

Specification

Part Number: PRO802-ES
*GENERAL
UPS Type: Tower
Phase Single phase with ground
Rating (VA): 2000
Nominal Power (W): 1800
Standard Model Dimension (mm): 421 x 190 x 318 (D x W x H)
Weight (kg): 25.8
*INPUT
Connection Type: IEC 320-C14
Nominal Voltage: 200/208/220/230/240 VAC
Voltage Range: 110-300 VAC (Based on load at 50%) 160-300 VAC (Based on load at 100%)
Frequency Range: 40 Hz ~ 70 Hz
Power Factor: ≧0.99
THDi: ≦ 5% @100~130VAC or 205-245VAC THDU < 1.6% @ input and full linear load condition with battery fully charged
*OUTPUT
Connection Type: 8 x IEC 320-C13
Nominal Voltage: 200/208/220/230/240 VAC
Voltage Regulation: ±1%
Frequency Range (Synchronized Range): 47~53 Hz or 57~63 Hz
Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio: 3:1
Harmonic Distortion: ≦2% THD (Linear load) ≦4% THD (Non-linear load)
*ALARM & INDICATORS
Battery Mode: Sounding every 4 second
Low Battery: Sounding every second
Overload: Sounding twice every second
Fault: Continuously sounding
LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
*CONNECTIVITY, CONTROL & MONITORING
Front panel: Status LED, Function keys, LCD display
Communication: Smart RS232* USB Port Emergency Power Off (EPO)
*BATTERY
Standard Model Type: 12V / 7Ah
Numbers: 6
Typical Recharge Time: 4 hours recover to 90% capacity
Warranty: 2Year on part
