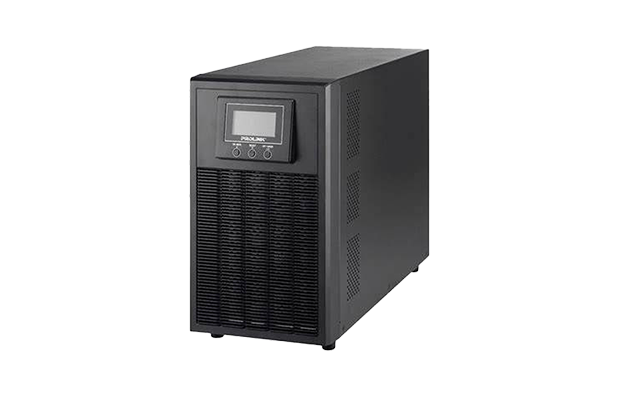

UPS Prolink 1KVA PRO801-ES Master II Online

~~$ 300.00~~ $ 289.00

Part Number: 1KVA PRO801-ES
Capacity: 1KVA: 1000VA / 900W
Battery: 7Ahx3
UPS type: Tower
Input phase: Single phase with ground
Front panel: Status LED, function keys, LCD display
Communication: Smart RS232, USB port and Emergency Power Off (EPO)
LCD indicators: Load level, battery level, AC mode, battery mode, bypass mode, and fault
Warranty: 2-years on part.

Specification

Part Number: 1KVA PRO801-ES
*GENERAL
- UPS Type: Tower
- Phase: Single phase with ground
- Rating (VA): 1000
- Nominal Power (W): 900
- Standard Model Dimension (mm): 397 x 145 x 220 (D x W x H)
- Weight (kg): 5.8
*INPUT
- Connection Type: IEC 320-C14
- Nominal Voltage: 200/208/220/230/240 VAC
- Voltage Range: 110-300 VAC (Based on load at 50%) 160-300 VAC (Based on load at 100%)
- Frequency Range: 40 Hz ~ 70 Hz
- Power Factor: ≧0.99
- THDi: ≦ 5% @100~130VAC or 205-245VAC THDU < 1.6% @ input and full linear load condition with battery fully charged
*OUTPUT
- Connection Type: 4 x IEC 320-C13
- Nominal Voltage: 200/208/220/230/240 VAC
- Voltage Regulation: ±1%
- Frequency Range (Synchronized Range): 47~53 Hz or 57~63 Hz
- Frequency Range (Batt. Mode): 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
- Current Crest Ratio: 3:1
- Harmonic Distortion: ≦2% THD (Linear load) ≦4% THD (Non-linear load)
*ALARM & INDICATORS
- Battery Mode: Sounding every 4 second
- Low Battery: Sounding every second
- Overload: Sounding twice every second
- Fault: Continuously sounding
- LCD: Load level, Battery Level, AC mode, Battery mode, Bypass mode and Fault
CONNECTIVITY, CONTROL & MONITORING
- Front panel: Status LED, Function keys,LCD display
- Communication: Smart RS232* USB Port Emergency Power Off (EPO)
*BATTERY
- Standard Model Type: 12V / 7Ah
- Numbers: 3
- Typical Recharge Time: 4 hours recover to 90% capacity
Warranty: 2-years on part.
