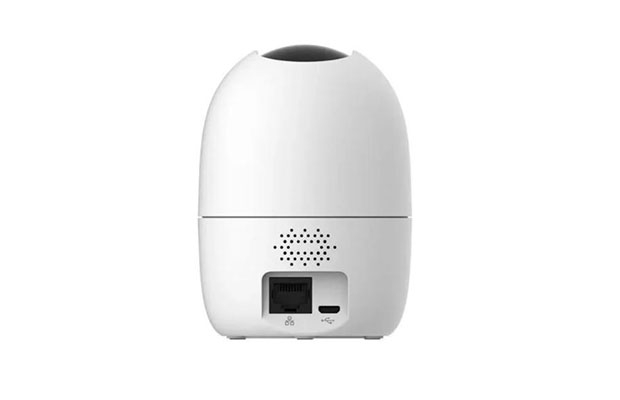

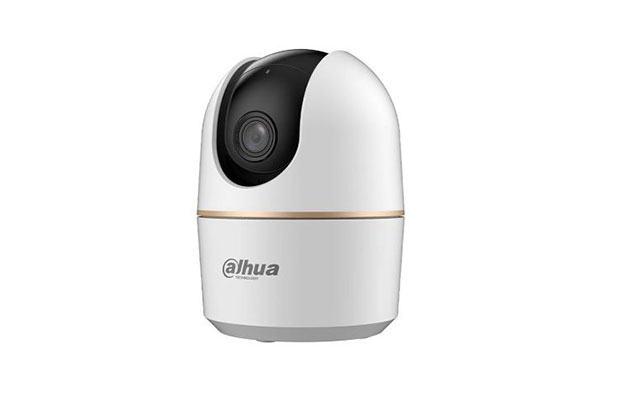

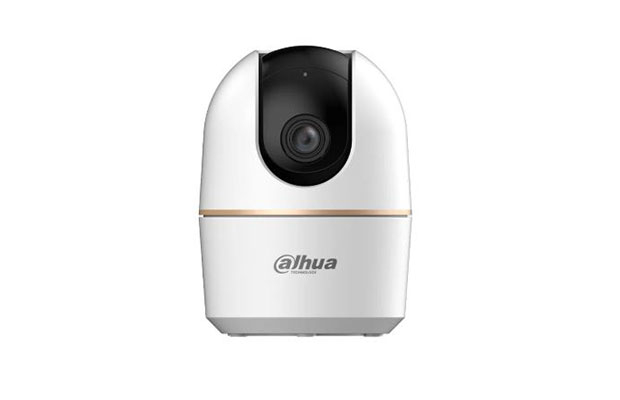

Dahua DH-H2A 2MP Indoor Fixed-focal Wi-Fi Pan & Tilt Network Camera

$ 36.00 $ 32.00
  • Part Number: DH-H2A
  • 2-MP 1/3.2" CMOS image sensor, low luminance, and high definition image.
  • Outputs max. 2 MP @25 fps.
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, and the max. IR illumination distance is 15 m.
  • Supports max. 256 G Micro SD card; built-in Mic; built-in speaker.
  • 5 VDC power supply.
  • Supports Wi-Fi.
  • Supports motion detection, human detection.
  • Storage: Micro SD card (up to 256 GB)
  • Warranty: 1-year on part.

Specification

  • Part Number: DH-H2A
  • Camera
  • Image Sensor: 1/3.2" CMOS
  • Max. Resolution: 2 MP
  • Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
  • Illumination Distance: Up to 15 m (49.21 ft) (IR)
  • Illuminator On/Off Control: Auto
  • Illuminator Number: 1 (IR LED)
  • Angle Adjustment: Pan: 0° to 355°; Tilt: -5° to +80°
  • Lens
  • Max. Aperture: 3.6 mm: F2.0
  • Field of View: 3.6 mm: H: 79°; V: 43°; D: 94°
  • Video
  • Video Compression: H.265
  • Video Frame Rate
  • Main stream: 1920 × 1080 @25 fps
  • Sub stream: 640 × 480 @25 fps
  • Resolution: 2 MP ; VGA (640 × 480)
  • Video Bit Rate: H.265: 80 kbps–4096 kbps
  • Day/Night: Auto(ICR)/Color/B/W
  • WDR: DWDR
  • Motion Detection: OFF/ON (4 areas, rectangular)
  • Image Rotation: 0°/180°
  • Audio
  • Built-in MIC: Yes, built-in Mic
  • Built-in Speaker: Yes, built-in speaker
  • Audio Compression: G.711a
  • Alarm
  • Alarm Event: No SD card; SD card full; SD card error; network disconnection; motion detection; audio detection
  • Network
  • Network Port: RJ-45 (10/100 Base-T)
  • Wi-Fi: IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G
  • Storage: Micro SD card (up to 256 GB)
  • Management Software: DMSS
  • Mobile Client: iOS;Android
  • Certification
  • Certifications: CE
  • Power
  • Power Supply: 5 VDC, 1A
  • Power Consumption: Basic: 1.7 W; Max. (video stream acquiring + IR + PTZ Rotation): 3.5 W
  • Environment
  • Operating Temperature: –10 °C to +45 °C (+14 °F to +113 °F)
  • Operating Humidity: ≤ 95%
  • Structure
  • Casing Material: Plastic
  • Product Dimensions: φ77.8 mm × 108.1 mm (φ3.06" × 4.26")
  • Net Weight: 204.2 g (0.45 lb).
