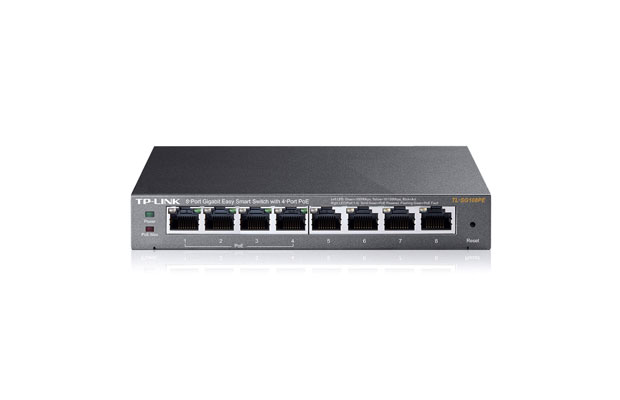

TP-Link TL-SG108PE 8-Port Gigabit Easy Smart Switch with 4-Port PoE

~~$ 50.00~~ $ 46.00

Part Number: TP-Link TL-SG108PE
8 10/100/1000Mbps RJ45 ports
With 4 PoE ports, data and power can be transferred on one single cable
Supports PoE power up to 57W for all PoE ports*
Provides network monitoring, traffic prioritization and VLAN features
Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Warranty: 3 Year on part.

Order Now

Specification

HARDWARE FEATURES:
Standards and Protocols:
IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3x
IEEE 802.1q
IEEE 802.1p
Interface:
8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX
Network Media:
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Power Supply: External Power Adapter(Output: 48VDC / 1.25A)
Power Consumption: Maximum (PoE on): 65.2W (220V/50Hz), Maximum (PoE off): 5.2W (220V/50Hz)
PoE Ports (RJ45): Standard: 802.3 af compliant, PoE Ports: Port 1- Port 4, PoE Power Budget: 55W
PERFORMANCE:
Switching Capacity: 16Gbps
Packet Forwarding Rate: 11.9Mpps
MAC Address Table: 4K
Packet Buffer Memory: 1.5Mb
Jumbo Frame: 15KB
SOFTWARE FEATURES:
Quality of Service:
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features:
IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs), MTU/Port/Tag VLAN
Management: Web-based GUI, Easy Smart Configuration Utility
Transmission Method: Store-And-Forward
OTHERS:
Certification: FCC, CE, RoHS
Package Contents:
TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet
System Requirements:
Microsoft® Windows® for running Utility
Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing
Warranty: 2 Years on part
