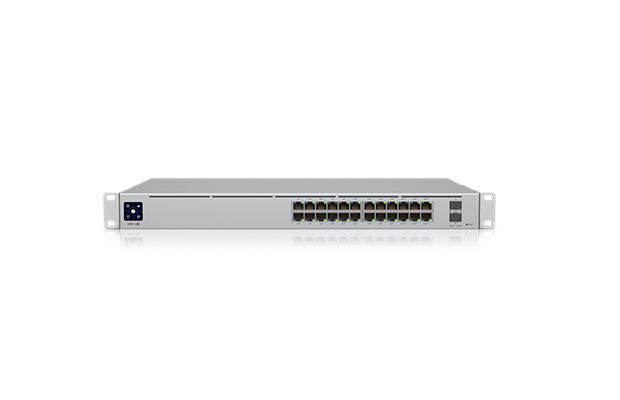

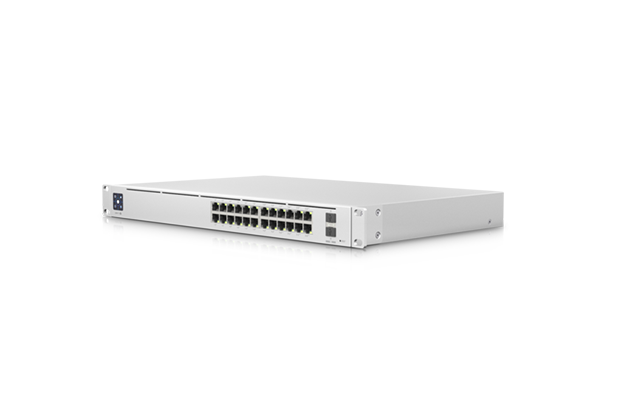

UniFi USW-Pro-24-POE-EU 24Port-PoE Layer3 Switch
$ 896.00
$ 885.00
Part Number: USW-Pro-24-POE-EU
(16) GbE PoE+, (8) GbE PoE++ ports
(2) 10G SFP+ ports
400W total PoE availability
DC power backup-ready
Layer 3 switching
Near-silent cooling
Warranty: 1 year on part
Order Now
Specification
Part Number: USW-Pro-24-POE-EU
Mechanical
Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
Weight: Without mounting brackets: 4.3 kg (9.5 lb) With mounting brackets: 4.4 kg (9.7 lb)
Enclosure material: SGCC steel
Hardware
Management interface: Ethernet In-Band
Networking interface:
(24) GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface:
(16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput: 44 Gbps
Switching capacity: 88 Gbps
Forwarding rate: 65.472 Mpps
Power method:
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input, 52V DC, 7.69A; 11.5V DC, 2.61A
Power supply: AC/DC, internal, 450W
Supported voltage range: 100—240V AC
Max. power consumption: 50W (Excluding PoE output)
Total available PoE: 400W
Max. PoE wattage per port by PSE:
PoE+: 32W
PoE++: 64W
Voltage range PoE mode:
PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
LCM display: (1) 1.3" touchscreen
Button: Factory reset
Shock and vibration: ETSI300-019-1.4 Standard
Ambient operating temperature: -5 to 40° C (23 to 104° F)
Ambient operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
Switching Features
Layer 2 features:
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features:
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System: Status
Ethernet: PoE
Speed/link/activity
SFP+: Link/activity
RPS: Status
Application Requirements
UniFi Network: Version 5.10.5 and later
Warranty: 1 year on part
