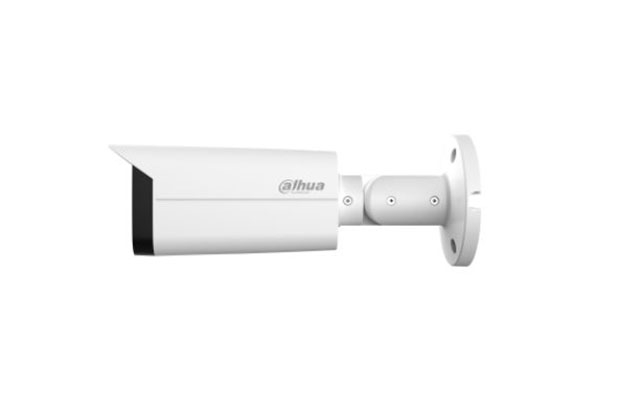

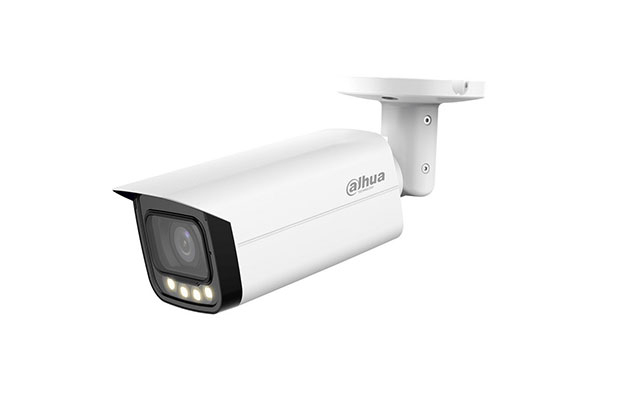

Dahua HAC-HFW1509TU-Z-A-LED 5MP Full-Color HDCVI Motorized Vari-focal Bullet Camera

~~$ 80.00~~ $ 75.00

Part Number: HAC-HFW1509TU-Z-A-LED
Max 25 fps@5MP (16:9 video output)
120 dB true WDR, 3DNR
24/7 color imaging
60 m illumination distance
CVI/CVBS/AHD/TVI switchable
Built-in mic
Auto focus, 2.7 mm–13.5 mm motorized lens
IP67, 12 V±30% DC
Warranty: 1-year on part.

Order Now

Specification

Part Number: HAC-HFW1509TU-Z-A-LED
Camera
Image Sensor: 5MP CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Pixel: 5MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s
S/N Ratio: > 65 dB
Min. Illumination: 0.001 Lux/F1.2, 0 Lux White Light on
Illumination Distance: 60 m (196.9 ft)
Illuminator On/Off Control: Auto; manual
Illuminator Number: 4
Pan/Tilt/Rotation Range: Pan: 0°–360°; Tilt: 0°–90° & Rotation: 0°–360°
Lens
Lens Type: Motorized Vari-focal
Mount Type: φ14
Focal Length: 2.7 mm–13.5 mm
Max. Aperture: F1.2
Field of View: H: 35°–112°; V: 19°–58°; D: 40–137°
Iris Type: Fixed iris
Close Focus Distance: 1.5 m (4.9 ft)
DORI Distance:
Lens: 2.7 mm; 13.5 mm
Detect: 65.2 m (213.9 ft) & 186.6 m (612.2 ft)
Observe: 26 m ( 85.3 ft) & 74.6 m (244.8 ft)
Recognize: 13 m (42.7 ft) & 37.3 m (122.4 ft)
Identify: 6.5 m (21.3 ft) & 18.6 m (61 ft)
Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC: BLC/HLC/WDR/HLC-Pro
WDR: 120 dB
White Balance: Auto; Area WB
Gain Control: Auto; manual
Noise Reduction: 3D NR
Smart Light: Yes
Mirror: Off/On
Privacy Masking: Off/On (8 area, rectangle)
Certifications
Certifications: CE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input: One channel built-in mic
Power
Power Supply: 12 V ±30% DC
Power Consumption: Max 11.88 W (12 V DC, warm light on)
Environment
Operating Temperature: –30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)
Storage Temperature: –30 °C to +60 °C (–22 °F to 140 °F); < 95% (noncondensation)
Protection Grade: IP67
Structure
Casing: Metal throughout the whole casing
Camera Dimensions: 244.1 mm × 90.4 mm × 90.4 mm (9.61" × 3.56" × 3.56")
Net Weight: 0.79 kg (1.74 lb)
Gross Weight: 1.04 kg (2.29 lb).
