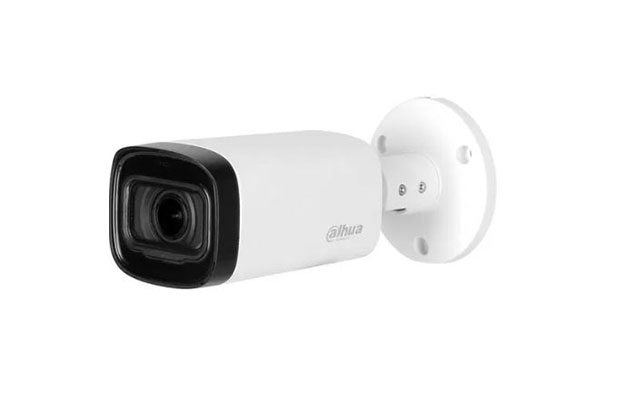

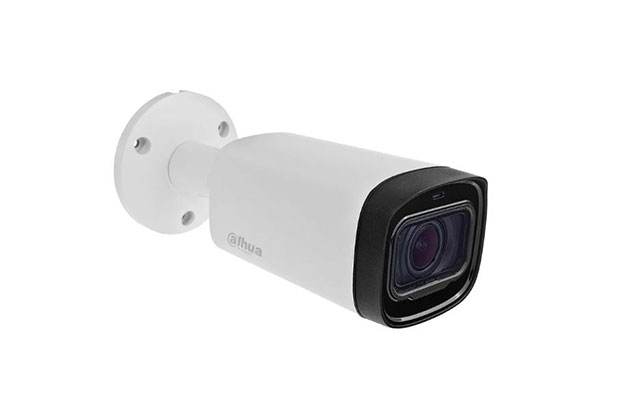

Dahua HAC-HFW1500RP-Z-IRE6-A 5MP Starlight HDCVI IR Bullet Camera

~~$ 68.00~~ $ 63.00

Part Number: HAC-HFW1500RP-Z-IRE6-A
Max 25 fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.7-12 mm motorized lens
Built-in mic
Max. IR length 60 m, Smart IR
IP67, DC12V
Warranty: 1-year on part.

Order Now

Specification

Part Number: HAC-HFW1500RP-Z-IRE6-A
Camera
Image Sensor: 1/2.7 inch CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Pixel: 5MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s & NTSC: 1/30 s–1/100,000 s
S/N Ratio: > 65 dB
Min. Illumination: 0.005 Lux/F1.6, 30IRE, 0 Lux IR on
Illumination Distance: 60 m (196.9 ft)
Illuminator On/Off Control: Auto; manual
Illuminator Number: 4
Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Lens
Lens Type: Motorized vari-focal
Auto Focus: N/A
Mount Type: φ14
Focal Length: 2.7 mm–12 mm
Max. Aperture: F1.6
Field of View: Diagonal: 39°–130°, Horizontal: 34°–107°, Vertical: 19°–55°
Iris Type: Fixed iris
Close Focus Distance: 0.5 m (1.64 ft)
DORI Distance:
Lens: 2.7 mm, 12 mm
Detect: 69 m (226.37 ft), 191.6 m (628.6 ft)
Observe: 27.6 m (90.55 ft), 76.64 m (251.44 ft)
Recognize: 13.8 m (45.27 ft), 38.32 m (125.72 ft)
Identify: 6.9 m (22.63 ft), 19.16 m (62.86 ft)
Video
Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night: Auto switch by ICR
BLC: BLC/HLC/DWDR
WDR: DWDR
White Balance: Auto; manual
Gain Control: Auto; manual
Noise Reduction: 2D NR
Smart IR: Yes
Mirror: Off/On
Privacy Masking: Off/On (8 areas, rectangle)
Certifications
Certifications: CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Audio Output: One channel built-in mic (-A)
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply: DC 12V ±30%
Power Consumption: Max 9.8W (12V DC, IR on)
Environment
Operating Temperature: –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Storage Temperature: –30°C to +60°C (–22°F to +140°F); < 95% (non-condensation)
Protection Grade: IP67
Structure
Casing: Metal throughout the whole casing
Camera Dimensions: 209.9 mm × 90.4 mm × 90.4 mm (8.26" × 3.56" × 3.56")
Net Weight: 0.55 kg (1.21 lb)
Gross Weight: 0.7 kg (1.54 lb).
