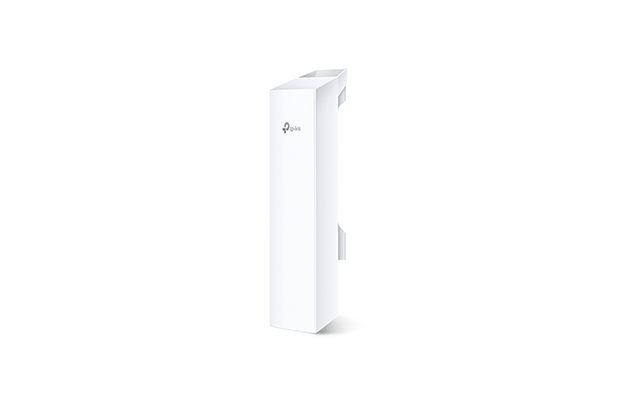

TP-Link CPE220 Outdoor 2.4GHz 300Mbps Wireless CPE

~~$ 58.00~~ $ 52.00

Part Number: TP-Link CPE220
Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
Adjustable transmission power from 0 to 30dBm/1000mw
System-level optimizations for more than 13km long-range wireless transmission
TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
Centralised Management System – Pharos Control
AP / Client / AP Router / AP Client Router (WISP) operation modes
Passive PoE Adapter supports up to 60 meters (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Warranty: 3 Year on part.

Order Now

Specification

Part Number: TP-Link CPE220
DWARE FEATURES
Processor: Qualcomm Atheros 560MHz CPU, MIPS 24Kc
Memory: 64MB DDR2 RAM, 8MB Flash

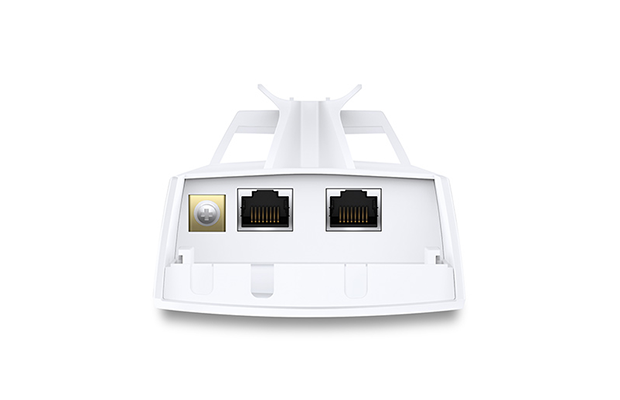

Interface:
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Power Supply:
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Power Consumption:
10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Dimensions ( W x D x H ): 11×3.1×2.1 inch (276×79×60 mm)
Antenna Type:
Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Protection:
15KV ESD Protection
6KV Lightning Protection
Enclosure:
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
WIRELESS FEATURES
Wireless Standards: IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Proprietary Protocol: TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds:
Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency:
2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
Transmission Power:
30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.
SOFTWARE FEATURES
Wireless Configurations:
Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management:
Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
System Tools:
Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
System-level Optimizations:
Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTER FEATURES
Dimensions(W x D x H): 85.8×43.9×31.9 mm
Interfaces:
1 AC Jack with Earth Ground
1 10/100/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100/1000Mbps Shielded Ethernet Port (Data)
Button: Remote Reset Button
Power Status LEDs: Green
Input: 100-240VAC, 50/60Hz
Output: 24VDC, 0.5A Max, +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Efficiency: >80%
Certifications: CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
OTHERS
Certification: CE, FCC, RoHS, IPX5
Package Contents:
Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
System Requirements:
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Environment:
Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Warranty: 3 Year on part.
