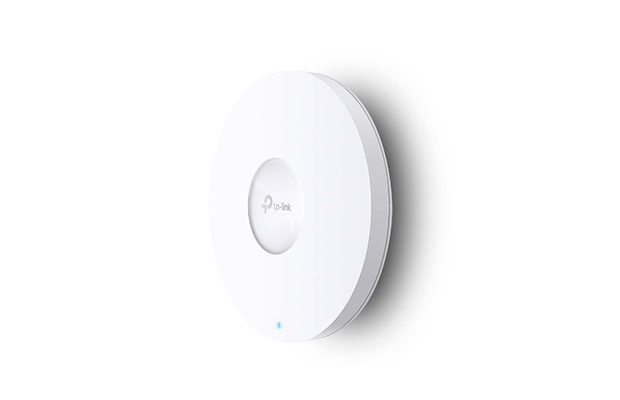

TP-Link EAP613 AX1800 Ceiling Mount WiFi 6 Access Point

$ 78.00 $ 73.00
  • Part Number: EAP613
  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.
  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§
  • Warranty: 3 Years on part.

Specification

  • Part Number: EAP613
  • HARDWARE FEATURES

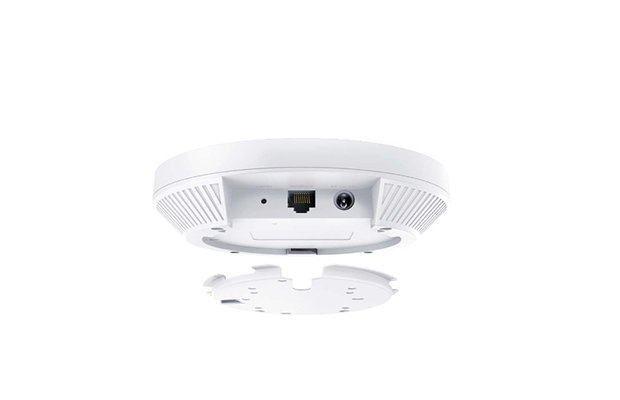

  • Interface: 1× Gigabit Ethernet (RJ-45) Port
  • Button: Reset
  • Power Supply:
  • • 802.3at PoE
  • • 48 V Passive PoE
  • • 12 V / 1 A DC (Power Adapter IS NOT included)
  • Power Consumption: 11.0W (For PoE); 9.9W (For DC)
  • Dimensions ( W x D x H ): V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
  • Antenna Type:
  • -Internal Omni Antenna
  • • 2.4 GHz: 2× 4 dBi
  • • 5 GHz: 2× 5 dBi
  • Mounting:
  • • Ceiling /Wall Mounting (Kits included)
  • • Junction Box Mounting
  • WIRELESS FEATURES
  • Coverage: 115㎡(1250 ft²)***
  • Wireless Client Capacity: 250+**
  • Concurrent Clients: 250+**
  • Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
  • Frequency: 2.4 GHz and 5 GHz
  • Signal Rate:
  • • 5 GHz: Up to 1201 Mbps
  • • 2.4 GHz: Up to 574 Mbps
  • Wireless Functions:
  • • 1024-QAM
  • • 4× Longer OFDM Symbol
  • • OFDMA
  • • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
  • • Enable/Disable Wireless Radio
  • • Automatic Channel Assignment
  • • Transmit Power Control (Adjust Transmit Power on dBm)
  • • QoS(WMM)
  • • MU-MIMO
  • • Seamless Roaming §
  • • Omada Mesh§
  • • Band Steering
  • • Load Balance
  • • Airtime Fairness
  • • Beamforming
  • • Rate Limit
  • • Reboot Schedule
  • • Wireless Schedule
  • • Wireless Statistics based on SSID/AP/Client
  • Wireless Security:
  • • Captive Portal Authentication§
  • • Access Control
  • • Wireless Mac Address Filtering
  • • Wireless Isolation Between Clients
  • • SSID to VLAN Mapping
  • • Rogue AP Detection
  • • 802.1X Support
  • • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power:
  • • CE:
  • <20 dBm(2.4 GHz, EIRP)
  • <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)
  • • FCC:
  • <25 dBm (2.4 GHz)
  • <25 dBm (5 GHz)
  • MANAGEMENT
  • Omada App: Yes
  • Centralized Management:
  • • Omada Cloud-Based Controller
  • • Omada Hardware Controller OC300
  • • Omada Hardware Controller OC200
  • • Omada Software Controller
  • Cloud Access:
  • -Yes, through
  • • OC300
  • • OC200
  • • Omada Software Controller
  • • Omada Cloud-Based Controller
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: v1, v2c, v3
  • System Logging Local/Remote Syslog: Local/Remote Syslog
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes
  • Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller
  • OTHERS
  • Certification: CE, FCC, RoHS
  • Package Contents:
  • • EAP613
  • • Ceiling/ Wall Mounting Kits
  • • Installation Guide
  • Environment:
  • • Operating Temperature: 0–40 ℃ (32–104 ℉)
  • • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • • Operating Humidity: 10–90% RH non-condensing
  • • Storage Humidity: 5–90% RH non-condensing
  • System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
  • Warranty: 3 Years on part.
