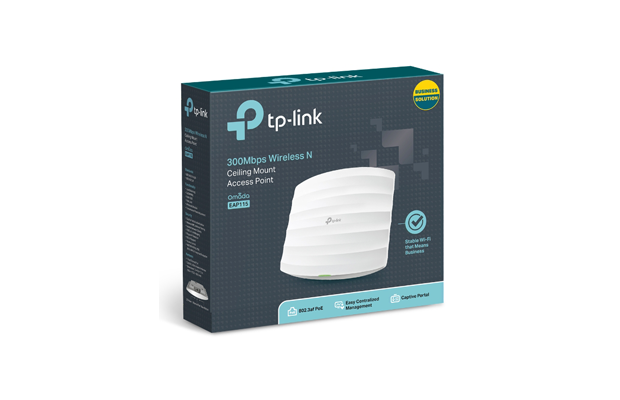

TP-Link EAP115 300Mbps Wireless N Ceiling Mount Access Point

$ 34.00 $ 29.00
  • Part Number: TP-Link EAP115
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralised Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • PoE Support: Supports Power over Ethernet (802.3af/at) for convenient deployment.
  • Easy Installation: Simple mounting design for easy attachment to a wall or ceiling.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Load Balancing: Limit the number of users on each access point and remove devices with weak reception to keep your Wi-Fi running at peak performance.
  • Scheduling: Automatically reboot the access point and turn on or off the Wi-Fi at the time you set.
  • Warranty: 3 Year on part

Specification

  • Interface: Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
  • Button: Reset
  • Power Supply: PoE or external 12VDC/1.0A power supply
  • Power Consumption: 5W
  • Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Dimensions ( W x D x H ): 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
  • Dimensions: 7.5×6.8×1.2 in. (189.4×172.3×29.5mm)
  • Antenna Type: Internal 2* 3dBi Omni
  • Mounting: Ceiling /Wall Mounting (Kits included)
  • Physical Security Lock: Kensington Lock Slot
  • Watch Dog: Yes
  • Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
  • Frequency: 2.4-2.4835GHz
  • 11n: Up to 300Mbps(dynamic)
  • 11g: Up to 54Mbps(dynamic)
  • 11b: Up to 11Mbps(dynamic)
  • 300M: -71dBm@10% PER
  • 150M: -75dBm@10% PER
  • 54M: -78dBm@10% PER
  • 11M: -93dBm@8% PER
  • 6M: -92dBm@10% PER
  • 1M: -96dBm@8% PER
  • Wireless Functions: Multiple SSIDs (Up to 8 SSIDs)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
  • Wireless Security: Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
  • Transmission Power: CE: <20dBm
  • FCC: <26dBm
  • Auranet Controller Software:  Yes
  • Omada Controller Software:  Yes
  • Cluster Mode:  Yes
  • EAP Controller Software
  • Email Alerts:  Yes
  • LED ON/OFF Control:  Yes
  • Management MAC Access Control: Yes
  • SNMP:  v1,v2c
  • System Logging Local/Remote Syslog: Local/Remote Syslog
  • Telnet:  Yes
  • Web-based Management: HTTP/HTTPS
  • Management VLAN:  Yes
  • Certification CE, FCC, RoHS
  • Package Contents 300Mbps Wireless N Ceiling Mount Access Point EAP115
  • Power Adapter
  • Mounting Kits,
  • Installation Guide
  • System Requirements: Microsoft Windows 10/8/7/Vista/XP
  • Environment: Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing
  • Warranty: 3 Year on part.
