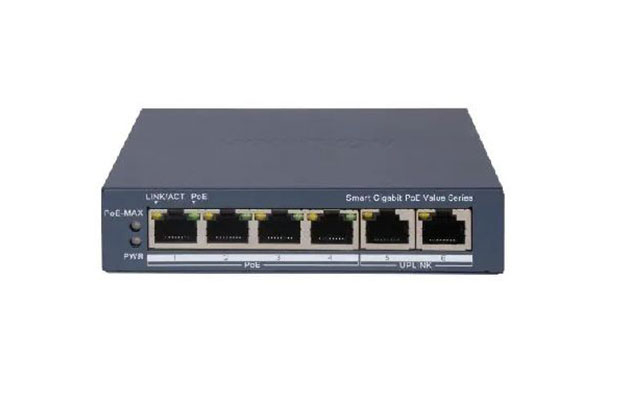

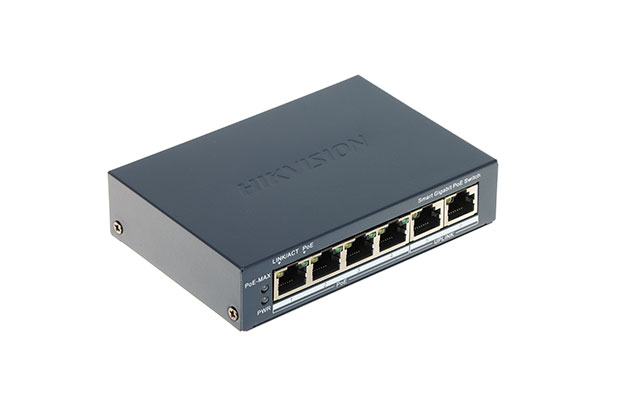

Hikvision DS-3E1506P-EI/M 4-Port Gigabit Smart POE Switch

~~$ 42.00~~ $ 39.00

Part Number: DS-3E1506P-EI/M
4× Gigabit PoE port, 2× Gigabit RJ45 port
Total PoE Power Budget 45W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6KV Surge Protection
Warranty: 1-year on part.

Order Now

Specification

Part Number: DS-3E1506P-EI/M
Network Parameters
Ports: 4× Gigabit PoE port, 2× Gigabit RJ45 port
MAC Address Table: 2 K
Switching Capacity: 14 Gbps
Packet Forwarding Rate: 10.42 Mpps
Internal Cache: 1 Mbits
PoE Power Supply
PoE Standard: IEEE 802.3af,IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+)
PoE Port: PoE: Ports 1 to 4
Max. Port Power: 30 W
PoE Power Budget: 45 W
Software Function
Long Range
Ports 1 to 4: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
Port Isolation
Ports 1 to 4: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog
Ports 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 2 aggregation groups.
Loop Prevention
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
VLAN
VLAN is used for network scale planning and network health improvement.
Support 802.1Q.
Configurable VLAN ID from 1-4094.
Support Trunk, Access port mode.
Support Max. 32 VLAN.
HPP
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Display the port rate.
2. Display the port bandwidth utilization rate.
3. Display the PoE power usage.
4. Display topology information.
5. Display the alarm status.
6. Restart ports and devices.
7. Enable port long-rage mode.
8. Remotely upgrade the device.
System Maintenance
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
Support management via Hik-Central Pro.
Support remote management via Hik-Partner Pro.
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
Supports 802.1ab LLDP for peer device discovery.
Support port mirroring for fault locating.
General
Shell: Metal material
Net Weight: 0.27 kg (0.6 lb)
Gross Weight: 0.77 kg (1.7 lb)
Dimensions (W × H × D): 121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 54VDC, 0.92A
Installation Mode: Desk-Mounted,Wall-Mounted
Max. Power Consumption: 50 W
Power Consumption in Idle: 1.8 W
Surge Protection: 6 KV
Approval
EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Chemistry: Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
