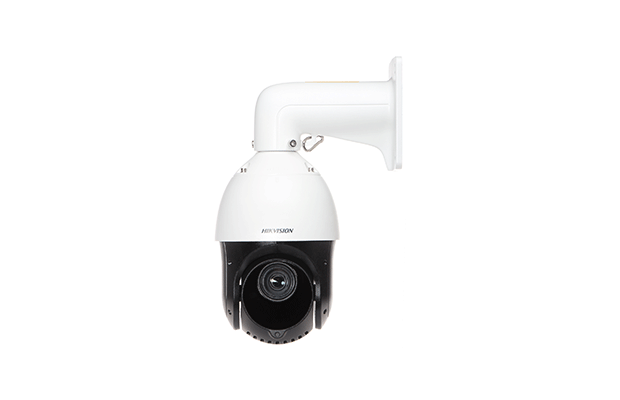

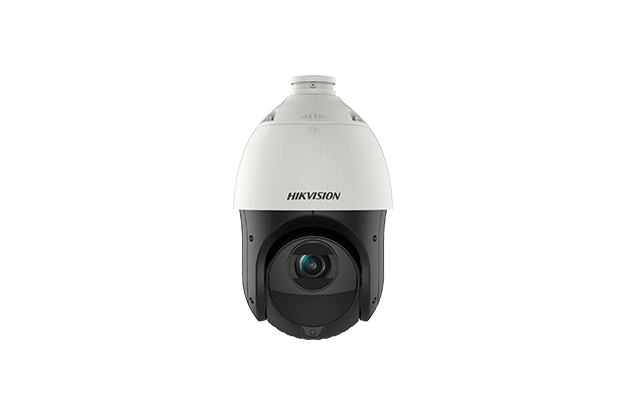

Hikvision DS-2DE4425IW-DE 4-inch 4 MP 25X Powered by DarkFighter IR Network Speed Dome

$ 270.00 $ 259.00
  • Part Number: DS-2DE4425IW-DE(S6)
  • 1/2.8" progressive scan CMOS
  • High quality imaging with 4 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • 25× optical zoom and 16× digital zoom provide close up views over expansive areas
  • WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
  • Expansive night view with up to 100 m IR distance
  • Support H.265+/H.265 video compression
  • Warranty: 1 Year on part.

Specification

  • Part Number: DS-2DE4425IW-DE(S6)
  • Camera
  • Image Sensor: 1/2.8" progressive scan CMOS
  • Min. Illumination: color: 0.005Lux @ (F1.6,AGC ON); B/W: 0.001Lux @ (F1.6,AGC ON);0 Lux with IR
  • Shutter Speed: 1 s to 1/30,000 s
  • Slow Shutter: yes
  • Focus: semi-auto;manual;auto
  • Day & Night: ICR
  • Day/Night Switch: day, night, auto, scheduled-switch
  • BLC: yes
  • WDR: 20 dB WDR
  • HLC: yes
  • 3D DNR: yes
  • Defog: yes
  • EIS: no
  • Regional Exposure: yes
  • Regional Focus: yes
  • Image Settings: saturation;brightness;contrast;sharpness
  • Image Parameters Switch: yes
  • White Balance: MWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
  • Digital Zoom: 16x
  • Optical Zoom: 25x
  • Privacy Mask: up to 24 masks;mask color configurable
  • SNR: >52dB
  • Lens
  • Focal Length: 4.8 mm to 120 mm, 25× Optical
  • Zoom Speed: approx. 3.6 s
  • FOV: Horizontal field of view: 55° to 2.4° (wide-tele),
  • Vertical field of view: 33° to 1.4° (wide-tele),
  • Diagonal field of view: 61.5° to 2.8° (wide-tele)
  • Aperture: F1.6
  • Illuminator
  • IR Distance: 100 m
  • PTZ:
  • Movement Range (Pan): 360°
  • Movement Range (Tilt): -15° to 90° (auto flip)
  • Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
  • Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
  • Proportional Zoom: yes
  • Presets: 300
  • Patrol Scan: 8 patrols, up to 32 presets for each patrol
  • Pattern Scan: 4 pattern scans
  • Power-Off Memory: yes
  • Park Action: preset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
  • 3D Positioning: yes
  • PTZ Status Display: yes
  • Preset Freezing: yes
  • Scheduled Task: preset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output
  • Video
  • Max. Resolution: 2560 × 1440
  • Stream Type: main stream;sub-stream;third stream
  • Main Stream
  • 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream
  • 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
  • Third Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
  • Video Compression: H.265;H.264;MJPEG
  • Video Bit Rate: 32 kbps to 16384 kbps
  • H.264 Type: baseline profile;main profile;high profile
  • H.265 Type: main profile
  • H.264+: yes
  • H.265+: yes
  • SVC: yes
  • ROI: fixed region;main stream, sub-stream and third stream respectively support eight fixed areas
  • Audio
  • Audio Compression: G.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
  • Audio Bit Rate: MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
  • Audio Sampling Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz;PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
  • Environment Noise Filtering: yes
  • Smart Features
  • Basic Event: motion detection;alarm input;alarm output;video tampering alarm;exception
  • Smart Event: intrusion detection;line crossing detection;region entrance detection;region exiting detection;unattended baggage detection;object removal detection;audio exception detection;face detection
  • Smart Record: ANR;Dual-VCA
  • Alarm Linkage: memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP;NAS video recording
  • Network
  • Network Storage: NAS (NFS, SMB/ CIFS)
  • Protocols: IPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;SMTP;RTCP;RTP;ISUP
  • API: ISAPI;Hikvision SDK;Third-party management platform;Open-ended API;Hik-Connect;ISUP;Open Network Video Interface;CGI
  • Simultaneous Live View: 20
  • User/Host: 32
  • Security Measures: Authenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
  • Client: iVMS-4200;Hik-Connect
  • Web Browser: IE10-11, Chrome 57+, Firefox 52+, Safari 12+
  • Interface
  • Communication Interface: RJ45, self-adaptive 10M/100M Ethernet port
  • On-Board Storage: support microSD/microSDHC/microSDXC cards;up to 256 GB
  • Alarm Input: 1 alarm input
  • Alarm Output: 1 alarm output
  • Audio Input: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
  • Audio Output: 1 audio output, line level, impedance: 600 Ω
  • General
  • Power: 12 VDC;PoE (802.3at)
  • Power Consumption And Current: Max. 18 W, including max. 1.6 W for heater and 9 W for IR
  • Operating Conditions: -30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
  • Reset: yes
  • Demist: yes
  • Material: ADC12
  • Dimensions: Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")
  • Approx. 2 kg (4.41 lb.)
  • Approval
  • Protection: IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Warranty: 1 Year on part.
