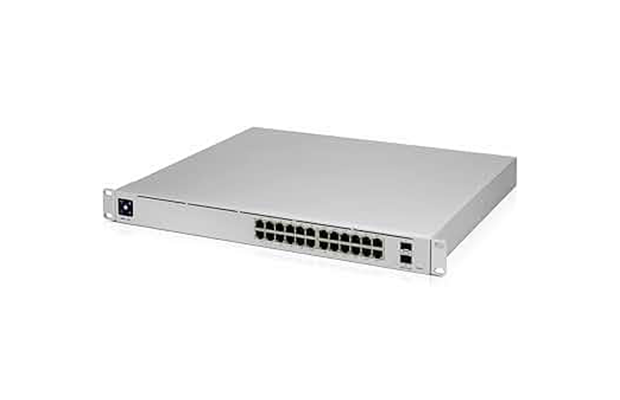

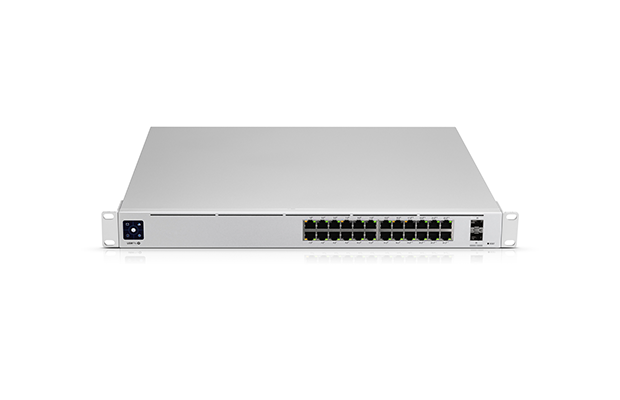

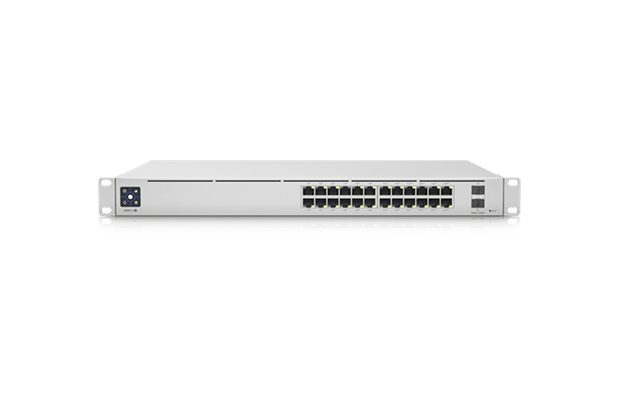

UniFi Switch Pro 24-Port Gigabit (USW-Pro-24)

$ 550.00 $ 539.00
  • Part Number: USW-Pro-24
  • (24) Gigabit ports
  • (2) 10G SFP+ ports
  • DC power backup-ready
  • Layer 3 switching
  • Warranty: 1Year on part.
Order Now

Specification

  • Part Number: USW-Pro-24
  • Mechanical
  • Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7")
  • Weight: Without mounting brackets: 3.5 kg (7.7 lb)
  • With mounting brackets: 3.6 kg (7.9 lb)
  • Enclosure material: SGCC steel
  • Hardware
  • Management interface: Ethernet In-Band
  • Networking interface:
  • - (24) GbE RJ45 ports
  • - (2) 1/10G SFP+ ports
  • Total non-blocking throughput: 44 Gbps
  • Switching capacity: 88 Gbps
  • Forwarding rate: 65.472 Mpps
  • Power method:
  • -(1) Universal input, 100—240V AC, 50/60 Hz
  • -(1) USP-RPS DC input 11.5V DC, 2.61A
  • Power supply: AC/DC, internal, 36W
  • Supported voltage range: 100—240V AC
  • Max. power consumption: 30W
  • ESD/EMP protection: Air: ± 16kV, contact: ± 12kV
  • LCM display: (1) 1.3" touchscreen
  • Button: Factory reset
  • Shock and vibration: ETSI300-019-1.4 Standard
  • Ambient operating temperature: -5 to 45° C (23 to 113° F)
  • Ambient operating humidity: 10 to 90% noncondensing
  • Certifications: CE, FCC, IC
  • Switching Features
  • Layer 2 features:
  • -IGMP snooping
  • -STP / RSTP with priorities and port-level disable
  • -Port isolation
  • -Storm control
  • -Voice VLAN
  • -Port mirroring
  • -LACP port aggregation
  • -Multicast / broadcast rate limiting
  • -MAC address blocking
  • -Flow control
  • -802.1X control
  • -Jumbo frames
  • -Proprietary loop protection
  • -DHCP snooping / guarding
  • -Egress rate limit
  • -LLDP-MED
  • -Port restricted by MAC
  • -Device isolation with ACLs
  • Layer 3 features:
  • -DHCP for locally-managed networks
  • -DHCP: relay
  • -Inter-VLAN routing between networks on same switch
  • -Static routing between local networks
  • -Network isolation with ACLs
  • LEDs
  • System: Status
  • Ethernet: Speed/link/activity
  • SFP+: Speed/link/activity
  • RPS: Status
  • Application Requirements
  • UniFi Network: Version 5.12.11 and later
  • Warranty: 1Year on part.
