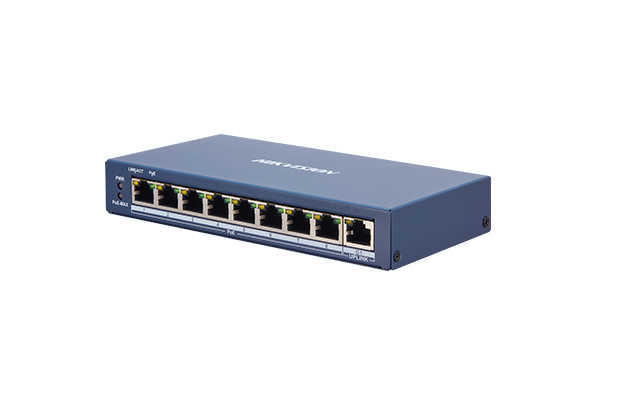

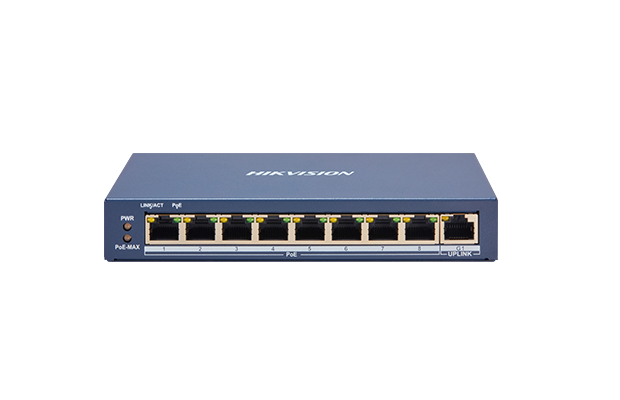

Hikvision DS-3E1309P-EI 8Port Fast Ethernet Smart POE Switch

~~$ 70.00~~ $ 65.00

Part Number: DS-3E1309P-EI
8 Port Fast Ethernet Smart POE Switch
L2, Unmanaged, 8 10/100M RJ45 PoE ports, 1 10/100M RJ45 uplink port
Network topology management, alarm push, network health monitor.
IEEE 802.3af/at, PoE power budget 115W, max. up to 300 m in extend mode.
6KV surge protection
Warranty: 1 Year on part

Order Now

Specification

Part Number: DS-3E1309P-EI
Network Parameters
Ports: 8 × 10/100 Mbps PoE port,1 × 1 Gbps RJ45 port
Port Type: RJ45 port,full duplex,MDIMDI-X adaptive
Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3ab
Working Mode: Standard mode (default),Extend mode
Forwarding Mode: Store-and-forward switching
MAC Address Table: 16 K
Internal Cache: 4 Mbits
Switching Capacity: 3.6 Gbps
Packet Forwarding Rate: 2.6784 Mpps
PoE Power Supply
PoE Standard: IEEE 802.3af,IEEE 802.3at
PoE Power Pin:
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: PoE: Ports 1 to 8
Max. Port Power: 30 W
PoE Power Budget: 110 W
Software Function
Device Maintenance: Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.
Port Configuration: Support port rate configuration, flow control, and ports enabling.
PoE Configuration: PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.
PoE enabling: supported
General
Shell: Metal material, fan-free design
Net Weight: 0.35 kg (0.77 lb)
Gross Weight: 1.114 kg (2.45 lb)
Dimensions (W × H × D): 170.00 mm × 27.60 mm × 93.10 mm (6.69'' × 1.09'' × 3.67'')
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 48 VDC, 2.5 A
Max. Power Consumption: 120 W
Approval
EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety: UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
Warranty: 1 Year on part
