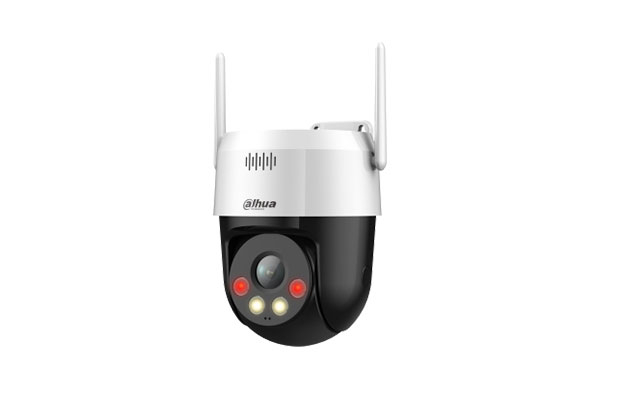

Dahua SD2A200HB-GN-AW-PV-S2 2MP Full-color WIFI Network PT Camera

$ 76.00 $ 71.00
  • Part Number: SD2A200HB-GN-AW-PV-S2
  • 2MP Full-color Network PT Camera
  • 1/2.8" 2Megapixel CMOS.
  • Max. 25/30 fps@1080p.
  • Human detection.
  • Tripwire, intrusion.H.265 encoding.
  • Wi-Fi, Two-way talk.
  • Sound and light alarm.
  • IR and white light, three night view modes.
  • IP66.
  • Warranty: 1-year on part.

Specification

  • Part Number: SD2A200HB-GN-AW-PV-S2
  • Camera
  • Image Sensor: 1/2.8" CMOS
  • Pixel: 2 MP
  • Max. Resolution: 1920 (H) × 1080 (V)
  • ROM: 128 MB
  • RAM: 128 MB
  • Electronic Shutter Speed: 1/3 s–1/100,000 s
  • Scanning System: Progressive
  • Min. Illumination: Color: 0.05 lux@F2.0
  • B/W: 0.005 lux@F2.0
  • 0 lux (IR/white light on)
  • Illumination Distance: 30 m (98.42 ft) (IR), 30 m (98.42 ft) (white light)
  • Illuminator On/Off Control: Manual; auto; off
  • Illuminator Number: 2 (IR light), 2 (White light)
  • Lens
  • Focal Length: 4.0 mm
  • Max. Aperture: F2.0
  • Field of View: H: 86.8°, V: 47.1°, D: 102.2°
  • Close Focus Distance: 0.6 m (1.97 ft)
  • Iris Control: Fixed.
  • DORI Distance:
  • - Detect: 53.6 m (175.85 ft)
  • - Observe: 21.4 m (70.21 ft)
  • - Recognize: 10.7 m (35.10 ft)
  • - Identify: 5.4 m (17.72 ft)
  • PTZ
  • Pan/Tilt Range: Pan: 0° –345°, Tilt: 0° –80°
  • Manual Control Speed: Pan: 0.1°–74°/s, Tilt: 0.1°–36.4°/s
  • Preset Speed: Pan: 62°/s, Tilt: 36.3°/s
  • Preset: 300
  • Power-off Memory: Yes
  • Idle Motion: Preset
  • Smart Event
  • IVS: Tripwire; intrusion
  • Human Detection: Yes
  • Active Deterrence
  • Light Warning: White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low
  • Sound Warning: Sound warning alarm: Customizable Alarm duration: 10 s, 20 s, 30 s
  • Video
  • Video Compression: H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+
  • Streaming Capability: 2 streams
  • Resolution: 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
  • Video Frame Rate
  • Main stream: 1080p/1.3M/720p (1–25/30 fps)
  • Sub stream: D1/CIF (1–25/30 fps)
  • Bit Rate Control: CBR/VBR
  • Video Bit Rate: H264: 256–8192 kbps, H265: 144–5632 kpbs
  • Day/Night: Auto (ICR)/Color/B/W
  • BLC: Yes
  • WDR: DWDR
  • HLC: Yes
  • White Balance: Auto; manual; tracking; indoor; outdoor; sodium lamp; street lamp; natural light
  • Gain Control: Auto; manual
  • Noise Reduction: 2D NR; 3D NR
  • Motion Detection: Yes
  • Image Rotation: 180°
  • S/N Ratio: ≥ 55 dB
  • Audio
  • Audio Compression: PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1
  • Network
  • Network Port: RJ-45 (10/100 Base-T)
  • Wi-Fi: Yes
  • Wi-Fi–Wireless Standard: 802.11n; IEEE802.11b; 802.11g
  • Wi-Fi–Wireless Frequency Range: 2.4 GHz
  • Wi-Fi–Wireless Transmission Rate: 150 Mbps
  • Network Protocol: UDP; FTP; RTMP; IPv6; IPv4; IP Filter; DNS; RTCP; HTTP; NTP; SSL; DHCP; RTP; SMTP; HTTPS; TCP/IP; RTSP; DDNS; ARP
  • Interoperability: CGI; SDK; ONVIF (Profile S&T); P2P
  • Streaming Method: Unicast/Multicast
  • User/Host: 20
  • Storage: Micro SD card (512 GB); FTP
  • Browser
  • E: IE 7 and later versions; Chrome; Firefox; Safari
  • Management Software: DMSS
  • Mobile Client: iOS; Android
  • Certification
  • Certifications: CE:EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000-3-2/EN55024/EN55035/EN62368-1
  • FCC:47 CFR FCC Part15, Subpart B, ANSI C63.4:2014
  • Port
  • Audio Input: 1 channel (built-in mic)
  • Audio Output: 1 channel (built-in speaker)
  • Two-way Audio: Yes
  • Alarm Linkage: Capture; preset; recording; audio; sending email
  • Alarm Event: Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
  • Audio I/O: 1/1
  • Power
  • Power Supply: 12 VDC/1.5 A±10%
  • Power Consumption: Basic: 3.5 W; Max.: 11 W (illuminator + PT + speaker + heating glass)
  • Environment
  • Operating Temperature: =30 °C to +55 °C (–22 °F to +131 °F)
  • Operating Humidity: ≤ 95%
  • Protection: IP66, TVS 2000 V lightning proof; surge protection; voltage transient protection
  • Structure
  • Product Dimensions: 140.5 mm × Φ111.0 mm (5.53" × Φ4.45")
  • Net Weight: 0.5 kg (1.10 lb)
  • Gross Weight: 1 kg (2.20 lb).
