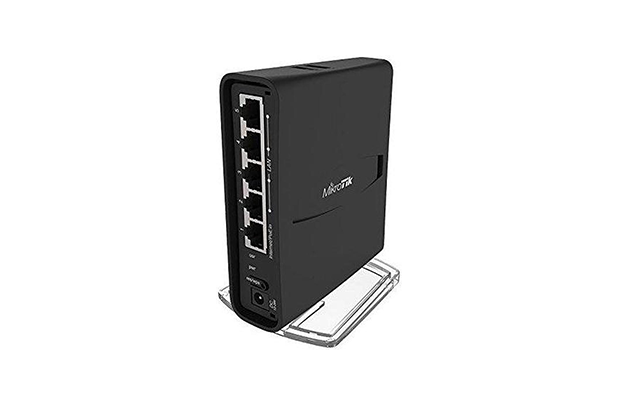

MikroTik RouterBOARD hAP ac²

$ 94.00 $ 89.00
  • Part Number: RBD52G-5HacD2HnD-TC
  • CPU: IPQ-4018
  • CPU core count: 4
  • 10/100/1000 Ethernet ports: 5
  • Number of USB ports: 1
  • Warranty: 1Year on Part.

Specification

  • Part Number: RBD52G-5HacD2HnD-TC
  • Specifications
  • Details
  • Architecture: ARM 32bit
  • CPU: IPQ-4018
  • CPU core count: 4
  • CPU nominal frequency: 716 MHz
  • Switch chip model: IPQ-4018
  • Dimensions: 34 x 119 x 98mm
  • RouterOS license: 4
  • Operating System: RouterOS
  • Size of RAM: 128 MB
  • Storage size: 16 MB
  • Storage type: FLASH
  • MTBF: Approximately 100'000 hours at 25C
  • Tested ambient temperature: -40°C to 50°C
  • IPsec hardware acceleration: Yes
  • Wireless capabilities
  • Details
  • Wireless 2.4 GHz Max data rate: 300 Mbit/s
  • Wireless 2.4 GHz number of chains: 2
  • Wireless 2.4 GHz standards: 802.11b/g/n
  • Antenna gain dBi for 2.4 GHz: 2.5
  • Wireless 2.4 GHz chip model: IPQ-4018
  • Wireless 2.4 GHz generation: Wi-Fi 4
  • Wireless 5 GHz Max data rate: 867 Mbit/s
  • Wireless 5 GHz number of chains: 2
  • Wireless 5 GHz standards: 802.11a/n/ac
  • Antenna gain dBi for 5 GHz: 2.5
  • Wireless 5 GHz chip model: IPQ-4018
  • Wireless 5 GHz generation: Wi-Fi 5
  • WiFi speed: AC1200
  • Ethernet
  • Details
  • 10/100/1000 Ethernet ports: 5
  • Peripherals
  • Details
  • Number of USB ports: 1
  • USB Power Reset: Yes
  • USB slot type: USB type A
  • Max USB current (A): 1
  • Powering
  • Details
  • Number of DC inputs: 2 (DC jack, PoE-IN)
  • DC jack input Voltage: 12-30 V
  • Max power consumption: 21 W
  • Max power consumption without attachments: 16 W
  • Cooling type: Passive
  • PoE in    Passive: PoE
  • PoE in input Voltage: 18-28 V
  • Certification & Approvals
  • Details
  • Certification: CE, FCC, IC, EAC, ROHS
  • IP: IP20
  • Other
  • Details
  • Mode button: Yes
  • Warranty: 1Year on Part.
