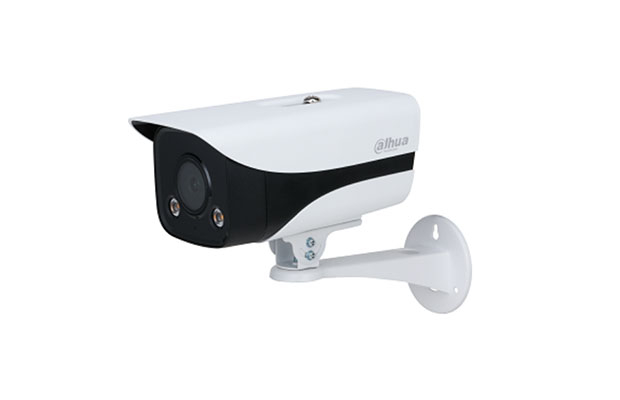

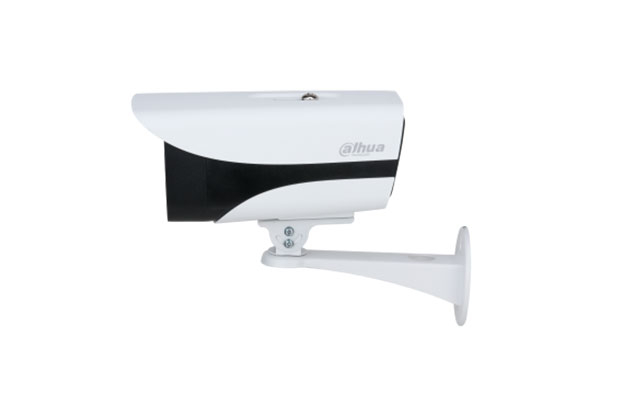

Dahua IPC-HFW2439M-AS-LED-B-S2 4MP Lite Full-color Fixed-focal Bullet Network Camera

~~$ 90.00~~ $ 85.00

Part Number: IPC-HFW2439M-AS-LED-B-S2
4MP, 1/3" CMOS image sensor, low illuminance, high image definition
Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520)@ 20fps
H.265 codec, high compression rate, ultra-low bit rate
Built-in warm lights, max. illumination distance: 40 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire
Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
12V DC/PoE power supply; 12V DC power output, max. current 165mA
IP67 protection
Warranty: 1-year on part.

Order Now

Specification

Part Number: IPC-HFW2439M-AS-LED-B-S2
Camera
Image Sensor: 1/2.8” 2Megapixel progressive CMOS
Max. Resolution: 1920 (H) × 1080 (V)
ROM: 128 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Minimum Illumination: 0.0017 Lux@F1.0
S/N Ratio: > 56 dB
Illumination Distance: 40 m (131.2 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 2 (Warm light)
Lens
Lens Type: Fixed-focal
Mount Type: M12
Focal Length: 3.6 mm & 6 mm
Max. Aperture: 3.6 mm: F1.0 & 6 mm: F1.0
Field of View
3.6 mm: Horizontal 91° × Vertical 47° × Diagonal 109°
6 mm: Horizontal 55° × Vertical 30° × Diagonal 64°
Iris Type: Fixed
Close Focus Distance: 3.6 mm: 1.8 m (5.9 ft), 6 mm: 4.5 m (14.8 ft)
DORI Distance
Lens: 3.6 mm, 6 mm
Detect: 72.0 m (236.2 ft), 120.0m (393.7 ft)
Observe: 28.8 m (94.5 ft), 48.0m (157.5 ft)
Recognize: 14.4 m (47.2 ft), 24.0 m (78.7 ft)
Identify: 7.2 m (23.6 ft), 12.0 m (39.4 ft)
Smart event
General IVS Analytics: Tripwire; intrusion
Video
Video Compression: H.265; H.264; H.264B; MJPEG (only supported by the sub stream)
Smart Codec: Smart H.265+/Smart H.264+
Video Frame Rate
Main stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)Sub stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)
Stream Capability: 2 streams
Resolution: 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control: CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night: Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest(RoI): Yes (4 areas)
Smart Illumination: Yes
Image Rotation: 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution and lower)
Mirror: Yes
Privacy Masking: 4 areas
Audio
Audio Compression: G.711A; G.711Mu; G.726
Alarm
Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception
Network
Network: RJ-45 (10/100 Base-T)
SDK and API: Yes
Cyber Security: Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host: 20 (Total bandwidth: 72 M.)
Storage: Dahua Cloud; FTP; Micro SD card (support max. 256 G); NAS; SFTP
Browser: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Phone: IOS; Android
Certification
Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input: 1 channel (RCA port)
Audio Output: 1 channel (RCA port)
Alarm Input: 2 channels in: 5mA 3V–5V DC
Alarm Output: 2 channels out: 300mA 12V DC
Power
Power Supply: 12V DC/PoE (802.3af)
Power Consumption: < 10.2W
Environment
Operating Conditions: -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH
Storage Temperature: -40°C to +60°C (-40°F to +140°F)
Protection Grade: IP67
Structure
Casing: Metal + plastic
Dimensions: 194.1 mm × 96.4 mm × 89.5 mm (7.6" × 3.8" × 3.5") (L × W × H)
Net Weight: 0.725 kg (1.6 lb)
Gross Weight: 1.215 kg (2.7 lb).
