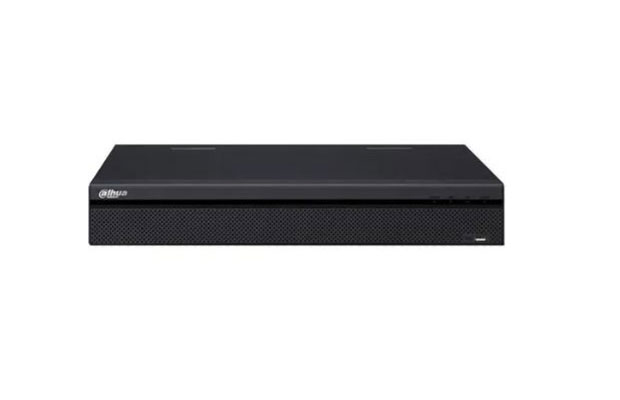

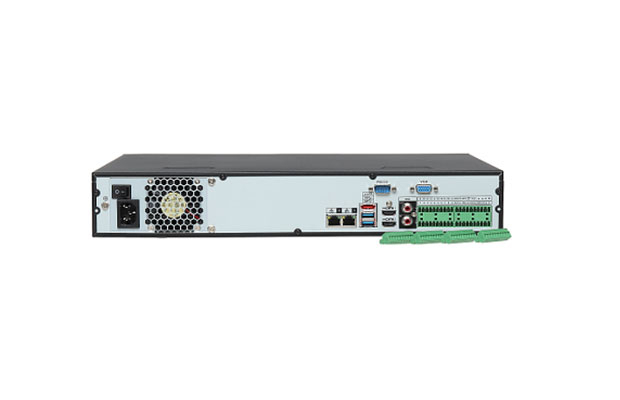

Dahua NVR5464-4KS2 64CH 1U 4HDDs 4K NVR

~~$ 465.00~~ $ 455.00

Part Number: NVR5464-4KS2
16/32/64-channel IP video access
Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
Max 320 Mbps incoming bandwidth
Up to 24MP resolution for live view and playback
1-channel fisheye dewarping (AI by NVR)
AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
Warranty: 1-year on part.

Order Now

Specification

Part Number: NVR5464-4KS2
Technical Specification
Main Processor: Quad-core embedded processor
Operating System: Embedded LINUX
Audio and Video
IP Camera Input: 16/32/64 Channel
Two-way Talk: 1 Channel Input, 2 Channel Output, RCA
Display
Interface: 2 HDMI, 2 VGA
Resolution HDMI1: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 VGA1: 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 HDMI2/VGA2: 1920 × 1080
Decoding Capability: 4-ch@8MP(30fps), 16-ch@1080P(30fps)
Multi-screen Display:
- 1st Screen: 16CH: 1/4/8/9/16
- 32CH: 1/4/8/9/16/25/36
- 64CH: 1/4/8/9/16/25/36/64 2nd Screen: 1/4/8/9/16
OSD: Camera title, Time, Camera lock, Motion detection, Recording
Recording
Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
Resolution: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc.
Bit Rate: 16Kbps ~ 20Mbps Per Channel
Record Mode: Manual, Schedule (Regular, MD(Motion Detection) , Alarm, IVS), Stop
Record Interval: 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, Snapshot, Buzzer and Screen Tips
Video Detection: Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input: 16 Channel
Relay Output: 6 Channel
Playback and Backup
Sync Playback: 1/4/9/16
Search Mode: Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function: Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Backup Selection, Digital Zoom
Backup Mode: USB Device/Network/eSATA Device
Third-party Support
Third-party Support: Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more
Network
Interface: 2 RJ-45 Ports (10/100/1000Mbps) Independent or Joint Working
PoE: N/A
Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P
Max. User Access: 128 users
Smart Phone: iPhone, iPad, Android
Interoperability: ONVIF 2.4, SDK, CGI
Storage Internal: HDD 4 SATA III Ports, Up to 10 TB capacity for each HDD
eSATA: 1 eSATA
Auxiliary Interface
USB: 3 USB Ports (2 Rear USB 3.0 , 1 Front USB 2.0 )
RS232: 1 Port, for PC Communication and Keyboard
RS485: 1 Port, for PTZ Control
Electrical
Power Supply: Single, AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption: <16.7W (Without HDD)
Fan: Smart fan, automatically adjust running speed
Environmental
Operating Conditions: -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions: -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions: 1.5U, 440mm x 411.2mm x 76mm ; (17.3" x 16.2" x 3.0")
Net Weight: 4.3kg (9.5 lb) (without HDD)
Gross Weight: 7kg (15.4 lb) (without HDD)
Installation: Rack-mounted
Certifications
CE: EN55022, EN55024, EN50130-4, EN60950-1
FCC: Part 15 Subpart B, ANSI C63.4-2014
UL UL 60950-1.
