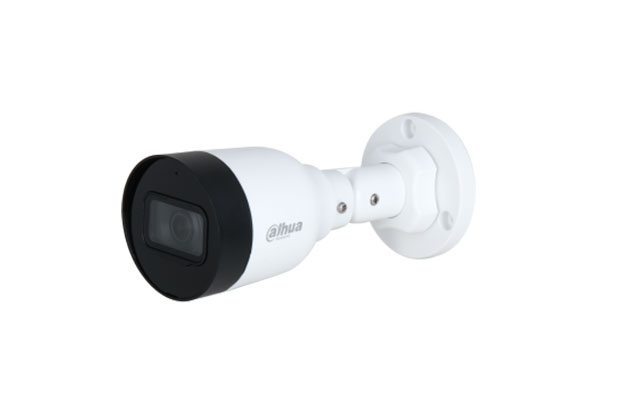

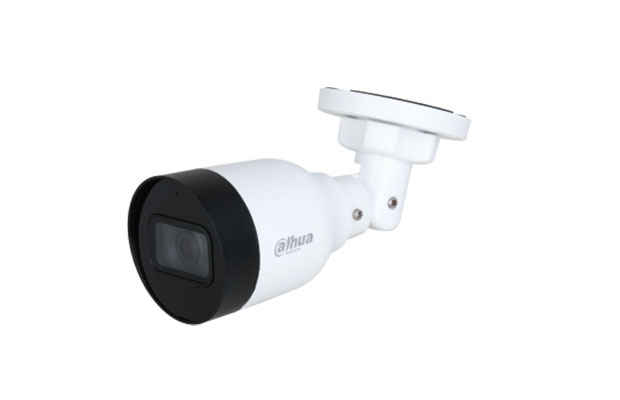

Dahua IPC-HFW1431S1-A-S4 4MP Entry IR Fixed-focal Bullet Network Camera

~~$ 64.00~~ $ 59.00

Part Number: IPC-HFW1431S1-A-S4
1/2.7” 2MP/4MP(WDR)/5MP(Metal) progressive CMOS
H.265& H.264 dual-stream encoding
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
2.8 mm fixed lens (3.6mm optional)
Built-in Mic (audio)
Max IR LEDs Length 30m
IP67, PoE
Warranty: 1-year on part.

Order Now

Specification

Part Number: IPC-HFW1431S1-A-S4
Camera
Image Sensor: 1/2.7" CMOS
Max. Resolution: 2688 (H) × 1520 (V)
ROM: 16 MB
RAM: 128 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
Min. Illumination
0.03 lux@F2.0 (Color, 30 IRE)
0.003 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio: > 56 dB
Illumination Distance: 30 m (98.43 ft) (IR)
Illuminator On/Off Control: Auto; manual
Illuminator Number: 1(IR LED)
Pan/Tilt/Rotation Range
- Pan: 0°–360°
- Tilt: 0°–90°
- Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 2.8 mm; 3.6 mm
Max. Aperture: 2.8 mm: F2.0 & 3.6 mm: F2.0
Field of View:
2.8 mm: Horizontal: 104°; Vertical: 58°; Diagonal: 124°
3.6 mm: Horizontal: 88°; Vertical: 48°; Diagonal: 103°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 0.7 m (2.30 ft) & 3.6 mm: 1.2 m (3.94 ft)
DORI Distance:
Lens: 2.8 mm & 3.6 mm
Detect: 56.0 m (183.73 ft) & 76.0 m (249.34 ft)
Observe: 22.4 m (73.49 ft) & 30.4 m (99.74 ft)
Recognize: 11.2 m (36.75 ft) & 15.2 m (49.87 ft)
Identify: 5.6 m (18.37 ft) & 7.6 m (24.93 ft)
Video
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec: Smart H.265+; Smart H.264+
Video Frame Rate
Main stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability: 2 streams
Resolution
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)
Bit Rate Control: CBR/VBR
Video Bit Rate
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night: Auto (ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control: Auto; manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Smart Illumination: Yes
Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)
Mirror: Yes
Privacy Masking: 4 areas
Audio
Built-in MIC: Yes
Audio Compression: G.711A; G.711Mu; G.726
Alarm
Alarm Event: Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; security exception
Network
Network Port: RJ-45 (10/100 Base-T)
SDK and API: Yes
Cyber Security: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; trusted boot; trusted execution; trusted upgrade
Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast
Interoperability: ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host: 6 (Total bandwidth: 36 M)
Storage: FTP
Browser: IE
Chrome: Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Client: iOS; Android
Certification
Certifications: CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply: 12 VDC/PoE (802.3af)
Power Consumption: Basic: 1.9 W (12 VDC); 2.9 W (PoE)
Max. (ICR + H.265 + IR intensity): 3.8 W (12 VDC); 5 W (PoE)
Environment
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity: ≤ 95%
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Protection: IP67
Structure: Casing
Metal + plastic
Product Dimensions: 162.6 mm × 70 mm× 70 mm (6.40" × 2.76"× 2.76") (L × W × H)
Net Weight: 0.22 kg (0.5 lb)
Gross Weight: 0.34 kg (0.7 lb).
