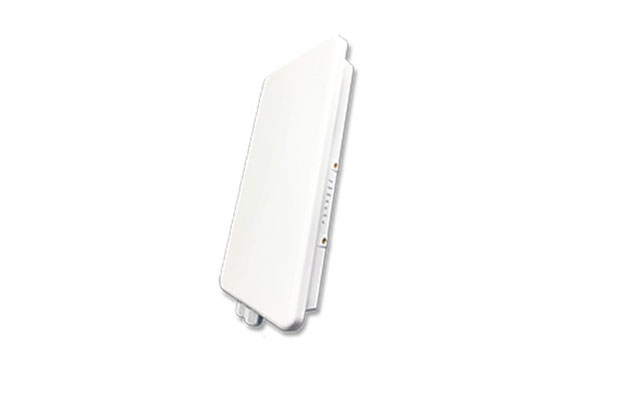

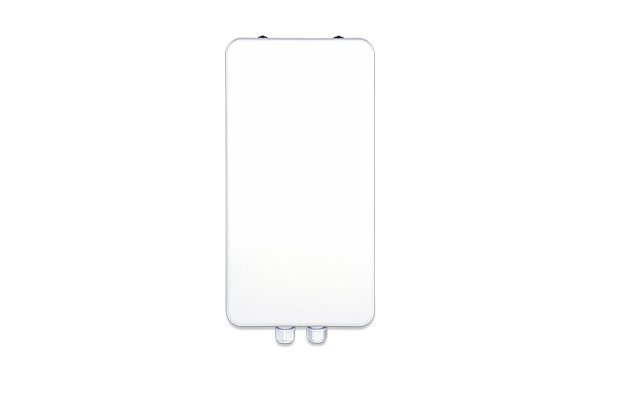

Edgecore OAP100-EU Wi-Fi 5 Outdoor Access Point
$ 638.00
$ 628.00
Part Number: OAP100-EU
802.11ac Wave2
Concurrent Dual-Band 2.4GHz & 5GHz
2x2:2 UL MU-MIMO
Support BLE
Support LTE (optional)
1x GbE PoE WAN
Warranty: 1-Year on part.
Order Now
Specification
Part Number: OAP100-EU
Channelization: 20 MHz, 40 MHz, 80 MHz
Frequency Band: 2.412- 2.472 GHz, 5.180- 5.825GHz
RF Output Power*1: 2.4GHz Up to 25 dBm*2; 5GHz Up to 21 dBm*2 (*1 RF output power aggregates across MIMO chains and doesn't contain antenna gain; *2 Maximum power is limited by local regulatory requirements)
Radio Chains: 2x2:2
PoE: 802.3at compliant
Deployment: Standalone, Tunneled management by Edgecore EWS Gateway-Controller, IPv4 & IPv6 compatible, LLDP
Configuration: Web User Interface (HTTP / HTTPS), SNMP v1, v2c, v3
Mounting: Pole mount
Power Consumption: 27.1W max.
DC input: 10-24V DC (DC terminal block)
Bandwidth Management: Per User; WDS
Option 1: Built-in 2.4GHz Omni, 5GHz Directional with Azimuth 30° & Elevation 20°
Wireless Security: WEP, WPA / WPA2 Mixed (TKIP/AES Mixed), WPA2-Personal (AES), WPA2-Enterprise (AES)
Uplink (PoE In): 1x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with 802.3at PoE
LAN (PoE Out): 1x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with 802.3af PoE
Weight: 2.10kg (4.63 lbs).
