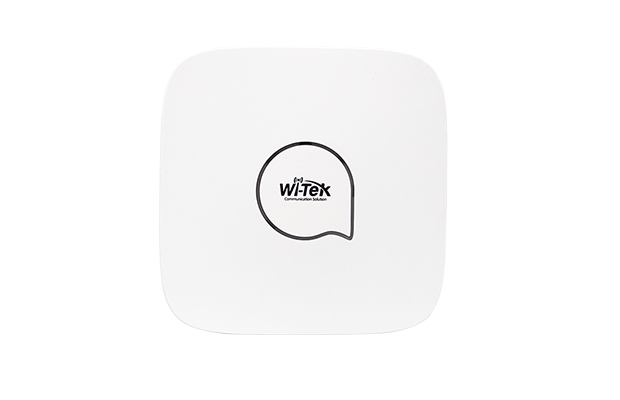

Wi-Tek WI-AP218AX-Lite 1800Mbps Wireless Ceiling Mount Access Point

~~$ 104.00~~ $ 99.00

Part Number: WI-AP218AX-Lite
1800Mbps Wireless Ceiling Mount Access Point
2x Gigabit Ethernet ports
1.8Gbps WiFi 6 Speeds
574Mbps at 2.4GHz + 1201Mbps at 5GHz
Support fast roaming technology
Support Fit/Fat working mode
Support AP controller and cloud management
Warranty: 2-years on Parts.

Order Now

Specification

Hardware Specifications
Wireless Standards IEEE 802.11ax/ac wave2/wave1/n/b/g/a
Operating Bands 2.4GHz & 5GHz
Antenna 2.4Ghz:4.6dBi, 5GHz: 4dBi
Spatial Streams 2.4GHz：2×2 MIMO, 5GHz：2×2 MIMO
Signal Rate: Up to 574Mbps at 2.4GHz, Up to 1201Mbps at 5GHz
Receiver Sensitivity
2.4GHz
802.11b: -85dBm@11M -92dBm@1M
802.11g: -72dBm@54M -90dBm@6M
802.11n HT20: -70dBm@MCS7 -88dBm@MCS0
802.11n HT40: -68dBm@MCS7 -86dBm@MCS0
802.11ax HT20:-60dBm@MCS11 -85dBm@MCS0
802.11ax HT40: -56dBm@MCS11 -85dBm@MCS0
5GHz:
802.11a: -72dBm@54M -92dBm@6M
802.11n HT20: -70dBm@MCS7 -90dBm@MCS0
802.11n HT40: -68dBm@MCS7 -88dBm@MCS0
802.11ac HT20: -70dBm@MCS7 -90dBm@MCS0
802.11ac HT40: -68dBm@MCS7 -88dBm@MCS0
802.11ac HT80: -58dBm@MCS9 -85dBm@MCS0
802.11ax HT20: -62dBm@MCS11 -88dBm@MCS0
802.11ax HT40: -58dBm@MCS11 -86dBm@MCS0
802.11ax HT80: -55dBm@MCS11 -84dBm@MCS0
Maximum Transmit Power <22dBm

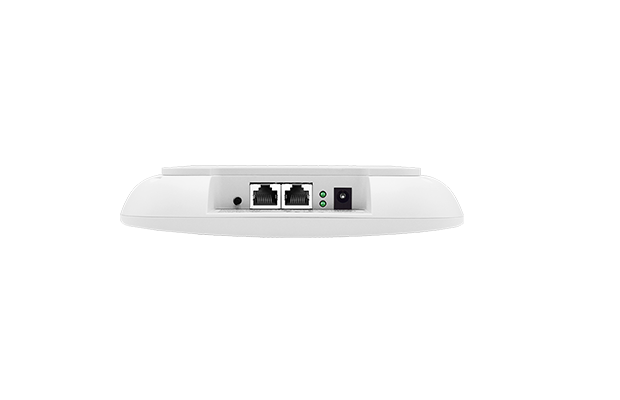

Interface: (2)10/100/1000M Base-T Ethernet ports
Power Supply: DC 12V/1.5A (Not Included), 802.3af PoE Supported, Power Consumption < 15W
Installation: Wall/Ceiling Mounting
External Buttons: reset button (long press for 8 seconds to restore the factory default configuration)
Dimensions 188mm * 188mm * 50mm
Environment
Operating Temperature:-20°C ~ 45°C
Storage Temperature:-40°C ~ 70°C;
Operating Humidity: 5% ~ 95% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)
Software
Operating Mode Fit AP, Fat AP
Wireless Function: Up to 16 SSIDs, Support SSID hiding, Enable/Disable Wireless Radio, Manual and automatic channel assignment, Manual and automatic bandwidth assignment, TxPower control
Roaming: Support Layer 2 roaming
Wireless Security: Captive portal authentication, Static blacklist and whitelist, Wireless isolation between clients, SSID to VLAN mapping, Support 802.1X, WPA/WPA2/PSK/WPA/WPA2-Enterprise/WPA3
Internet Connection Type: Support static IP, DHCP, PPPoE Dial-Up
Management
Support local management with web
Support centralized management with AC
Support remote management with the Wi-Tek cloud platform
Platform Management Features Automatic RF adjustment via the platform, Unified configuration via the platform, Unified monitoring via the platform
