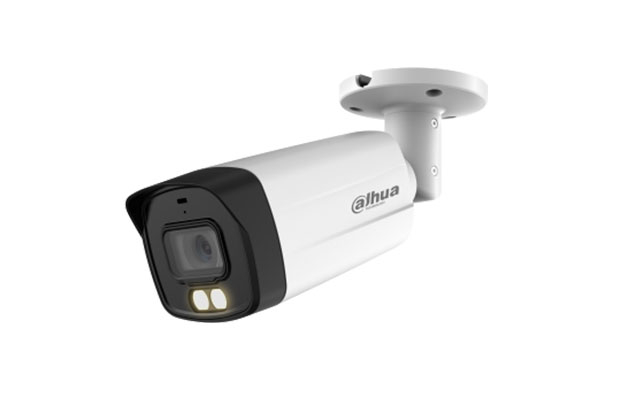

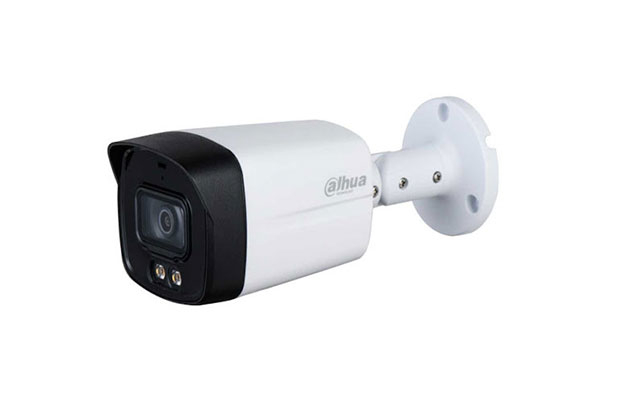

Dahua HAC-HFW1239TMP-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera

~~$ 44.00~~ $ 40.00

Part Number: HAC-HFW1239TMP-IL-A
Smart Dual Light
Max. 30 fps@1080p
Smart Light+
Smart Area Lighting.
40 m illumination distance
Super Adapt, 130 dB true WDR, 3D NR
Built-in Mic
3.6 mm fixed lens (2.8 mm optional)
CVI/CVBS/AHD/TVI switchable
IP67, 12 VDC
Warranty: 1-Year on part.

Order Now

Specification

Part Number: HAC-HFW1239TMP-IL-A
Camera
Image Sensor: 2 MP CMOS
Max. Resolution: 1920 (H) × 1080 (V)
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
Min. Illumination: 0.0005 lux@F1.0 (Color, 30 IRE); 0.00005 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio: >65 dB
Illumination Distance: 40 m (131.23 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 4 (Multi-core light)
Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Lens Mount: M12
Focal Length: 3.6 mm; 2.8 mm
Max. Aperture: F1.0
Field of View: 2.8 mm: H: 101.8°; V: 54.4°; D: 122.1° & 3.6 mm: H: 84.2°; V: 45.3°; D: 98.9°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 1.1 m (3.61 ft) & 3.6 mm: 1.6 m (5.25 ft)
DORI Distance Lens: 2.8 mm, 3.6 mm
DORI Distance Detect: 45.6 m ( 149.61 ft), 55.6 m ( 182.41 ft)
DORI Distance Observe: 18.2 m ( 59.71 ft), 22.2 m ( 72.83 ft)
DORI Distance Recognize: 9.1 m ( 29.86 ft), 11.1 m ( 36.42 ft)
DORI Distance Identify: 4.6 m ( 15.09 ft), 5.6 m ( 18.37 ft)
Video
Video Frame Rate
CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
CVBS: PAL: 960H; NTSC: 960H
Resolution: 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night: Auto(ICR)/Color/B/W
BLC: BLC; HLC; WDR
WDR: 130 dB
White Balance: Auto;Area white balance
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Motion Detection: Yes
Illumination Mode: Smart IR&WL; WL Mode; IR Mode
Mirror: Yes
Privacy Masking: Off/On (8 areas, rectangle)
Pick-up Distance: 8 m (26.25 ft)
Certification
Certifications: CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;
Audio
Built-in Mic: Yes
Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Power
Power Supply: 12 VDC ± 30%
Power Consumption: Max 7 W (12 VDC, LED on)
Environment
Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity: <95% (RH), non-condensing
Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity: <95% (RH), non-condensing
Protection: IP67
Anti-corrosion Level: Basic Protection
Structure
Casing Material: Metal
Product Dimensions: 240.8 mm × 80.2 mm × 90.7 mm (9.48" × 3.16" × 3.57") (L × W × H)
Net Weight: 0.67 kg (1.48 lb)
Gross Weight: 0.88 kg (1.94 lb)
Installation: Wall mount; ceiling mount; vertical pole mount
