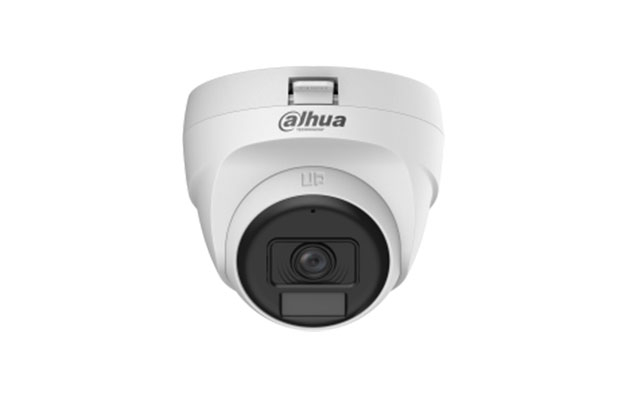

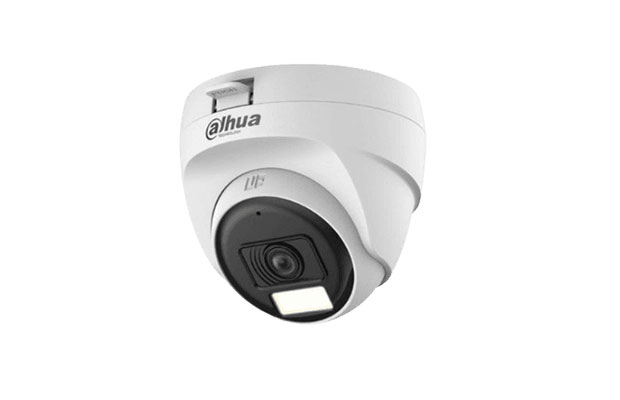

Dahua HAC-T1A51P-U-IL-A 5MP HDCVI IR Eyeball Camera

~~$ 30.00~~ $ 27.00

Part Number: HAC-T1A51P-U-IL-A
Max 25 fps@5MP (16:9 video output).
Smart Dual Light.
25 m illumination distance.
Built-in Mic.
Quick-to-install eyeball saves installation time.
3.6 mm fixed lens (2.8 mm optional).
CVI/CVBS/AHD/TVI switchable.
Warranty: 1-Year on part.

Order Now

Specification

Part Number: HAC-T1A51P-U-IL-A
Camera
Image Sensor: 5 MP CMOS
Max. Resolution: 2880 (H) × 1620 (V)
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
Min. Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio: >65 dB
Illumination Distance: IR: 25 m (82.02 ft); Warm Light: 20 m (65.62 ft)
Illuminator On/Off Control: Auto/Manual
Illuminator Number: 2 (Warm light);2 (IR light)
Angle Adjustment: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type: Fixed-focal
Auto Focus: No
Lens Mount: M12
Focal Length: 2.8 mm;3.6 mm
Max. Aperture: F2.0
Field of View: 2.8 mm: H: 106°; V: 56°; D: 125°, 3.6 mm: H: 92°; V: 48°; D: 109°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 1.0 m (3.28 ft), 3.6 mm: 1.3 m (4.27 ft)
DORI Distance Lens: 2.8 mm, 3.6 mm
DORI Distance Detect: 66.0 m(216.54 ft), 76.0 m (249.34 ft)
DORI Distance Observe: 26.4 m (86.61 ft), 30.4 m (99.74 ft)
DORI Distance Recognize: 13.2 m (43.31 ft), 15.2 m (49.87 ft)
DORI Distance Identify: 6.6 m (21.65 ft), 7.6 m (24.93 ft)
Video
Video Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps
TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps
CVBS: PAL: 960H; NTSC: 960H
Resolution: 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night: Auto(ICR)/Color/B/W
BLC: BLC; HLC; DWDR;
WDR: DWDR
White Balance: Auto;Area white balance
Gain Control: Auto
Noise Reduction: 2D NR
Illumination Mode: Smart IR&WL; WL Mode; IR Mode
Mirror: Yes
Privacy Masking: Off/On (8 areas, rectangle)
Certification
Certifications: CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035
Port
Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input: One channel built-in Mic
Power
Power Supply: 12 VDC ± 30%
Power Consumption: Max 2.6W (12V DC, WLED on)
Environment
Operating Temperature: –40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity: <95% (RH), non-condensing
Storage Temperature: –40 °C to +55 °C (–40 °F to +131 °F)
Storage Humidity: <95% (RH), non-condensing
Anti-corrosion Level: Basic Protection
Structure
Casing Material: Plastic
Product Dimensions: Φ85.0 mm × 77.1 mm (Φ3.35" × 3.04")
Net Weight: 0.11 kg (0.24 lb)
Gross Weight: 0.12 kg (0.26 lb)
Installation: Wall mount; ceiling mount;
