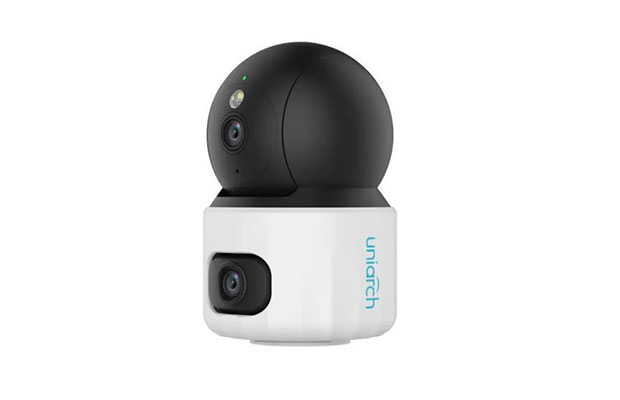

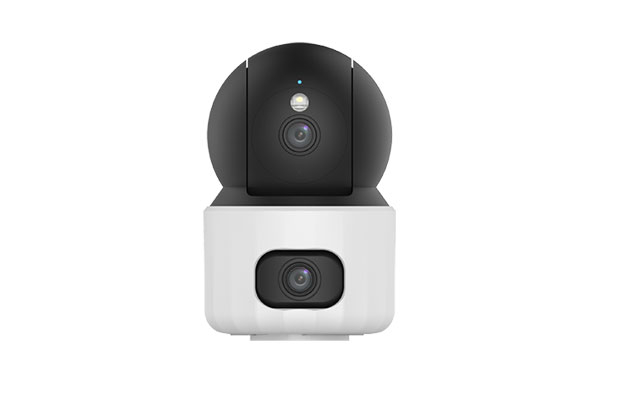

Uniarch Uho-S3S-M33D 3MP+3MP HD Indoor Dual-lens PT Wi-Fi Camera

~~$ 58.00~~ $ 53.00

Part Number: Uho-S3S-M33D
Fixed camera and PT camera integration, dual channels with one IP, look at overall situation and consider details at the same time
Ultra 265, H.265, H.264
Support digital WDR (Wide Dynamic Range)
Built-in Mic & Speaker, support two-way audio, offer better interaction
Support sound and light warning, makes warning and alarming more noticeable
Smart IR, up to 10m (33ft) IR and 10m (33ft) warm light distance, suitable for more scenes
IR & warm light illumination to deal with different scenes and achieve full-color illumination
Supports 512 GB Micro SD card
Wi-Fi connection and easy installation
Warranty: 1-year on part.

Order Now

Specification

Part Number: Uho-S3S-M33D
Camera
Sensor: 1/2.8" progressive scan, 3.0 megapixel, CMOS + 1/2.8" progressive scan, 3.0 megapixel, CMOS
Min. Illumination: Color:0.01 lux (F2.0,AGC ON) + 0 lux with IR Color:0.01 lux (F2.0,AGC ON); 0 lux with IR
Day/Night: IR-cut filter with auto switch (ICR) + IR-cut filter with auto switch (ICR)
Shutter: Auto/Manual, shutter time: 1s ~ 1/100000s
WDR: DWDR
S/N: >52dB
Lens
Lens type: 4.0mm@F2.0 4.0mm@F2.0
Digital Zoom: N/A, 4X
Iris: Fixed + Fixed
Field of View (H): 91.5°+ 91.5°
Field of View (V): 48.1°+ 48.1°
Field of View (D): 96.3°+ 96.3°.
DORI
DORI Distance Lens (mm): 4.0 mm + 4.0 mm
DORI Distance Detect (m): 73.5 (241.0ft) + 73.5 (241.0ft)
DORI Distance Observe (m): 29.4 (96.4ft) + 29.4 (96.4ft)
DORI Distance Recognize (m): 14.7 (48.2ft) + 14.7 (48.2ft)
DORI Distance Identify (m): 7.3(24.1ft) + 7.3(24.1ft)
Illuminator
IR Range: Up to 10m (33ft): Up to 10m (33ft)
Warm Light Range: N/A+ Up to 10m (33ft)
Wavelength: 850nm
IR On/Off Control: Auto/Manual
Video
Video Compression: Ultra 265, H.265, H.264
Frame Rate: Main Stream: 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps;
Sub Stream: 640*360, Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps;
Main Stream: 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; 720P (1280*720), Max 15fps;
Sub Stream: 640*360, Max 15fps; 2CIF(704*288), Max 15fps; CIF(352*288), Max 15fps;
Video Bit Rate 128 Kbps~2048 Kbps
ROI: Up to 8 areas
Video Stream: Dual streams
OSD: Up to 4 OSDs
Privacy Mask: Support(Only NVR)
White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction: 2D/3D DNR
Smart IR: Support
Flip: Normal/Flip Vertical/Flip Horizontal/180°
HLC: N/A
BLC: N/A
Defog: Digital Defog
Events
Basic Detection: Motion detection, Ultra motion detection (pedestrian/motor vehicle/pet), Loud Sound Detection, Crying detection, Tampering alarm
Auto tracking: N/A+ Support
General Function: IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio Compression: G.711U, G.711A
Audio Bitrate: 64 Kbps
Two-way Audio: Support
Suppression: Support
Sampling Rate: 8 kHz
Storage
Edge Storage: Micro SD, up to 512 GB
Network Storage: ANR
Network
Wi-Fi: 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols: IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible Integration: API
Client: Uniarch Client; Uniarch APP
Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Wi-Fi
Wireless Standards: IEEE802.11b/g/n/ax
Frequency Range: 2.4GHz~2.4835GHz
Channel Bandwidth: 20/40 MHz Support
Modulation Mode: 802.11b: CCK; 802.11g/n: OFDM; 802.11ax: OFDMA
Security: 64/128-bitWEP,WPA-PSK/WPA2-PSK
Transmit Power:
- 802.11b: 17±1.5dBm @11Mbps
- 802.11g: 16±1.5dBm @ 54Mbps
- 802.11n: 16±1.5dBm @MCS7
- 802.11ax: 16±1.5dBm @MCS9
Receive Sensitivity:
- 802.11b: -76dBm @11Mbps (Typical)
- 802.11g: -65dBm @54Mbps (Typical)
- 802.11n: -61dBm @MCS7,HT40(Typical)
- 802.11ax: -54dBm @MCS9,HE40(Typical)
Transmission Rate:
- 802.11b: 11Mbps
- 802.11g: 54Mbps
- 802.11n: up to 150Mbps
- 802.11ax: up to 270Mbps
Pan & Tilt
Pan Range: N/A; 0° ~ 355°
Pan Speed: N/A; 17°/s ~ 50°/s
Preset speed: N/A; Preset speed: 50°/s
Tilt Range: 0° ~ 15°; -15° ~ 90°
Tilt Speed: N/A; 17°/s ~ 50°/s
Preset speed: N/A: Preset speed: 50°/s
Number of Presets: 20
Interface
Built-in Mic: Support
Built-in Speaker: Support
Wi-Fi: Support

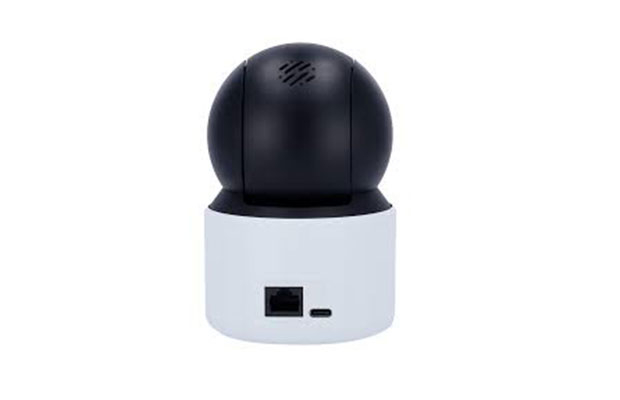

Network: 1*RJ45 10M/100M Base-TX Ethernet
Certifications
EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
RF: FCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety: CE LVD (EN 62368-1)
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
General
Power: DC 5V/1.5A, USB type-C interface
Working Environment: -10℃~50℃(-14°F ~ 122°F), Humidity: ≤95% RH (non-condensing)
Storage Environment: -10℃~50℃(-14°F ~ 122°F), Humidity: ≤95% RH (non-condensing)
Surge Protection: N/A
Reset Button: Support
LED indicator: 1, red/blue
Dimensions (Ø x H): Φ80 x 127mm (Ø3.1” x 4.8”)
Weight: 0.22kg(0.49lb).
