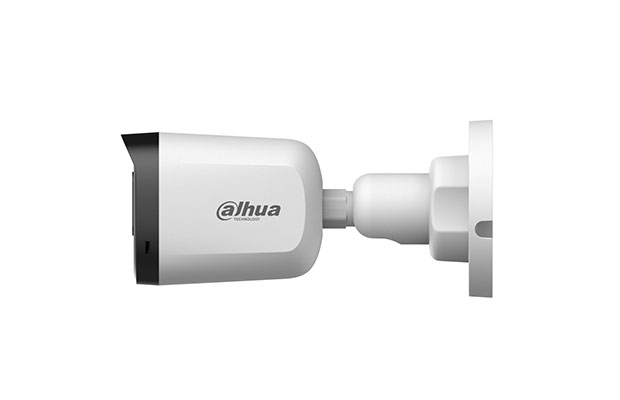

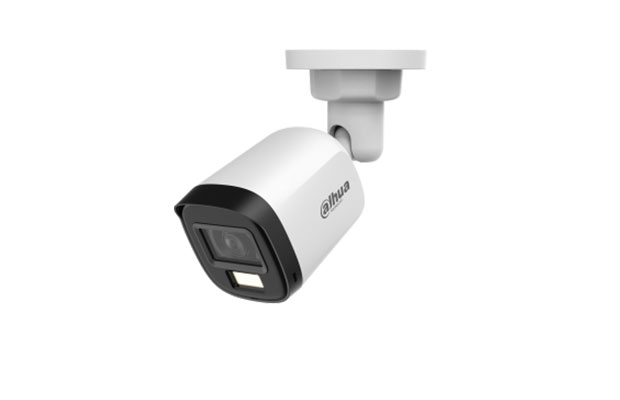

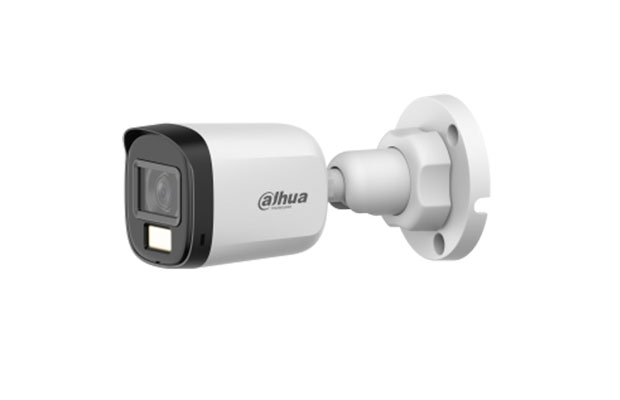

Dahua HAC-B1A21P-U-IL-A 2MP Smart Dual Light HDCVI Fixed-focal Bullet Camera

$ 22.00 $ 19.00
  • Part Number: HAC-B1A21P-U-IL-A
  • Max. 30 fps@1080p.
  • Smart Dual Light.
  • 30 m illumination distance.
  • Built-in MIC.
  • 3.6 mm fixed lens (2.8 mm,6 mm optional).
  • CVI/CVBS/AHD/TVI switchable.
  • IP67, 12 VDC.
  • Warranty: 1-Year on part.
Order Now

Specification

  • Part Number: HAC-B1A21P-U-IL-A
  • Camera
  • Image Sensor: 2 MP CMOS
  • Max. Resolution: 1920 (H) × 1080 (V)
  • Scanning System: Progressive
  • Electronic Shutter Speed: PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
  • Min. Illumination: 0.02 lux@F2.0 (Color, 30 IRE); 0.002 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
  • S/N Ratio: >65 dB
  • Illumination Distance: IR: 30 m (98.43 ft); Warm light: 20 m (65.62 ft)
  • Illuminator On/Off Control: Auto; Manual
  • Illuminator Number: 2 (Warm light);2 (IR light)
  • Angle Adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
  • Lens
  • Lens Type: Fixed-focal
  • Lens Mount: M12
  • Focal Length: 2.8 mm; 3.6 mm; 6 mm
  • Max. Aperture: F2.0
  • Field of View: 2.8 mm: H: 100°; V: 54°; D: 117°, 3.6 mm: H: 80°; V: 43°; D: 94°, 6 mm: H: 43°; V: 24°; D: 50°
  • Iris Control: Fixed
  • Close Focus Distance: 2.8 mm: 0.5 m (1.64 ft); 3.6 mm: 0.8 m (2.62 ft); 6 mm: 2.4 m (7.87 ft)
  • DORI Distance:
  • DORI Distance Lens: 2.8 mm, 3.6 mm, 6 mm
  • DORI Distance Detect: 44.7 m (146.65 ft), 55.0 m (180.45 ft), 102.9 m (337.60 ft)
  • DORI Distance Observe: 17.9 m (58.73 ft), 22.0 m (72.18 ft), 41.1 m (134.84 ft)
  • DORI Distance Recognize: 8.9 m (29.20 ft), 11.0 m (36.09 ft), 20.6 m (67.59 ft)
  • DORI Distance Identify:4.5 m (14.76 ft), 5.5 m (18.04 ft), 10.3 m (33.79 ft)
  • Video
  • Video Frame Rate
  • CVI:
  • PAL: 1080p@25 fps
  • NTSC: 1080p@30 fps
  • AHD:
  • PAL: 1080p@25 fps
  • NTSC: 1080p@30 fps
  • TVI:
  • PAL: 1080p@25 fps
  • NTSC: 1080p@30 fps
  • CVBS:
  • PAL: 960H
  • NTSC: 960H
  • Resolution: 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
  • Day/Night: Auto(ICR)/Color/B/W
  • BLC: BLC; HLC; DWDR
  • WDR: DWDR
  • White Balance: Auto;Area white balance
  • Gain Control: Auto;Manual
  • Noise Reduction: 2D NR
  • Illumination Mode: Smart IR&WL; WL Mode; IR Mode
  • Mirror: Yes
  • Privacy Masking: Off/On (8 areas, rectangle)
  • Certification
  • Certifications: CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035
  • Port
  • Video Output: Video output choices of CVI/TVI/AHD/CVBS by one BNC port
  • Audio Input: One channel built-in Mic
  • Power
  • Power Supply: 12 VDC ± 30%
  • Power Consumption: Max 3.3 W (12 VDC, LED on)
  • Environment
  • Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
  • Operating Humidity: <95% (RH), non-condensing
  • Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
  • Storage Humidity: <95% (RH), non-condensing
  • Protection: IP67
  • Anti-corrosion Level: Basic Protection
  • Structure
  • Casing Material: Plastic
  • Product Dimensions: 146.1 mm × 70.0 mm × 69.8 mm (5.75" × 2.76" × 2.75")
  • Net Weight: 0.15 kg (0.33 lb)
  • Gross Weight: 0.23 kg (0.51 lb)
  • Installation: Wall mount; ceiling mount; vertical pole mount
